Gencol.f File Reference

Go to the source code of this file.

Functions/Subroutines
program	__gencol.f__
subroutine	init
subroutine	epreadmediaformuon
subroutine	checkenergy
subroutine	checkptcls
subroutine	cbtype2cos (btype, code, subc, charge)
subroutine	readinpfile (eof)
subroutine	formpjtg (confirm)
subroutine	outresula (a, ntp)
subroutine	gencol (a, ntp)
subroutine	epgencolbymuon
subroutine	epgencolbyphoton (plab, tA, tZ, a, ntp)
subroutine	cutbyangle (a, ntp0, ntp)
subroutine	sortbyke (a, ntp)
subroutine	outtrace (nev, a, ntp)
subroutine	puttrace (x1, a, leng)
subroutine	outresulb (a, ntp)
subroutine	outresulc (a, ntp)
subroutine	outresulx (a, ntp)

Function/Subroutine Documentation

__gencol.f__()

program __gencol.f__

(

)

Definition at line 9 of file Gencol.f.

References softenpik::csoftenfe(), cutbyangle(), formpjtg(), softenpik::fwbw, gencol(), init(), inpfileno, j, outresul(), outresula(), outresulb(), outresulc(), outresulx(), outtrace(), readinpfile(), and sortbyke().

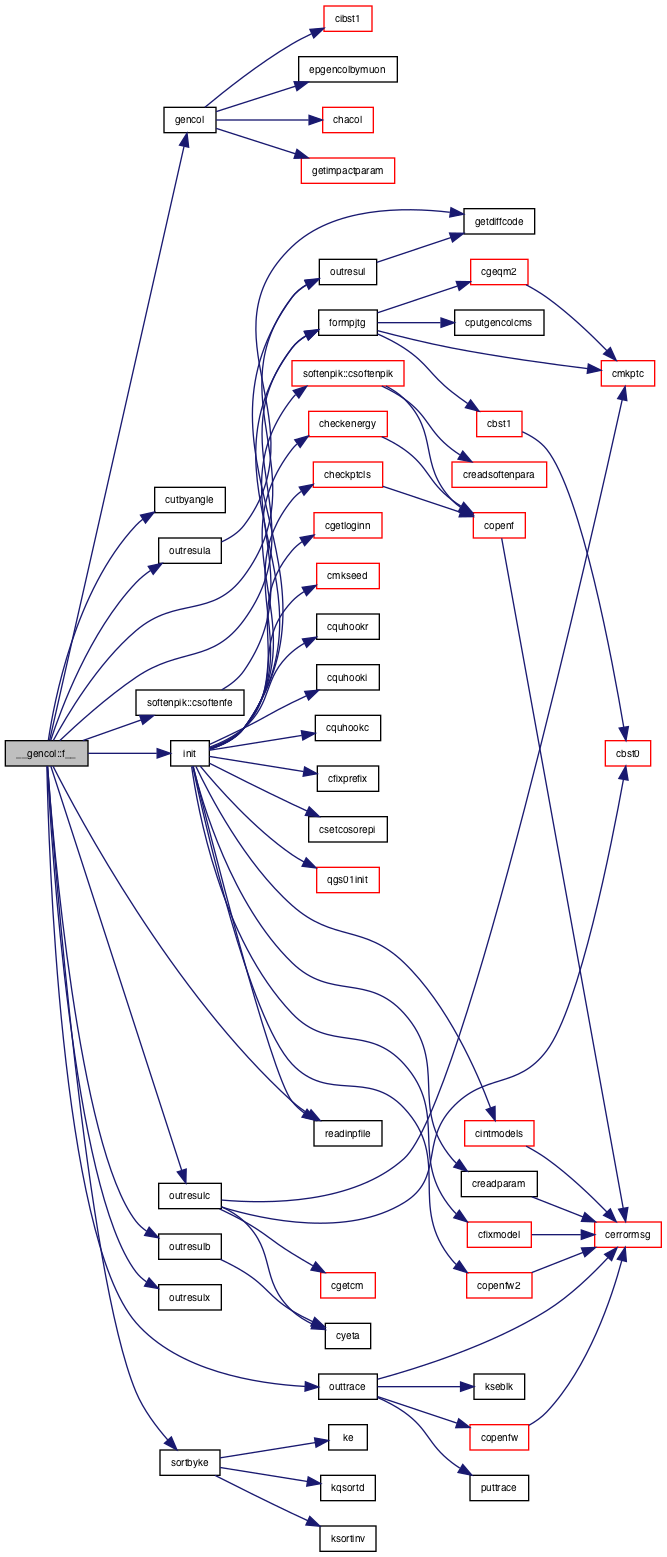

Here is the call graph for this function:

cbtype2cos()

subroutine cbtype2cos	(	character(8), intent(in)	btype,
		integer, intent(out)	code,
		integer, intent(out)	subc,
		integer, intent(out)	charge
	)

Definition at line 358 of file Gencol.f.

References kkaon, klambda, knuc, kphoton, and kpion.

Referenced by checkptcls().

      implicit none
#include "Zcode.h"
      character(8),intent(in):: btype
      integer,intent(out):: code, subc, charge

      select case(btype)
         case("PROTON")
           code = knuc
           charge = 1
           subc = -1
        case("APROTON")
           code = knuc
           charge = -1
           subc = 1
        case("PHOTON")
           code = kphoton
           charge = 0
           subc = 0
        case("NEUTRON")
           code = knuc
           charge = 0
           subc = -1
        case("ANEUTRON")
           code = knuc
           charge = 0
           subc = 1
        case("PION+")
           code = kpion
           charge = 1
           subc = -1
        case("PION-")
           code = kpion
           charge = -1
           subc = 1
        case("KAON+")
           code = kkaon
           charge = 1
           subc = -1
        case("KAON-")
           code = kkaon
           charge = -1
           subc = 1
        case("LAMBDA")
           code = klambda
           charge = 0
           subc = -1
        case("ALAMBDA")
           code = klambda
           charge = 0
           subc = 1
        case("PIZERO")
           code = kpion
           charge = 0
           subc = 0
        case default
           write(0,*) ' not acceptable ptcl=',btype
           stop
        end select
!     'KAONSHRT' ,
!     &'SIGMA-  ' , 'SIGMA+  ' , 'SIGMAZER' , 'PIZERO  ' , 'KAONZERO' ,
!     &'AKAONZER'

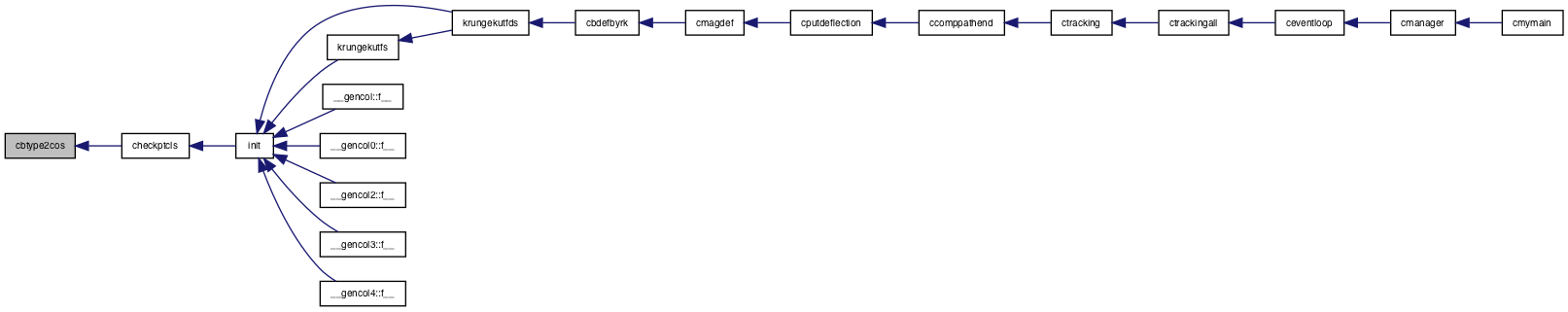

Here is the caller graph for this function:

checkenergy()

subroutine checkenergy

(

)

Definition at line 200 of file Gencol.f.

References copenf(), kgnuc, kphoton, ksplit(), and true.

Referenced by init().

      implicit none
#include "Zptcl.h"
#include "Zprivate.h"
#include "Zcode.h"
      integer icon

      character(80):: input
      character(8):: bb(3)
      integer:: nr
      real(8):: einput

      if( pj%code == kphoton ) then
         if( tg%code == kgnuc ) then
            if( pj%fm%p(4) < 7. ) then
               write(0,*)
     *         'photon E must be >= 7 for A target'
               stop
            endif
         else
            if( pj%fm%p(4) < 6. ) then
               write(0,*)
     *         'photon E must be >= 6 for non-A target'
               stop
            endif
         endif
      endif

      call copenf(11, "dpmjet.inp", icon)
      if(icon /= 0 ) then
         write(0,*) ' dpmjet.inp  cannot be opened'
         stop
      endif
      do while(.true.)
         read(11,'(a)') input
         call ksplit(input,8, 3, bb, nr)
         if( bb(1) == "ENERGY") then
            read(bb(2),*) einput
            write(0,*) "ENERGY in dpmjet.inp =",  einput
            if( einput < labequive) then
               write(0,*) " is  too small; give a value"
               write(0,*) "little bit larger than ",labequive
               write(0,*) "   if taget is A, ~1.5 % "
               write(0,*) "   if taget is p/n, very little"
                  write(0,*)
     *           "E.g ",labequive*1.001, " with ~ 4 digit accuracy"
                  stop
!            elseif( Einput > LabEquivE*1.002 ) then
            elseif(  tg%code == kgnuc .and.
     *              einput > labequive*1.040 ) then
               write(0,*) " is  too large; give a vlaue"
               write(0,*) "little bit larger than ",labequive
               write(0,*)
     *           "E%g ",labequive*1.03, " with ~ 4 digit accuracy"
               stop
            elseif( tg%code /= kgnuc .and.
     *             einput > labequive*1.002 )  then
               write(0,*) " is  too large; give a vlaue"
               write(0,*) "little bit larger than ",labequive
               write(0,*)
     *           "E%g ",labequive*1.001, " with ~ 4 digit accuracy"
               stop
            else
               write(0,*) " is close to ", labequive, " and OK"
            endif
            close(11)
            exit
         endif
      enddo

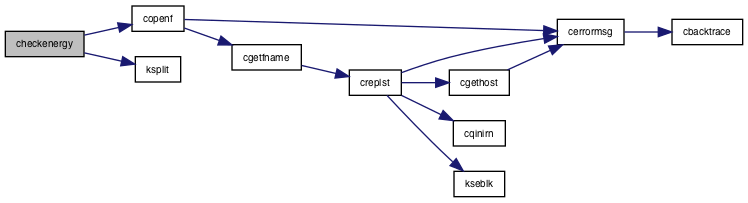

Here is the call graph for this function:

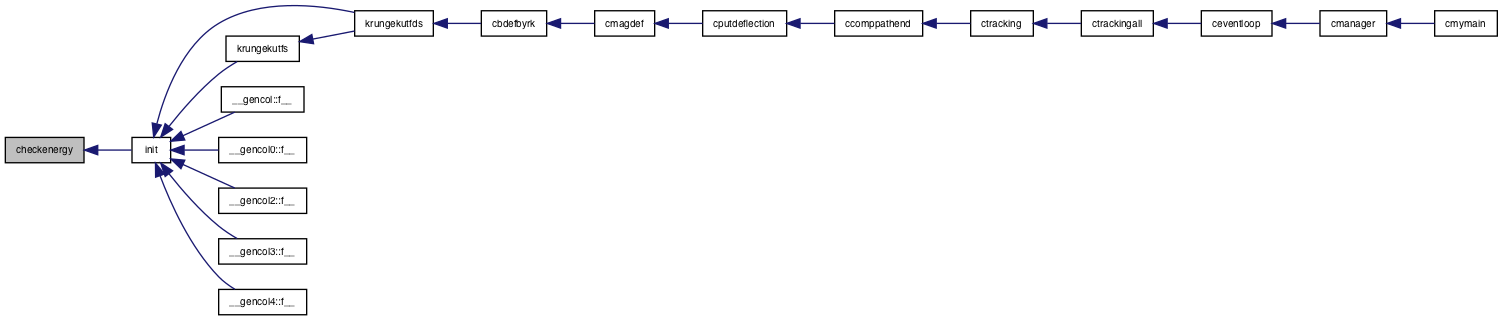

Here is the caller graph for this function:

checkptcls()

subroutine checkptcls

(

)

Definition at line 271 of file Gencol.f.

References cbtype2cos(), copenf(), knuc, ksplit(), and true.

Referenced by init().

!       check projectile and target  ;
!       Are they same in param and dpmjet.inp ?
      implicit none
#include "Zptcl.h"
#include "Zprivate.h"
#include "Zcode.h"
      integer icon

      character(80):: input
      character(8):: bb(5)
      integer:: nr
      character(8)::btype
      integer code, subc, charge

      call copenf(11, "dpmjet.inp", icon)
      if(icon /= 0 ) then
         write(0,*) ' dpmjet.inp  cannot be opened'
         stop
      endif
      do while(.true.)
         read(11,'(a)', end=100) input
         call ksplit(input,8, 5, bb, nr)

         if( bb(1) == "PROJPAR") then
            if( nr == 2 ) then
               btype=bb(2)
               call cbtype2cos(btype, code, subc, charge)
               if( code /= pj%code  .or. charge /= pj%charge ) then
                     ! subcode not checked
                  write(0,*)
     *                 ' projectile mismatch bw dpmjet.inp and param'
                  write(0,*) ' dpmjet.inp :', btype
                  write(0,*) ' param: ',  pj%code, pj%charge
                  stop
               endif
            elseif( nr == 3 ) then
               read( bb(2), *) subc
               read( bb(3), *) charge
               if( subc > 1 ) then
                  if( subc /= pj%subcode .or. charge /= pj%charge ) then
                     write(0,*) 'proj  mismatch bw dpmjet.inp and param'
                     stop
                  endif
               else
                  if( pj%code /= knuc .and. charge /= pj%charge ) then
                     write(0,*) 'proj  mismatch bw dpmjet.inp and param'
                     stop
                  endif
               endif
            endif
         elseif(bb(1) == "TARGETPAR") then
            if( nr == 2 ) then
               btype=bb(2)
               call cbtype2cos(btype, code, subc, charge)
               if( code /= tg%code  .or. charge /= tg%charge ) then
                     ! subcode not checked
                  write(0,*)
     *         ' target mismatch bw dpmjet.inp and param'
                  write(0,*) ' dpmjet.inp :', btype
                  write(0,*) ' param: ',  tg%code, tg%charge
                  stop
               endif
            elseif( nr == 3 ) then
               read( bb(2), *) subc
               read( bb(3), *) charge
               if( subc > 1 ) then
                  if( subc /= tg%subcode .or. charge /= tg%charge ) then
                     write(0,*)
     *                  'target mismatch bw dpmjet.inp and param'
                     stop
                  endif
               else
                  if( tg%code /= knuc .and. charge /= tg%charge ) then
                     write(0,*)
     *                  'target mismatch bw dpmjet.inp and param'
                     stop
                  endif
               endif
            endif
         endif
      enddo
 100  continue
      close(11)
      write(0,*)
     *  ' proj targ consistency btw dpmjet.inp and param: OK'

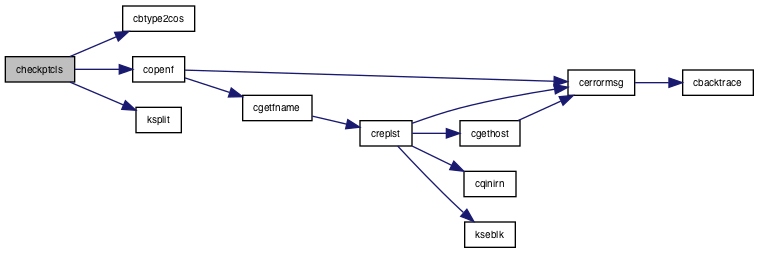

Here is the call graph for this function:

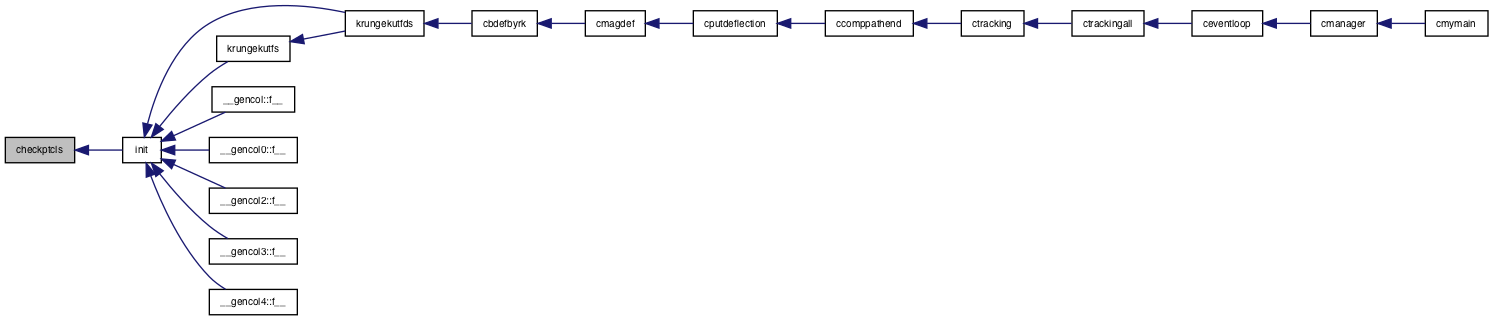

Here is the caller graph for this function:

cutbyangle()

subroutine cutbyangle	(	type (ptcl), dimension(*)	a,
		integer	ntp0,
		integer	ntp
	)

Definition at line 727 of file Gencol.f.

References a, and wzmax.

Referenced by __gencol.f__(), __gencol0.f__(), __gencol2.f__(), __gencol3.f__(), and __gencol4.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnv.h"
#include  "Zevhnp.h"
#include  "Zmanagerp.h"
      include "Zprivate.h"
      type(ptcl)::  a(*)
      integer ntp0 ! input. number of ptcls. in a
      integer ntp  ! output. could be the same as ntp0
      integer j
      integer  i
      real*8 p, wz
      j = 0
      do i = 1, ntp0
         p = a(i)%fm%p(1)**2 + a(i)%fm%p(2)**2 +
     *       a(i)%fm%p(3)**2
         p = sqrt(p)
         wz = a(i)%fm%p(3)/p
         if( wz .ge. wzmin .and. wz .le. wzmax ) then
            j = j + 1
            a(j)=a(i)
         endif
      enddo
      ntp = j

Here is the caller graph for this function:

epgencolbymuon()

subroutine epgencolbymuon

(

)

Definition at line 647 of file Gencol.f.

Referenced by gencol().

      implicit none
!      call epInfoPhotoP(incGp);  incGpをHowPhotopに焼き直し
!      call ep2cosCond
!      call cfixModel( cTrack.p )
!      call ciniSmpIntL   ! not related.
!      call epsmpNEPIntL(Media(MediaNo))  !st decay length only
!      call ep2cosCondr  !set FromEpics = .false.
!  if(   cTrack.p.fm.p(4) .gt.  Media(MediaNo).cnst.muNEmina )
!      call epmuNsmpP( Media(MediaNo),
!     *    cTrack.p.fm.p(4), prob, path)
!      epfixProc    !  ProcessNo
!
!      epmuinte:
!       call epmuNsmpE(Media(MediaNo), Move.Track.p.fm.p(4),
!     *                   Et)
!      cTrack.p.fm.p(4) = cTrack.p.fm.p(4) - Et -->muon
!        if(Et .gt. 152.d-3) then
!            if(Media(MediaNo).mu.MuNI .eq. 3 ) then
!c             generate gamma-N interaction; employ gamma interaction
!c             routine
!               cTrack.p.fm.p(4) = Et
!               call cmkptc( kphoton, 0, 0, cTrack.p)
!               call epe2p(cTrack) ! adjust momentum
!c
!               call ep2cosPtcl( cTrack.p )
!c                 for small basic cross section case.
!               call epfixTarget2(ActiveMdl, Media(MediaNo))
!               call ep2cosCond2(Media(MediaNo).colA,
!     *                          Media(MediaNo).colZ)
!               call cphotop     ! Cosmos function
!         call eppushPtcl(cTrack) ! use pos. info from this ptcl

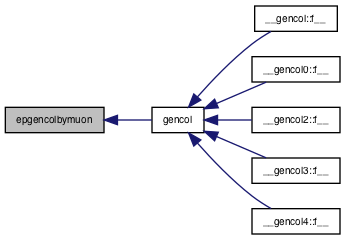

Here is the caller graph for this function:

epgencolbyphoton()

subroutine epgencolbyphoton	(	type (ptcl)	plab,
		integer, intent(in)	tA,
		integer, intent(in)	tZ,
		type (ptcl), dimension(*)	a,
		integer, intent(out)	ntp
	)

Definition at line 682 of file Gencol.f.

References a, cgpxsec(), and cphotop().

      implicit none
!  #include  "Zcode.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"
#include  "Zelemagp.h"

!       include "Zprivate.h"

      type(ptcl):: plab  ! input proj. in Lab
      integer,intent(in):: ta   ! target A
      integer,intent(in):: tz   ! target Z
      type(ptcl):: a(*)        ! ouptut. produced ptcl
      integer,intent(out):: ntp ! # of produced ptcls

      real(8):: targeta, xs
      if( howphotop > 0 .and.  plab%fm%p(4) > minphotoprode ) then
!         call ep2cosCond
!         call cfixModel( pj )
!         call cgpXsec(Media(MediaNo).A,  E, xs)
!         prob = xs*Media(MediaNo).mbtoPX0
!         call rndc(u)
!         tgp = -log(u)/prob
!　　　−ーーーーーーーーーーー above is probably not needed

!////         call ep2cosPtcl(plab)
!         call epfixTarget2(ActiveMdl, Media(MediaNo))
!         call ep2cosCond2(Media(MediaNo).colA,
!       *         Media(MediaNo).colZ, Media(MediaNo).colXs)
         targeta= ta
         call cgpxsec(targeta,  plab%fm%p(4), xs)
!////         call ep2cosCond2(tA, tZ, xs)   ! xs will not be used
         call cphotop        ! Cosmos function
!!         call eppushPtcl(cTrack)  ! puch Cosmos made  ptcl into Epics
         a(1:nproduced) = pwork(1:nproduced)
         ntp = nproduced
      else
         write(0,*) ' HowPhotoP=', howphotop, ' Eg=', plab%fm%p(4)
         write(0,*) ' Either of above NG for photon projectile'
         stop
      endif

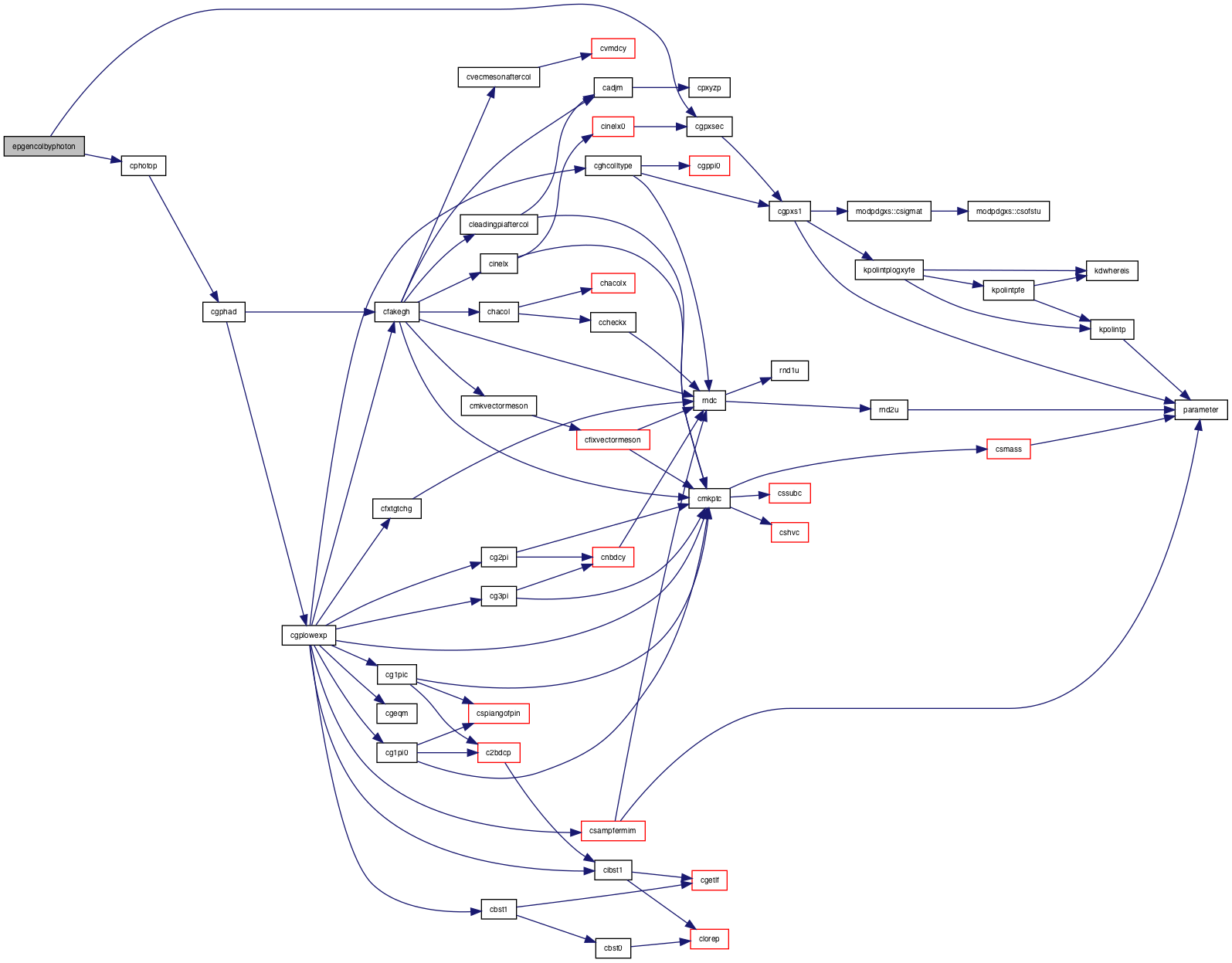

Here is the call graph for this function:

epreadmediaformuon()

subroutine epreadmediaformuon

(

)

Definition at line 173 of file Gencol.f.

#include  "Zcode.h"
#include  "Zptcl.h"

      include  "Zprivate.h"
      integer icon

      if( targetname /= " " ) then
         mediano = 1
!ccc         call eprdMFile(targetName, icon)  !!////////////
         if( icon /= 0 ) then
            write(0,*) " targetName =", targetname
            write(0,*) " not acceptable "
            stop
         endif
      else
         write(0,*) " projectile code =", plab%code, "= muon"
         write(0,*) "   In this case, media name of the target must"
         write(0,*) " follow the target partcile momentum, e.g,"
         write(0,*) " UserHookc = '1  -1 0   0. 0     500',"
         write(0,*) "             '9  16 8   0  0   0. LiqO2',"
         write(0,*) "             "
         stop
      endif

formpjtg()

subroutine formpjtg

(

integer

confirm

)

Definition at line 443 of file Gencol.f.

References cbst1(), cgeqm2(), cmkptc(), cputgencolcms(), kgnuc, pjcode, pjpx, pjpy, pjsub, tgcode, tgpx, tgpy, and tgsub.

Referenced by __gencol.f__(), __gencol0.f__(), __gencol2.f__(), __gencol3.f__(), __gencol4.f__(), and init().

!     ******************
      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanager.h"
#include  "Zmanagerp.h"
#include  "Ztrackp.h"

      include "Zprivate.h"
      type(ptcl)::resttg, zcmsp, zplab
      integer confirm  !  input. if 0, root s is  not printed.
                      !         else  printed
      real*8   roots, s
!         form projectile  and target
      integer::icon

      call cmkptc(pjcode, pjsub, pjchg,   pj)
!       pjmnum:    proj. mass number in integer
      if(pjcode .ne. kgnuc) then
         pjmnum = 1
      else
         pjmnum = pjsub
      endif
      pj%fm%p(1) = pjpx*pjmnum     ! total mom.
      pj%fm%p(2) = pjpy*pjmnum
      pj%fm%p(3) = pjpz*pjmnum
      pj%fm%p(4) =
     *     sqrt(pj%fm%p(1)**2 + pj%fm%p(2)**2 + pj%fm%p(3)**2
     *     + pj%mass**2)

!       make taget (rest or moving -z or ...)
      call cmkptc(tgcode, tgsub, tgchg, tg)
      if(tgcode .ne. kgnuc) then
         tgmnum = 1
      else
         tgmnum = tgsub
      endif
      tg%fm%p(1) = tgpx*tgmnum   ! total mom.
      tg%fm%p(2) = tgpy*tgmnum
      tg%fm%p(3) = tgpz*tgmnum
      tg%fm%p(4) =
     *     sqrt(tg%fm%p(1)**2 + tg%fm%p(2)**2 + tg%fm%p(3)**2
     *   +   tg%mass**2)
!
      if(tgpx .eq. 0. .and. tgpy .eq. 0. .and.
     *        tgpz .eq. 0.)  then
!     target is at rest;  s = (Ep+Et)^2 - (Pp+Pt)^2
!                           = (Ep+Mt)^2 - Pp^2
!                           =  Mp^2 +2EpMt +Mt^2
!
         s= 2*pj%fm%p(4)*tg%mass +tg%mass**2 + pj%mass**2
      else
!         by  general formula;
!               Mp^2 + Mt^2 +2(Ep*Et - Pp.Pt)
         s = pj%mass**2 + tg%mass**2 +
     *       2*(pj%fm%p(4)*tg%fm%p(4) -
     *         dot_product(pj%fm%p(1:3), tg%fm%p(1:3) ) )
      endif
      roots = sqrt(s)
!      if(confirm .ne. 0) then
         write(0, *) ' roots/2=', roots/2
         write(0, *) 's,roots above are total not by /n'
!      endif
!c           boost to target rest system
      call cbst1(1, tg, pj, plab)
!         make rest target
      call cbst1(2, tg, tg, resttg)
       !   get /n cms
      call cgeqm2(plab, resttg, cmsp, icon)
!////////////
      write(0,*) ' Cmsp= (/n)',cmsp%fm%p(:), cmsp%mass
      write(0,*) ' plab=',plab%fm%p(4)
      write(0,*) ' tg=', tg%fm%p(4)
!///////////
      if(icon /= 0 ) then
         write(0,*) ' input 2 ptcls cannot form CMS'
         stop
      endif

!       Next part  will be used only by EPOS
!       get equiv. CMS particle (Zcmsp) when projectile Pt is 0.
!       If crossing angle is /= 0, Cmsp and Zcmsp
!       differ and we must use Zcmsp here!!!!.   2016/01/24
      zplab = plab
      zplab%fm%p(1:2) = 0.
      zplab%fm%p(3) = sqrt( zplab%fm%p(4)**2- zplab%mass**2)
       !   get /n cms
      call cgeqm2(zplab, resttg, zcmsp, icon)
!         inform Zcmsp to cintModels.f
!      call cputGencolCMS(Cmsp)
      call cputgencolcms(zcmsp)

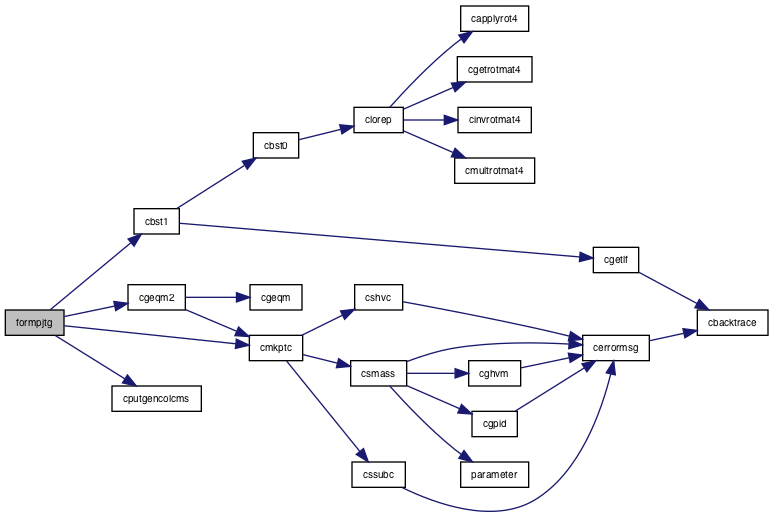

Here is the call graph for this function:

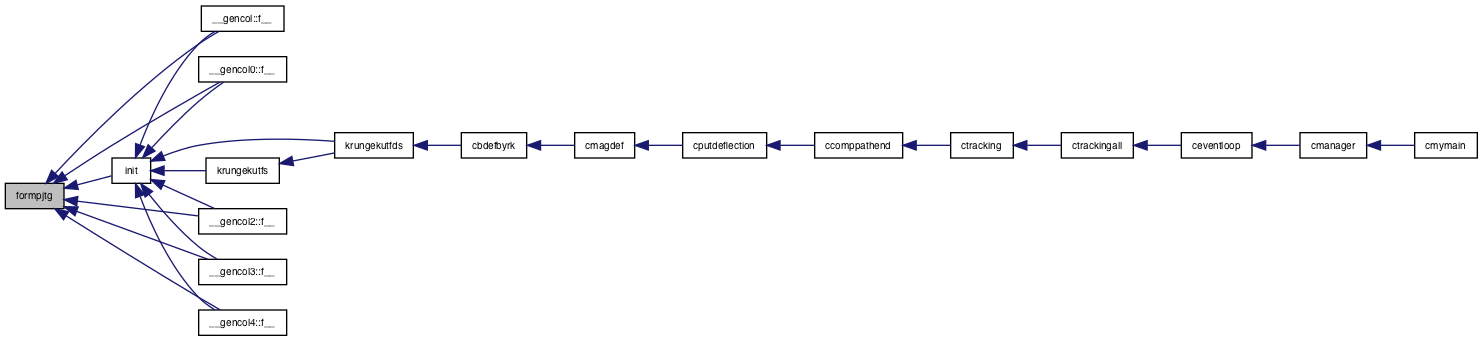

Here is the caller graph for this function:

gencol()

subroutine gencol	(	type (ptcl), dimension(*)	a,
		integer	ntp
	)

Definition at line 585 of file Gencol.f.

References a, b, chacol(), cibst1(), epgencolbymuon(), getimpactparam(), kelec, kgnuc, kmuon, and knuc.

Referenced by __gencol.f__(), __gencol0.f__(), __gencol2.f__(), __gencol3.f__(), and __gencol4.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include "Zmass.h"
#include  "Zevhnv.h"
#include  "Zevhnp.h"
#include  "Zmanagerp.h"
      include "Zprivate.h"

      type(ptcl)::  a(*)
!             projectile and target information (both befor
!             and after collision ) in different system.
!
      integer  ntp
      integer j
      integer tz, ta, l
      real*8  xs, sigbdif, xsair
      real*8   roots

      ta = tgmnum
      tz =  tg%charge

      if(pj%code == kmuon ) then
!         sepcial treatment
         call epgencolbymuon(plab, ta, tz,  a, ntp)
!!      elseif( pj.code == kphoton ) then
!         sepcial treatment
!!         call epGencolByPhoton(plab, tA, tZ,  a, ntp)
      elseif(pj%code == kelec .or.
     *      ( pj%code /= kgnuc .and. pj%code >knuc ) ) then
         write(0,*) ' ptcl code =', pj%code, ' not '
         write(0,*) ' supported in Gencol'
         stop
      else
!           init for 1 event
         if(activemdl .eq. 'qgsjet2' ) then
            call cxsecqgs(plab, ta, xs)
         elseif(activemdl .eq. 'epos' ) then
            call ceposinioneevent(plab, tg, xs)
         endif
!!!!!!!
!     you may include  ToPrintXS.f here to print out E vs XS for Sibyll
 !!!!!!!!
!           generate event
         if(activemdl .eq. 'qgsjet1') then
#ifdef QGSJET1
            call qgs01event(plab, ta, tz, a, ntp)
#endif
!!         elseif(ActiveMdl .eq. 'sibyll') then
!!!
!!            call csibyllevent(plab, tA, tZ, a, ntp)
         else
            call chacol(plab, ta, tz,  a, ntp)
         endif
      endif
      call getimpactparam(b)
      do j = 1, ntp
!               boost to original target system
         call cibst1(j, tg,  a(j), a(j))
      enddo

Here is the call graph for this function:

Here is the caller graph for this function:

init()

subroutine init

(

)

Definition at line 62 of file Gencol.f.

References cfixmodel(), cfixprefix(), cgetloginn(), checkenergy(), checkptcls(), cintmodels(), cmkseed(), copenfw2(), cquhookc(), cquhooki(), cquhookr(), creadparam(), csetcosorepi(), formpjtg(), inpfileno, kgnuc, kmuon, outresul(), pjcode, pjpx, pjpy, pjsub, qgs01init(), readinpfile(), tgcode, tgpx, tgpy, tgsub, trackl, wzmax, and xyz.

Referenced by __gencol.f__(), __gencol0.f__(), __gencol2.f__(), __gencol3.f__(), __gencol4.f__(), krungekutfds(), and krungekutfs().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanager.h"
#include  "Zmanagerp.h"
#include  "Ztrackp.h"

      include  "Zprivate.h"
      character*200 input, file
      character*20 uid
      integer klena, icon, eof

      external cblkmanager
      external cblkevhnp

      call creadparam(5)


      if(tracedir .eq. ' ') then
         call cgetloginn(uid)
         tracedir = '/tmp/'//uid(1:klena(uid))
      endif

      if(desteventno(2) .eq. 0) then
         nevent =abs( desteventno(1) )
      else
         nevent = abs( desteventno(2) )
      endif
      call cmkseed(initrn(1), initrn)
      call rnd1i(initrn)        ! random number init.
      call cquhookr(1, wzmin)
      call cquhookr(2, wzmax)
      write(0,*) ' cos* min  max=', wzmin, wzmax
      call cquhookr(3, trackl)
      call cquhooki(1, outzero)
      call cquhooki(2, outresul)
!       make projectile going +z
      call cquhookc(1, input)
      if(input(1:4) .eq. "file") then
         read(input(5:10), *) inpfileno
         xyz=index(input, "xyz")
         call cquhookc(2, input)
         file = ' '
         file=input(1:klena(input))
         call copenfw2(inpfileno, file, 1, icon)
         if(icon .ne. 1) then
            write(0,*)
     *      ' file=', file, ' cannot be opened in Gencol'
            stop 9999
         endif
         call readinpfile(eof)
!          once rewind to read successively for event generation
         rewind inpfileno
      else
         inpfileno=0
         read(input, *)
     *        pjcode, pjsub, pjchg, pjpx, pjpy, pjpz  !  proj. mom/n
         call cquhookc(2, input)
         input = trim(input)//" /"
         read(input, *)
     *        tgcode, tgsub, tgchg, tgpx, tgpy, tgpz, targetname  ! target. mom/n
         call cquhookc(3, input)
         if(input .ne. ' ') then
!            read(input, *) xpos, ypos, zpos
            read(input, *) xpos(1:3)
            xyz = 1
         else
            xyz = 0
         endif
      endif
      call formpjtg(1)    ! form proj. and target
      call cfixprefix('configDummy')
      call csetcosorepi('gencol') ! this is probably not used


      if( index( intmodel,'qgsjet1') .ne. 0 ) then
#ifdef QGSJET1
         call qgs01init
         activemdl = 'qgsjet1'
#else
         write(0,*) 'to use qgsjet1,  define it  in Zintmodel.h'
#endif
!      elseif(index (IntModel, 'sibyll') .ne. 0 )  then
!         call csibyllinit
!         ActiveMdl = 'sibyll'
      else
         call cintmodels('gencol')
         call cfixmodel( plab )
      endif

      write(0, *) 'Active int. model=',activemdl

      if( plab%code == kgnuc ) then
         labequive= plab%fm%p(4)/plab%subcode
      else
         labequive=plab%fm%p(4)
      endif
      if( activemdl == "dpmjet3" ) then
         call checkenergy
         call checkptcls
      endif
!             for muon N.I, we must read  mutab for which we must read
!         all  elemag table too.
      if(pj%code == kmuon ) then
!c         call epReadMediaForMuon  !////////////
      endif

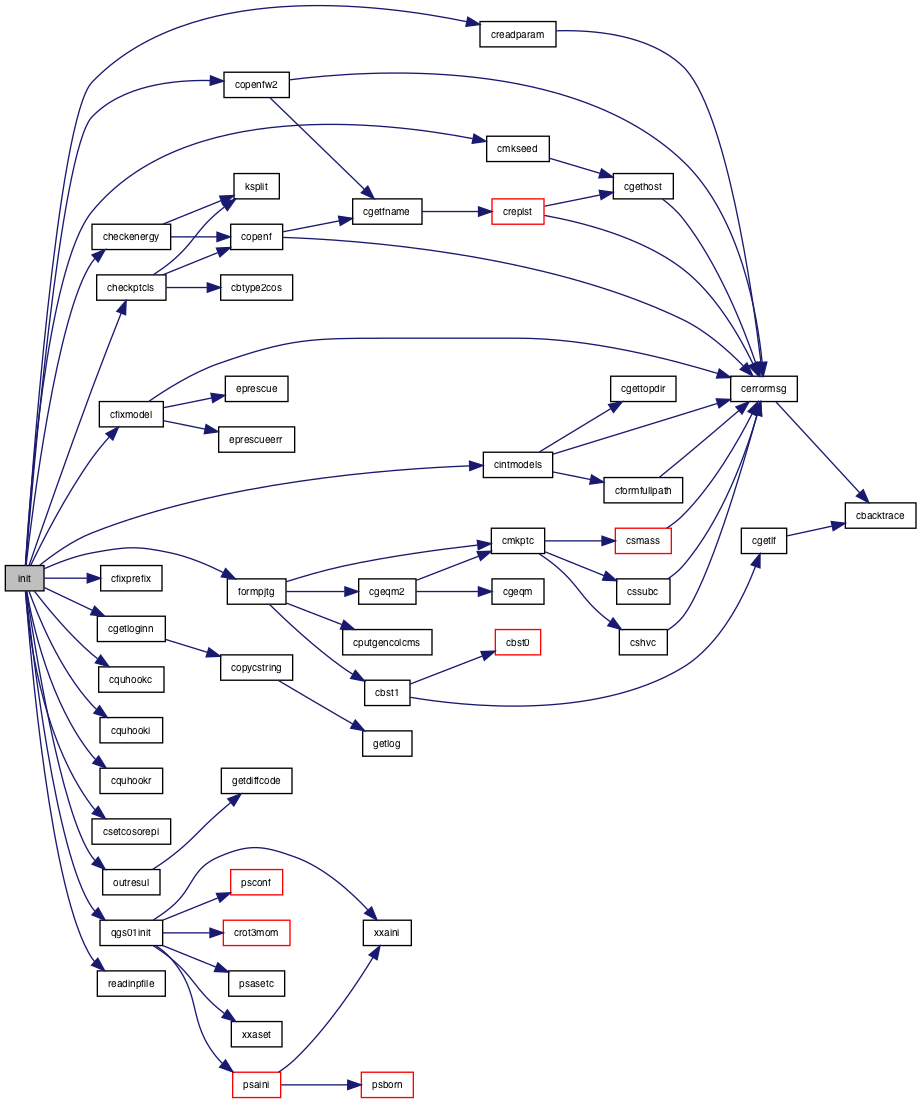

Here is the call graph for this function:

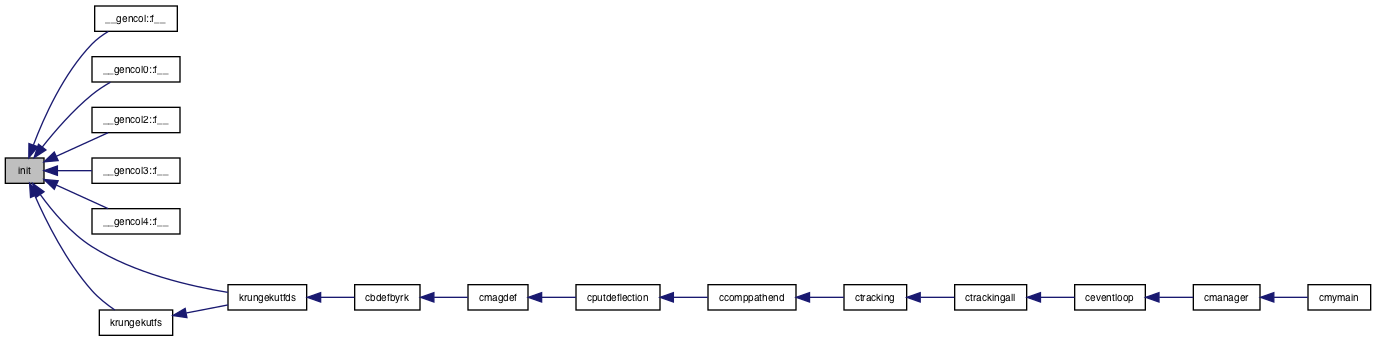

Here is the caller graph for this function:

outresula()

subroutine outresula	(	type (ptcl), dimension(ntp)	a,
		integer	ntp
	)

Definition at line 540 of file Gencol.f.

References a, getdiffcode(), and xyz.

Referenced by __gencol.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanagerp.h"
#include  "Zmanager.h"
#include  "Ztrackp.h"
      include  "Zprivate.h"

      integer ntp
      type(ptcl):: a(ntp)
      integer  i, j
      real*8  p
      real*8  wx(3)
      integer nw, difcode(20)

      call getdiffcode(nw, difcode)

      do j = 1, ntp
         i = indx(j)
         p = sqrt(
     *  dot_product( a(i)%fm%p(1:3), a(i)%fm%p(1:3)) )
         wx(1:3)= a(i)%fm%p(1:3)/p
         if(xyz .eq. 0) then
            write(*,
     *     '(i3,i5,i4,1p, g14.5,0p, 3f17.13, i8)')
     *        a(i)%code, a(i)%subcode, a(i)%charge,
     *        a(i)%fm%p(4)-a(i)%mass, wx(1:3), j


         else
            write(*,'(i3,i5,i4,g14.5,1p3E11.3,0p3f17.13, i8)')
     *        a(i)%code, a(i)%subcode, a(i)%charge,
     *        a(i)%fm%p(4)-a(i)%mass, xpos(1:3), wx(1:3), j

         endif
      enddo
      if(ntp .gt. 0 .or. outzero .eq. 1) then
         write(*, *)
      endif

Here is the call graph for this function:

Here is the caller graph for this function:

outresulb()

subroutine outresulb	(	type (ptcl), dimension(ntp)	a,
		integer	ntp
	)

Definition at line 849 of file Gencol.f.

References a, and cyeta().

Referenced by __gencol.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanagerp.h"
#include  "Zmanager.h"
#include  "Ztrackp.h"
      integer,save:: nthev=0
      include  "Zprivate.h"
! general process information; only for dpmjet3
      INTEGER iproce,idnodf,idifr1,idifr2,iddpom,ipron
      COMMON /poprcs/ iproce,idnodf,idifr1,idifr2,iddpom,ipron(15,4)
!      IPROCE
!             1 non-diffractive inelastic
!             2 elestic
!             3 quasi elestic vector meson prod. (photon)
!             4 central diffraction
!             5 single diff. ptcl 1
!             6 //           ptcl 2
!             7 double diff.
!             8 direct photo-hadron
! For moore detail, see manual in Documents/CosmicRays/phojetShort.pdf
!               say, IDIFR1 classifies IPROCE=5

      integer ntp
      type(ptcl):: a(ntp)
      integer  i, j

      integer:: npp



      real*8  p, wx, wy, wz, pt, y, eta
      integer npzm, npzp, ncht, nchpzm, nchpzp
      integer nw, diffcode(20)
      real(8):: xfpz, xfke
!//////////////
      type(ptcl):: inlab
      real(8):: ylab, etalab
      integer icon
      type(ptcl):: pcms, pl
      type(fmom):: gc
!/////////////
      nthev=nthev+1

      npzm = 0
      npzp = 0
      nchpzm = 0
      nchpzp = 0


      do j = 1, ntp
         i = indx(j)
         if( a(i)%fm%p(3) .gt. 0.) then
            npzp = npzp + 1
            if(a(i)%charge .ne. 0) then
               nchpzp = nchpzp +1
            endif
         else
            npzm = npzm + 1
            if(a(i)%charge .ne. 0) then
               nchpzm = nchpzm + 1
            endif
         endif
      enddo
      ncht = nchpzm + nchpzp
!      ntpp = 0   !  ?

      do j = 1, ntp
         i = indx(j)
         pt = sqrt( a(i)%fm%p(1)**2 + a(i)%fm%p(2)**2)
         p= sqrt( pt**2  +    a(i)%fm%p(3)**2 )
         xfke = ( a(i)%fm%p(4)-a(i)%mass) /( pj%fm%p(4)- pj%mass)
         xfpz =  a(i)%fm%p(3) / pj%fm%p(3)

         wz = a(i)%fm%p(3)/p
         call cyeta(a(i),  y, eta)
         write(*,'(3i4, 1p, 7g13.4)')
     *         a(i)%code,  a(i)%subcode,  a(i)%charge,
     *        pt, y,  eta, a(i)%fm%p(4)-a(i)%mass,  a(i)%fm%p(3),
     *        xfke, xfpz
!     *     ylab, etalab
!         write(*,'(3i4, 1p, 3g13.4)')
!     *   a(i)%code,  a(i)%subcode,  a(i)%charge,
!     *    a(i)%fm%p(4)-a(i)%mass,    a(i)%fm%p(3), wz


      enddo
      if(ntp .gt. 0 .or. outzero .eq. 1) then
         write(*, *)
      endif

Here is the call graph for this function:

Here is the caller graph for this function:

outresulc()

subroutine outresulc	(	type (ptcl), dimension(ntp)	a,
		integer	ntp
	)

Definition at line 944 of file Gencol.f.

References a, cbst0(), cgetcm(), cmkptc(), cyeta(), and maspic.

Referenced by __gencol.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanagerp.h"
#include  "Zmanager.h"
#include  "Ztrackp.h"
      integer,save:: nthev=0
      include  "Zprivate.h"
! general process information; only for dpmjet3
      INTEGER iproce,idnodf,idifr1,idifr2,iddpom,ipron
      COMMON /poprcs/ iproce,idnodf,idifr1,idifr2,iddpom,ipron(15,4)
!      IPROCE
!             1 non-diffractive inelastic
!             2 elestic
!             3 quasi elestic vector meson prod. (photon)
!             4 central diffraction
!             5 single diff. ptcl 1
!             6 //           ptcl 2
!             7 double diff.
!             8 direct photo-hadron
! For moore detail, see manual in Documents/CosmicRays/phojetShort.pdf
!               say, IDIFR1 classifies IPROCE=5

      integer ntp
      type(ptcl):: a(ntp)
      integer  i, j, icon


      integer:: npp

      real*8  p, wx, wy, wz, pt, y, eta
      integer npzm, npzp, ncht, nchpzm, nchpzp
      integer nw, diffcode(20)
      real(8):: xfpz, xfke
!//////////////
      type(ptcl):: restn
      type(ptcl):: cmptcl
      type(fmom):: gc
      real(8):: s, rootsh, xf, xflab, xfmax
      real(8):: esmax, pszmax, pzmax, ebypzmax, esbyrootsh
      real(8):: ys, etas, es, elab, pabs, cost, teta
!/////////////
      nthev=nthev+1


      call cmkptc(6, -1, 1, restn)
      restn%fm%p(1:3)=(/0.,0.,0./)
      restn%fm%p(4) =  restn%mass
      call cgetcm(pj, restn, gc, icon)
      s =( restn%mass + pj%fm%p(4) ) *2 * restn%mass
      rootsh = sqrt(s)/2
      esmax=rootsh - pj%mass
      pszmax=sqrt( esmax**2 - maspic**2 )    ! pion case
      pzmax = gc%p(4)*pszmax + gc%p(3)* esmax !

      do j = 1, ntp
         call cbst0(j, gc, a(j), cmptcl) ! j==1  must be called.
         call cyeta(cmptcl,  ys, etas)
         call cyeta(a(j), y, eta)

         elab = a(j)%fm%p(4)
         es = cmptcl%fm%p(4)
         xf = cmptcl%fm%p(3)/rootsh
         xflab = a(j)%fm%p(3)/pzmax
         pt =sqrt( a(j)%fm%p(1)**2 + a(j)%fm%p(2)**2 )
         pabs = sqrt( pt**2 + a(j)%fm%p(3)**2 )
         cost = a(j)%fm%p(3)/pabs
         teta = acos(cost)
         write(*, '(2i4, 1p, 9g14.4)')
     *     a(j)%code,  a(j)%charge, etas, es, xf, eta, elab,
     *     xflab,  cost, teta, pt

      enddo
      if(ntp .gt. 0 .or. outzero .eq. 1) then
         write(*, *)
      endif

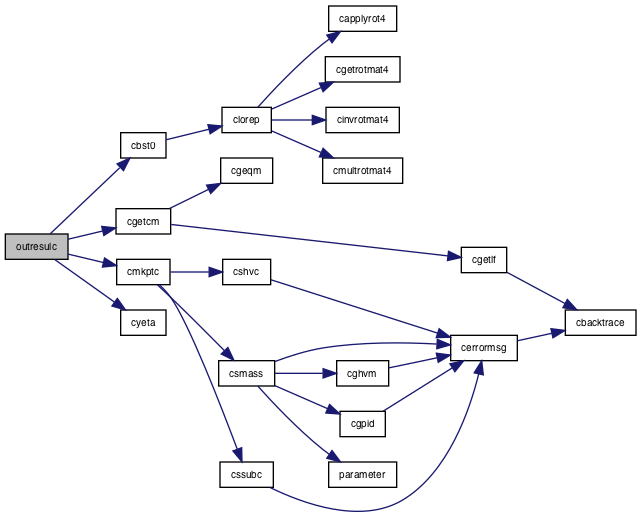

Here is the call graph for this function:

Here is the caller graph for this function:

outresulx()

subroutine outresulx	(	type (ptcl), dimension(ntp)	a,
		integer	ntp
	)

Definition at line 1027 of file Gencol.f.

References a.

Referenced by __gencol.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanagerp.h"
#include  "Zmanager.h"
#include  "Ztrackp.h"
      include  "Zprivate.h"

      integer ntp
      type(ptcl):: a(ntp)
      integer  i, j
      real*8  p, mass2, p2
      real*8  wx(3)
      integer nw, difcode(20)

!      call getDiffCode(nw, dffcode)
!!!
      call csibylgetdiffcode(nw, difcode)
!      write(*,'("h ",i3, 7i6)' )
!     * difcode(1),ntp, npzm, npzp, Ncht, Nchpzm, Nchpzp, nthev
!
!      do i = 1, nw
!         write(*,'(a, 3i10)')
!     *         'dif ', i, difcode(i), ntp
!      enddo
      write(*,*) 'dif ', nw, difcode(1:nw)
!!!!!!
      do i = 1, ntp
         p2 =  dot_product(a(i)%fm%p(1:3), a(i)%fm%p(1:3) )
         p = sqrt(p2)
!     mass2= a(i)%fm%p(4)**2 - p2
         mass2= (a(i)%fm%p(4)- p)*(a(i)%fm%p(4)+ p)
!         if( a(i)%code  /= 1 .and.
!     *        (  abs(a(i)%mass/sqrt(mass2) -1.) > 0.01  )
!     *           .or.
!     *        a(i)%code == 0 .and.
!     *        (  abs( a(i)%mass-sqrt(mass2) ) > 0.03  ) ) then
!!!            write(*,
!!!     *     '(i3,i5,i4,1p, 6g22.14)')
!!!     *        a(i)%code, a(i)%subcode, a(i)%charge,
!!!     *           a(i)%fm%p(:), a(i)%mass, sqrt(mass2)
!         endif
      enddo
      if(ntp .gt. 0 .or. outzero .eq. 1) then
         write(*, *)
      endif

Here is the caller graph for this function:

outtrace()

subroutine outtrace	(	integer	nev,
		type (ptcl), dimension(ntp)	a,
		integer	ntp
	)

Definition at line 772 of file Gencol.f.

References a, cerrormsg(), copenfw(), kseblk(), puttrace(), trackl, and xyz.

Referenced by __gencol.f__(), __gencol0.f__(), __gencol2.f__(), __gencol3.f__(), and __gencol4.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanagerp.h"
#include  "Zmanager.h"
#include  "Ztrackp.h"
      include  "Zprivate.h"

      integer ntp, nev
      type(ptcl):: a(ntp)
      integer  i, j, leng, icon, klena
      real*8  p
!     , wx, wy, wz
!      real  x1, y1, z1, x2, y2, z2
      character*100  tracefile
      real(8):: x1(3), x2(3)

      write(tracefile, *) tracedir(1:klena(tracedir))//'/trace', nev
      call kseblk(tracefile, ' ', leng)
      call copenfw(tracedev, tracefile(1:leng), icon)
      if(icon .ne. 0) then
         call cerrormsg('tracefile could not be opened',0)
      endif
      if(xyz .eq. 0) then
         x1(1:3)=0.
      else
         x1(1:3)=xpos(1:3)
      endif

!          colliding partilces
      if(trace == 1 ) then
         call puttrace(x1, pj, -2*trackl)
         call puttrace(x1, tg, -2*trackl)
      endif

      do j = 1, ntp
         i = indx(j)
         call puttrace(x1, a(i), trackl)
      enddo
      close(tracedev)

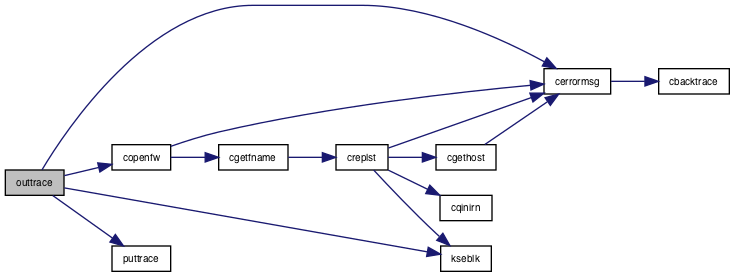

Here is the call graph for this function:

Here is the caller graph for this function:

puttrace()

subroutine puttrace	(	real(8), dimension(3), intent(in)	x1,
		type (ptcl)	a,
		real(8), intent(in)	leng
	)

Definition at line 817 of file Gencol.f.

References a, and trackl.

Referenced by outtrace().

      implicit none
#include  "Zmanagerp.h"
#include  "Zptcl.h"
#include  "Ztrackp.h"
      include  "Zprivate.h"

      real(8),intent(in)::x1(3)  !   origin
      type(ptcl):: a   ! a partilce
      real(8),intent(in):: leng    ! length of track to be drawn

      real(8)::wx(3), x2(3), p

      p = sqrt( dot_product(a%fm%p(1:3), a%fm%p(1:3)))
      if( p >0. ) then
         wx(1:3)= a%fm%p(1:3)/p
      else
         wx(1:3) = 0.
      endif
      x2(1:3) = x1(1:3) + wx(1:3)*leng
      write(tracedev,'(3g14.5, i3, g14.4, i3, i2)')
     *     x1(1:3),
     *     a%code,  a%fm%p(4) - a%mass, a%charge,
     *     0
      write(tracedev, '(3g14.5, i3, g14.4, i3, g14.4)' )
     *     x2(1:3),
     *     a%code,  a%fm%p(4) - a%mass, a%charge,
     *     trackl
      write(tracedev, *)
      write(tracedev, *)

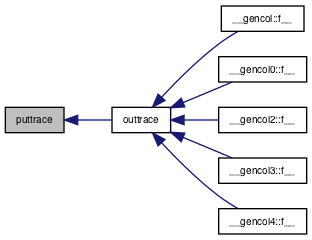

Here is the caller graph for this function:

readinpfile()

subroutine readinpfile

(

integer

eof

)

Definition at line 422 of file Gencol.f.

References inpfileno, pjcode, pjpx, pjpy, pjsub, tgcode, tgpx, tgpy, tgsub, and xyz.

Referenced by __gencol.f__(), __gencol0.f__(), __gencol2.f__(), __gencol3.f__(), __gencol4.f__(), and init().

      implicit none
#include "Zptcl.h"
      include "Zprivate.h"

      integer eof ! output . data read--> 0
                  !   eof reached --> 1
      read(inpfileno,*, end=100)
     *     pjcode, pjsub, pjchg, pjpx, pjpy, pjpz
      read(inpfileno,*, end=100)
     *     tgcode, tgsub, tgchg, tgpx, tgpy, tgpz
      if(xyz .gt. 0 ) then
!         read(inpfileno,*, end=100) xpos, ypos, zpos
         read(inpfileno,*, end=100) xpos(1:3)
      endif
      eof = 0
      return
 100  continue
      eof = 1

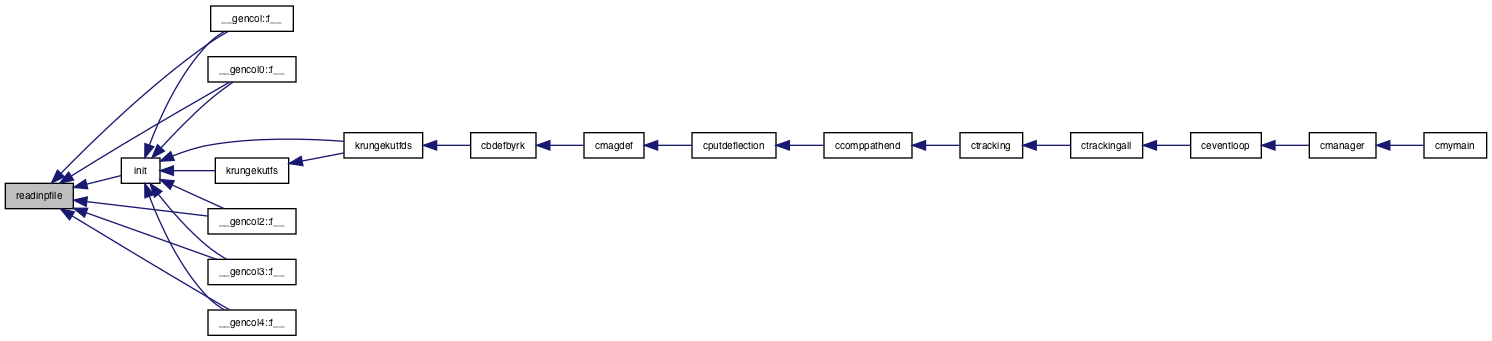

Here is the caller graph for this function:

sortbyke()

subroutine sortbyke	(	type (ptcl), dimension(*)	a,
		integer	ntp
	)

Definition at line 754 of file Gencol.f.

References a, ke(), kqsortd(), and ksortinv().

Referenced by __gencol.f__(), __gencol0.f__(), __gencol2.f__(), __gencol3.f__(), and __gencol4.f__().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"

      include "Zprivate.h"
      integer  ntp
      type(ptcl)::  a(*)
!             projectile and target information (both befor
!             and after collision ) in different system.
      integer  i
      do i = 1, ntp
         ke(i) = a(i)%fm%p(4) - a(i)%mass
      enddo
      call kqsortd(ke, indx, ntp)
      call ksortinv(indx, ntp)
!       ke( indx(1) ) is the highest energy

Here is the call graph for this function:

Here is the caller graph for this function:
