ckpnTotXs.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	ckpntotxs (p, xs)
subroutine	ckpnelaxs (p, xs)
subroutine	ckpninelaxs (p, xs)

Function/Subroutine Documentation

ckpnelaxs()

subroutine ckpnelaxs	(	real*8	p,
		real*8	xs
	)

Definition at line 50 of file ckpnTotXs.f.

References ckpntotxs(), kpolintplogxyfe(), and parameter().

!           pi+ p elastic cross section in mb
      implicit none
      real*8 p ! input.  momentum of n in GeV
      real*8  xs   ! output np elastic xs. mb.

       integer np, m, i
       parameter(np=30, m=5)
       real*8 px(np), mb(np)
       real*8 error
       real*8 xssave/-1./

           data ( px(i), i=           1 ,           np )/
     1  0.499, 0.619, 0.759, 0.908, 0.992,
     2  1.142, 1.348, 1.695, 2.053, 2.717,
     3  4.086, 5.990, 8.451, 11.331, 15.387,
     4  21.710, 33.066, 49.724, 75.734, 112.445,
     5  146.967, 197.049, 271.020, 445.603, 661.604,
     6  982.309, 1678.060, 2903.360, 5023.390, 7749.220
     * /
           data ( mb(i), i=           1 ,           np )/
     1 5.160,5.942,6.661,7.318,7.567,
     2 7.316,6.884,6.263,5.510,4.718,
     3 4.150,3.505,3.146,2.901,2.711,
     4 2.550,2.432,2.366,2.365,2.461,
     5 2.477,2.561,2.648,2.793,2.926,
     6 3.025,3.169,3.342,3.408,3.668
     * /


       save
!
       if( p .gt. 197.) then
!           assume prop.to total
          if( xssave .lt. 0.) then
             call ckpntotxs(px(22), xssave)
          endif
          call ckpntotxs(p, xs)
          xs = xs * mb(22)/xssave
       elseif(p .gt. px(1)) then
!                 take log x only
          call kpolintplogxyfe(px, 1, mb, 1, np, m, 1, p, xs, error)
       else
!            get value at 0.1
          xs = mb(1)
       endif

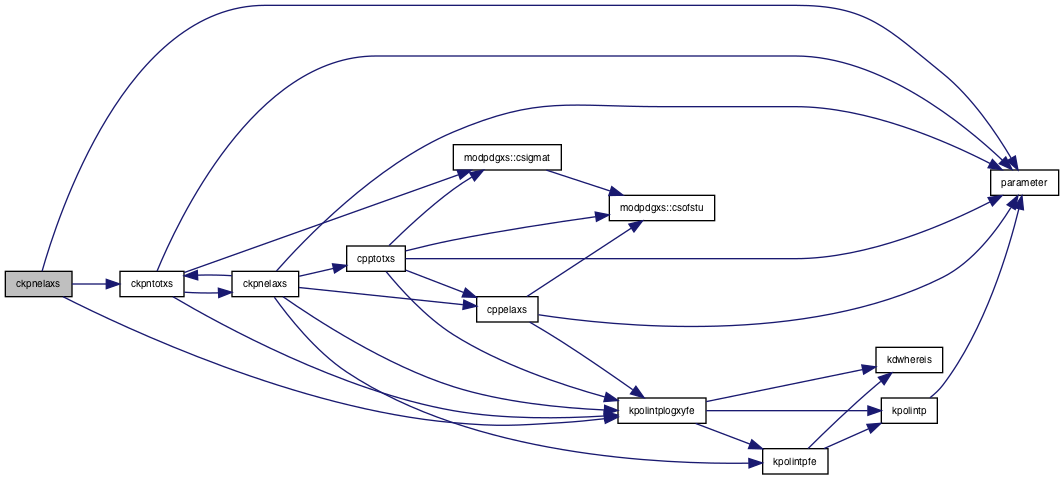

Here is the call graph for this function:

ckpninelaxs()

subroutine ckpninelaxs	(	real(8), intent(in)	p,
		real(8), intent(out)	xs
	)

Definition at line 97 of file ckpnTotXs.f.

References ckpnelaxs(), ckpntotxs(), and d0.

      implicit none
      real(8),intent(in)::p
      real(8),intent(out)::xs

      real(8)::txs, exs
      call ckpntotxs(p, txs)
      call ckpnelaxs(p, exs)
      xs =max( txs - exs, 0.d0)

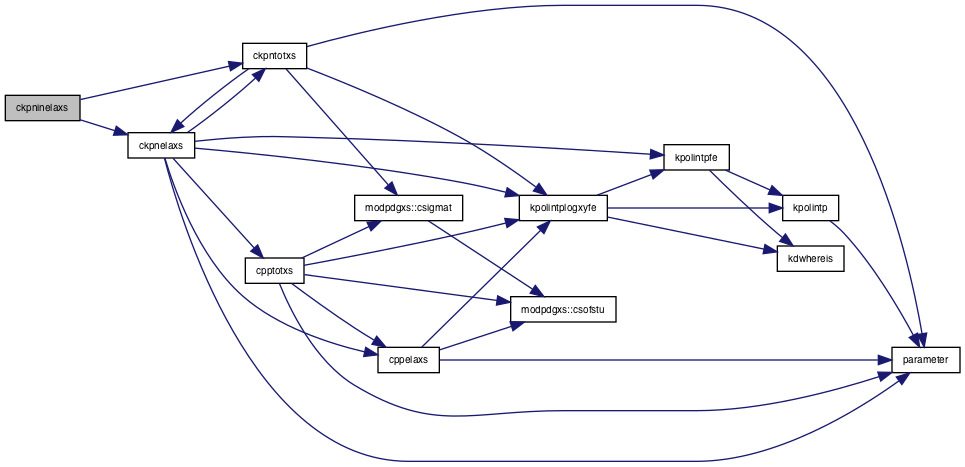

Here is the call graph for this function:

ckpntotxs()

subroutine ckpntotxs	(	real*8	p,
		real*8	xs
	)

Definition at line 3 of file ckpnTotXs.f.

References ckpnelaxs(), kpolintplogxyfe(), maskc, masp, and parameter().

      implicit none
#include "Zmass.h"
      real*8 p  ! input.  momentum of K+. in GeV
      real*8 xs     ! output. total Kn cross section in mb
      integer np, i, m
      real*8  error
      parameter(np=26, m=5)
      real*8  px(np), mb(np)
      real*8  z, y1, y2, b, s, rts, s0, eta1, eta2

      parameter(z=17.91, y1=7.1, y2=13.45, b=0.308,
     *   s0=5.38**2, eta1=0.458, eta2=0.545)

           data ( px(i), i=           1 ,          np )/
     1  0.499, 0.596, 0.769, 0.919, 0.967,
     2  1.071, 1.233, 1.492, 2.001, 2.423,
     3  3.087, 3.883, 5.140, 7.929, 13.895,
     4  20.630, 32.647, 51.663, 80.719, 124.520,
     5  207.359, 392.263, 811.319, 2005.980, 4959.750,
     6  7848.650
     * /

           data ( mb(i), i=           1 ,          np )/
     1  10.185, 11.888, 14.742, 17.207, 18.529,
     2  19.290, 19.418, 18.897, 18.389, 17.896,
     3  17.652, 17.647, 17.642, 17.752, 17.860,
     4  17.852, 18.084, 18.319, 18.683, 19.055,
     5  19.828, 20.910, 21.901, 23.088, 24.670,
     6  25.501
     * /

      save
      if(p .gt. 250.) then
!         s =(M+E)^2 - p^2  = M^2 + m^2 +2ME
!           =
         s = masp**2 + maskc**2 + 2*masp*sqrt(p**2 + maskc**2)
         rts = sqrt(s)
         xs =z + b*log(s/s0)**2 + y1*(1./s)**eta1 +y2*(1./s)**eta2
      elseif( p .gt. 0.6) then
!                  take log x only
         call kpolintplogxyfe(px, 1, mb, 1, np, m, 1,  p, xs, error)
      else
         call ckpnelaxs(p, xs)
      endif

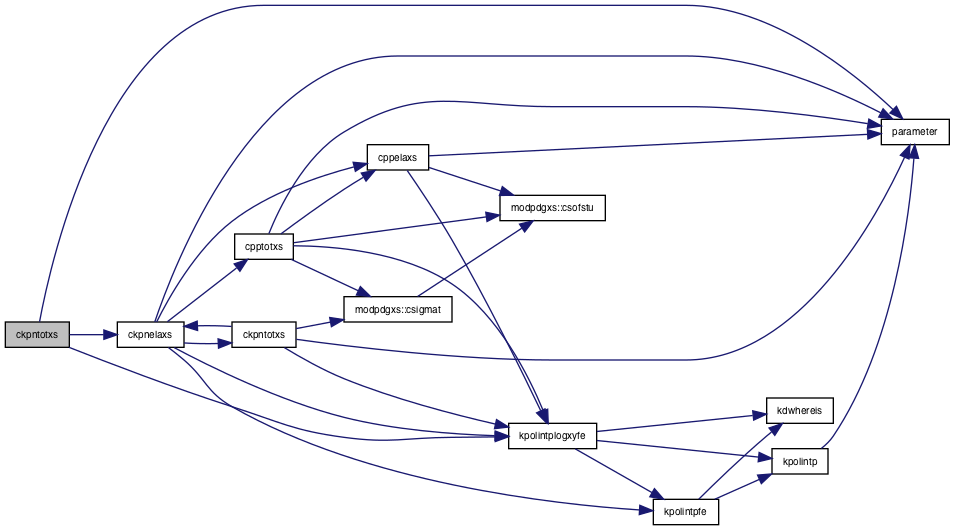

Here is the call graph for this function:
