timeslice.f File Reference

Go to the source code of this file.

Functions/Subroutines
program	__timeslice.f__
subroutine	slice1tbin (mint, maxt, dt, pixelin, rmax)
subroutine	slice (mint, maxt, dt)
subroutine	thinning (i1, i2)
subroutine	mvdata (f, j, nc)
subroutine	mvdatai (f, j, nc)
subroutine	mkfiles
subroutine	mkskelfiles
subroutine	mkafile
subroutine	mkaskelfile
subroutine	wtaskel (fno, xa, ya, za, code, chg, np)
subroutine	code2rgb (codei, chgi, r, g, b, alpha)

Function/Subroutine Documentation

__timeslice.f__()

program __timeslice.f__

(

)

Definition at line 6 of file timeslice.f.

References e10, i, klena(), maxp, parameter(), slice1tbin(), and true.

      character*120  tracefile, timeprofile, filename

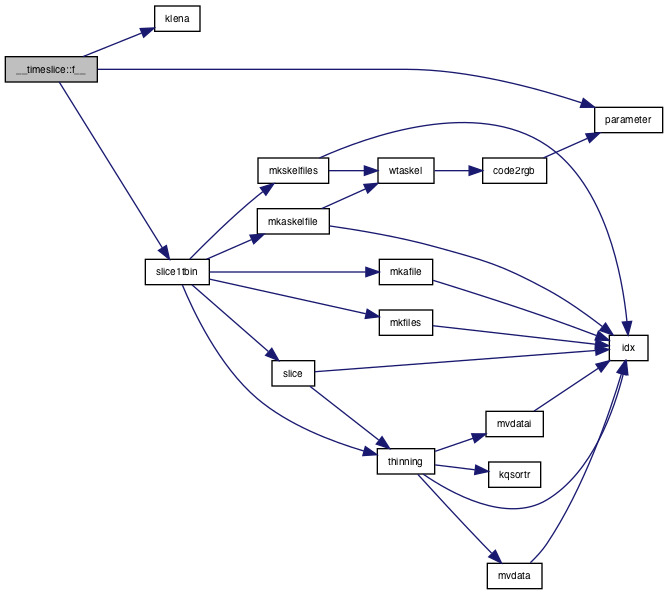

Here is the call graph for this function:

code2rgb()

subroutine code2rgb	(	integer*2	codei,
		integer*2	chgi,
		real	r,
		real	g,
		real	b,
		real	alpha
	)

Definition at line 538 of file timeslice.f.

References parameter(), and true.

      implicit none
      integer*2  codei, chgi
      real r, g, b, alpha

      integer ncolor, mncolor
      parameter( mncolor = 17 )
!      structure /colortab/
         integer*2 tcode(mncolor)
         integer*2 tchg(mncolor)
         real      tr(mncolor)
         real      tg(mncolor)
         real      tb(mncolor)
         real      talpha(mncolor)
!      end structure
!      record /colortab/ tab(mncolor)

      character*80 input
      integer i

      integer first
      data first/0/
      save first, ncolor, tcode, tchg, tr, tg, tb, talpha


      if(first .eq. 0) then
         input = ' '

         open(13, file='colortab')
         i = 0
         do while(.true.)
           read(13,'(a)',end=10) input

           if(input(1:1) .ne. "#" .and. input .ne. ' ') then
              i = i + 1
              if(i .gt. mncolor)  then
                 write(0,*) ' too many color spec. in colortab'
                 stop 99999
              endif

              read(input,*)
     *          tcode(i), tchg(i),
     *          tr(i), tg(i), tb(i),
     *          talpha(i)
           endif
         enddo
 10      continue
         ncolor = i
         first = 1
         close(13)
      endif

      do  i = 1, ncolor
         if(tcode(i) .eq. codei .and. tchg(i) .eq. chgi) goto 100
      enddo
      i = ncolor
 100  continue

      r = tr(i)
      g = tg(i)
      b = tb(i)
      alpha = talpha(i)

Here is the call graph for this function:

mkafile()

subroutine mkafile

(

)

Definition at line 457 of file timeslice.f.

References idx(), x, y, and z.

      implicit none
#include "Zprivate2.f"

      integer i, j
      character* 130  filename

      integer filec
      integer klena
      data filec/0/
      save filec

      if( filec .eq. 0 ) then
         filename = dir(1:klena(dir))//"/timesorted.dat"
         open(20, file=filename(1:klena(filename)),
     *            form='formatted')
         filec = 1
      endif

      do j = jmin, jmax
         do i= 1, min(idx(j), maxppt)
            write(20,'(3g16.8, i3,i3)' )
     *        x(i, j), y(i,j), z(i,j), codex(i,j), chgx(i,j)
         enddo
         if( idx(j) .gt. 0 ) write(20,*)
      enddo

Here is the call graph for this function:

mkaskelfile()

subroutine mkaskelfile

(

)

Definition at line 484 of file timeslice.f.

References idx(), wtaskel(), x, y, and z.

      implicit none
#include "Zprivate2.f"

      integer i, j
      character* 130  filename

      integer filec
      integer klena, ntp
      data filec/0/
      save filec

      if( filec .eq. 0 ) then
         filename = dir(1:klena(dir))//"/timesorted.skel"
         open(20, file=filename(1:klena(filename)),
     *            form='formatted')
         filec = 1
      endif

      do j = jmin, jmax
         ntp = min(idx(j), maxppt)
         if(idx(j) .gt. 0) then
            write(20,'(a)') "SKEL"
            call wtaskel(20,
     *      x(1, j), y(1,j), z(1,j), codex(1,j), chgx(1,j), ntp)
            write(20,*)
         endif
      enddo

Here is the call graph for this function:

mkfiles()

subroutine mkfiles

(

)

Definition at line 396 of file timeslice.f.

References idx(), x, y, and z.

      implicit none
#include "Zprivate2.f"

      character* 130  filename
      integer filec
      integer  klena
      integer i, j
      data filec/0/
      save filec

      do j = jmin, jmax
         if(idx(j) .gt. 0) then
            filec = filec +1
            write(filename,'(a, a, i5.5,a)') dir(1:klena(dir)),
     *      "/ts", filec+offset, ".dat"
            open(20, file=filename(1:klena(filename)),
     *        form='formatted')
            do i= 1, min( idx(j), maxppt)
               write(20,'(3g16.8,i3,i3)')
     *           x(i, j), y(i,j), z(i,j), codex(i,j), chgx(i,j)
            enddo
            close(20)
         endif
      enddo

Here is the call graph for this function:

mkskelfiles()

subroutine mkskelfiles

(

)

Definition at line 423 of file timeslice.f.

References idx(), wtaskel(), x, y, and z.

      implicit none
#include "Zprivate2.f"

      character* 130  filename
      integer filec

      integer  klena, ntp

      integer i, j
      data filec/0/
      save filec


      write(0,*) ' jmin,max=', jmin, jmax


      do j = jmin, jmax
         ntp = min(idx(j), maxppt)
         if(idx(j) .gt. 0) then
            filec = filec + 1
            write(filename,'(a, a, i5.5, a)') dir(1:klena(dir)),
     *      "/ts", filec+offset,  ".skel"

            open(20, file=filename(1:klena(filename)),
     *         form='formatted')
            write(20, '(a)') "SKEL"
            call wtaskel(20, x(1,j), y(1,j), z(1,j),
     *       codex(1,j), chgx(1, j), ntp)
            close(20)
         endif
      enddo

Here is the call graph for this function:

mvdata()

subroutine mvdata	(	real*4, dimension(maxp, n)	f,
		integer	j,
		integer	nc
	)

Definition at line 341 of file timeslice.f.

References idx().

      implicit none
#include "Zprivate2.f"

      integer j
      real*4  f(maxp, n)

      real*4 temp(maxp)
      integer i, nc, l, ntp


      nc = 0
      ntp = min(idx(j), maxppt)
      do i = 1,  ntp
         l = si(i)
         if(l .gt. 0 ) then
            nc = nc + 1
            temp(nc) = f(l, j)
         endif
      enddo

      do i = 1, nc
         f(i, j) = temp(i)
      enddo

Here is the call graph for this function:

mvdatai()

subroutine mvdatai	(	integer*2, dimension(maxp, n)	f,
		integer	j,
		integer	nc
	)

Definition at line 368 of file timeslice.f.

References idx().

      implicit none
#include "Zprivate2.f"
      integer j
      integer*2  f(maxp, n)

      integer*2  temp(maxp)
      integer i, nc, l, ntp


      nc = 0
      ntp = min(idx(j), maxppt)

      do i = 1, ntp
         l = si(i)
         if(l .gt. 0 ) then
            nc = nc + 1
            temp(nc) = f(l, j)
         endif
      enddo

      do i = 1, nc
         f(i, j) = temp(i)
      enddo

Here is the call graph for this function:

slice()

subroutine slice	(	real*4	mint,
		real*4	maxt,
		real*4	dt
	)

Definition at line 161 of file timeslice.f.

References d0, idx(), n, thinning(), true, x, y, and z.

      implicit none
#include "Zprivate2.f"

      real*4  mint, maxt, dt
      integer i, j, kk
      real*4  t,  k
      integer*2 code, chg
      integer it1, it2, kkk
      real*4  xx1, yy1, zz1, time1
      real*4  xx2, yy2, zz2, time2
      real*4  xxp, yyp
      real*4  kerg1, kerg2
      logical chkcode
      character* 120 input
      real*8 linec
      data linec/0.0/
      save linec

      chkcode = ncodes .gt. 0

      do j = 1, n
         idx(j) = 0
         thinc(j) = 0
      enddo

      do while (.true.)

         input = ' '
         read(11, '(a)', end=1000 )  input
         linec = linec + 1.d0
         if( mod(linec, 1.d7) .eq.  0 ) then
            write(0,*)
     *      ' ------------------------------------linec=',linec
#ifndef ABSOFT
            call flush(0)
#endif
         endif
         if( input .ne. " " ) then
            read(input, * ) xx1, yy1, zz1,   code, kerg1, chg,
     *         time1
            if(select .eq. 0) goto 100
!                  select all
            if( chgsel .ne. -1 )  then
!                  charge selection
               if(chgsel .eq. 0 .and. chg .ne. 0) goto 950
               if(chgsel .eq. 1 .and. chg .eq. 0) goto 950
            endif
            if( chkcode ) then
               do kkk = 1, ncodes
                  if(codesel(kkk) .eq. code) goto 100
               enddo
               goto 950
            endif
!
 100        continue
            do while( input .ne. " " )
               read(11, '(a)', end =1000)  input
               linec = linec + 1.d0
               if( mod(linec, 1.d7) .eq.  0 ) then
                  write(0,*)
     *            ' ------------------------------------linec=',
     *            linec
#ifndef ABSOFT
                  call flush(0)
#endif
               endif

               if( input .ne. " " ) then
                  read(input, * ) xx2, yy2, zz2,  code, kerg2, chg,
     *            time2
                  xxp = xx2*aax + yy2*aay   ! aaz =0
                  yyp = xx2*bbx + yy2*bby + zz2*bbz
                  it1 = (time1- mint)/dt +1
                  it2 = (time2- mint)/dt +1

                  if(xxp**2 + yyp**2 .gt. rmax2) goto 900
                  if(it1 .lt. 1) goto 900
                  if(it2 .gt. n) goto 900
                  if(time2 .gt. maxt) goto 900
                  jmin = min(jmin, it1)
                  jmax = max(jmax, it2)
                  do  j = it1, it2
                     t = j*dt + mint
                     if( idx(j) .eq. maxppt  .and.
     *                  thinc(j) .lt. maxthin ) then
                        write(0,*)
     *                    'ptcls at time=', t , ' > ',  maxppt
                        write(0,*)
#ifndef ABSOFT
                        call flush(0)
#endif
                        call thinning(j, j)
                        thinc(j) = thinc(j) + 1
                     endif
                     idx(j) = idx(j) + 1
                     if(idx(j) .le. maxppt) then
!                           (x2-x1)/(t2-t1) *(t-t1) +x1
                        if(time2 .eq. time1) then
                           k =0.
                        else
                           k = (t - time1) /(time2-time1)
                        endif
                        x(idx(j), j) = (xx2-xx1) * k + xx1
                        y(idx(j), j) = (yy2-yy1) * k + yy1
                        z(idx(j), j) = (zz2-zz1) * k + zz1
                        codex(idx(j), j) = code
                        chgx(idx(j), j) = chg
                     endif
                  enddo
 900              continue
                  xx1 = xx2
                  yy1 = yy2
                  zz1 = zz2
                  time1 = time2
               endif
            enddo
         endif
 950     continue
      enddo
 1000 continue

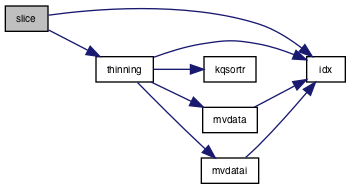

Here is the call graph for this function:

slice1tbin()

subroutine slice1tbin	(	real*4	mint,
		real*4	maxt,
		real*4	dt,
		real*4	pixelin,
		real*4	rmax
	)

Definition at line 116 of file timeslice.f.

References mkafile(), mkaskelfile(), mkfiles(), mkskelfiles(), n, slice(), and thinning().

Referenced by __timeslice.f__().

      implicit none
#include "Zprivate2.f"
      real*4  mint, maxt, dt, t1, t2, rmax, pixelin

      rmax2 = rmax**2
      t2 = mint
      pixel = pixelin
      do while (t2 .lt. maxt)
         t1 = t2
         t2 = min(t1+ dt*n , maxt)
         jmax = 0
         jmin = 10000000

         call slice(t1, t2, dt)
         write(0,*) ' t1=',t1, 't2=',t2, ' slice ended'
         write(0,*) ' maxppt=', maxppt
         call thinning(jmin, jmax)
         write(0,*) ' thinning ended'
         if(split) then
            if( ibits(outtype, 0, 1) .ne. 0) then
               call mkfiles
            endif
            if( ibits(outtype, 1, 1) .ne. 0) then
               call mkskelfiles
            endif
            write(0,*) ' all output finished'
         else
            if(ibits(outtype, 0, 1) .ne. 0) then
               call mkafile
            endif
            if(ibits(outtype, 1, 1) .ne. 0) then
               call mkaskelfile
            endif
            write(0,*) ' ouput to a file ended'
         endif
         rewind(11)
      enddo

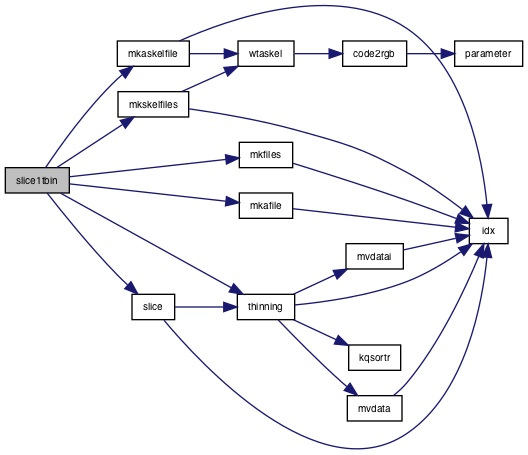

Here is the call graph for this function:

Here is the caller graph for this function:

thinning()

subroutine thinning	(	integer	i1,
		integer	i2
	)

Definition at line 287 of file timeslice.f.

References false, idx(), kqsortr(), mvdata(), mvdatai(), true, x, y, and z.

      implicit none
#include "Zprivate2.f"
!        culling overlapping points in a pixel
!           this is very rough thinning
!     sorr each x
      integer i1, i2
      integer nc, j, i, k1, k2, l, nc0
      logical  dothin
      integer ntp


      do j = i1, i2
         ntp= min(idx(j), maxppt)
         dothin = .false.
         if( ntp  .gt. maxppt/2.0 ) then
            call kqsortr(x(1,j), si, ntp)
            do i = 1, ntp-1
               k1 = si(i)
               if( k1  .lt. 0 ) goto 20
               do l = i+1,  ntp
                  k2 = si(l)
                  if(k2 .lt. 0) goto 10
                  if(abs(x(k1, j)- x(k2,j)) .gt. pixel ) goto 20
!                         since xx is sorted,  we may safe to skip
!                         further check
!
                  if(abs(y(k1, j)- y(k2,j)) .gt. pixel ) goto 10
                  if(abs(z(k1, j)- z(k2,j)) .gt. pixel ) goto 10
!                   remove  k2
                  si(l) = - k2
                  dothin = .true.
 10               continue
               enddo
 20            continue
            enddo
            if(dothin) then
               nc0 = ntp
               call mvdata(x, j, nc)
               call mvdata(y, j, nc)
               call mvdata(z, j, nc)
               call mvdatai(codex, j, nc)
               call mvdatai(chgx, j, nc)
               write(0,*)  ' at time idx=',j,
     *          ' thinning ', nc0, "-->", nc
#ifndef  ABSOFT
               call flush(0)
#endif
               idx(j) = nc
            endif
         endif
      enddo

Here is the call graph for this function:

wtaskel()

subroutine wtaskel	(	integer	fno,
		real*4, dimension(np)	xa,
		real*4, dimension(np)	ya,
		real*4, dimension(np)	za,
		integer*2, dimension(np)	code,
		integer*2, dimension(np)	chg,
		integer	np
	)

Definition at line 515 of file timeslice.f.

References code2rgb().

!
      implicit none
      integer fno, np
      real*4 xa(np),   ya(np), za(np)
      integer*2 code(np), chg(np)

      real  r, g, b, alpha
      integer i


      if(np .gt. 0) then
         write(fno, '(2i9)') np, np
         do i = 1, np
            write(fno, '(3g16.8)' ) xa(i), ya(i), za(i)
         enddo
         do i= 1, np
            call code2rgb(code(i), chg(i), r, g, b, alpha)
            write(fno, '("1 ", i8, 3f5.2)')
     *       i-1, r, g, b
         enddo
      endif

Here is the call graph for this function:
