cifXObsSite.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	cifxobssite (nextwhere)
subroutine	cifxhorizon (diffvec, unitv, cross, leng, seeupper)
subroutine	cifxperpen (unitv, cross, leng, seeupper)
subroutine	cdiffvec (r1, r2, diff)
subroutine	cxplsph (x0, y0, z0, l, m, n, r, el, icon)

Function/Subroutine Documentation

cdiffvec()

subroutine cdiffvec	(	type(coord)	r1,
		type(coord)	r2,
		type(coord)	diff
	)

Definition at line 414 of file cifXObsSite.f.

Referenced by cifxobssite().

!        get diff= r2-r1 as 3 D vector
#include      "Zcoord.h"
      type(coord)::r1
      type(coord)::r2  ! input
      type(coord)::diff     ! output.

      integer i

      do i = 1, 3
         diff%r(i) = r2%r(i) - r1%r(i)
      enddo

Here is the caller graph for this function:

cifxhorizon()

subroutine cifxhorizon	(	type(coord)	diffvec,
		type(coord)	unitv,
		logical	cross,
		real*8	leng,
		logical	seeupper
	)

Definition at line 118 of file cifXObsSite.f.

References borderh, borderl, c3dv2ddcos(), cerrormsg(), cscalerprod(), d0, and true.

Referenced by cifxobssite().

      implicit none
#include  "Ztrack.h"
#include  "Ztrackp.h"
#include  "Ztrackv.h"
#include  "Zincidentv.h"
#include  "Zobs.h"
#include  "Zobsp.h"
#include  "Zobsv.h"
#include  "Zearth.h"
#include  "Zcode.h"
!

      integer loc
      real*8  leng
      real*8  clen2thick

      logical cross, seeupper

      type(coord)::diffvec
      type(coord)::unitv
      type(coord)::unitp


      real*8 dummylen, r0, rp, obsrl,  cosp, dt2, m2
      real*8 coscr2, r0r
!

      loc =  trackbefmove%where

      r0 = obssites(loc)%pos%radiallen
      rp = trackbefmove%pos%radiallen
      dt2 =   rp**2 -  r0**2
      if(dt2 .lt. 0.d0) then
         if(dt2 .lt. -1.d0) then
            write(0,*) ' loc =',loc, ' r0=',r0, ' rp=',rp,
     *           ' dt2=',dt2, ' code=',trackbefmove%p%code,
     *           ' rp%h=', trackbefmove%pos%height,
     *           obssites(loc)%pos%height
            call cerrormsg('position info invalid',0)
         endif
         dt2 = abs(dt2)
      endif
!         this is cos^2 of zenith for a ptcl which touches the inner sphere (loc-th sphere)
      coscr2 = dt2 /rp**2

      call c3dv2ddcos(trackbefmove%pos%xyz, unitp, dummylen)
      call cscalerprod(unitv, unitp, cosp)
      cosp = -cosp
      seeupper = cosp .le. 0
      if(cosp .gt. 0) then
!             down going but not cross the lower sphere
         seeupper = cosp**2 .le. coscr2
      endif


      if(.not. seeupper ) then
         if(movedtrack%pos%radiallen .le. r0) then
!                 cross ; goes down
            cross = .true.
         else
!                get moved length  ^2
            call cscalerprod(diffvec, diffvec, m2)
            if(m2 .gt. dt2) then
!              double cross; first one is the nearest cross
               cross =.true.
            endif
         endif
      else
!                may see upper
         if(movedtrack%pos%radiallen .ge.
     *        obssites(loc-1)%pos%radiallen) then
!                 if loc=1, this means going outside of the borderH
               cross =.true.
         endif
      endif

      if(cross) then
!             get length, leng, from the starting point to
!             the observation depth
         call cscalerprod(unitv, trackbefmove%pos%xyz, r0r)
         if(seeupper) then
            obsrl = obssites(loc-1 )%pos%radiallen
            if(loc .eq. 1)  movestat=borderh
         else
            obsrl = obssites(loc)%pos%radiallen
            if(loc .eq. noofsites+1 )then
!                this seems not needed.
               movestat = borderl
            endif
         endif
!            get distance to the crossing point
         if(rp .gt. obsrl ) then
            leng = -r0r - sqrt(r0r**2 -
     *           (rp**2-obsrl**2))
         else
            leng = -r0r + sqrt(r0r**2 -
     *           (rp**2 - obsrl**2))
         endif
         leng = leng + 0.001d0
      endif

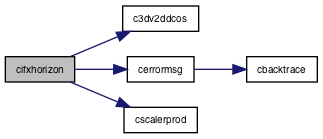

Here is the call graph for this function:

Here is the caller graph for this function:

cifxobssite()

subroutine cifxobssite

(

integer

nextwhere

)

Definition at line 2 of file cifXObsSite.f.

References borderh, borderl, c3dv2ddcos(), cdiffvec(), cifxhorizon(), cifxperpen(), cmovestreight(), cresetmombyedir(), false, notused, perpendicular, and tobeobserved.

Referenced by ctracking().

!         see if MovedTrack crosses an observation depth.
!         or go out of boundry.
!        if to be observed, reset MovedTrack information
      implicit none
#include  "Ztrack.h"
#include  "Ztrackp.h"
#include  "Ztrackv.h"
#include  "Zincidentv.h"
#include  "Zobs.h"
#include  "Zobsp.h"
#include  "Zobsv.h"
#include  "Zearth.h"
#include  "Zcode.h"
!
      integer nextwhere  ! output next where. to be used after ptcl
                         !  crosses an  observation  level.
!  for perpendicular case
!        cross       border
!   1      O       BorderL< Moved.Height <BorderH
!   2      X            //
!   3      O       M.H > B.H
!   4      O       M.H < B.L
!   5      X       M.H > B.H
!   6      X       M.H < B.L
!
      integer loc
      real*8  leng, dedt, cosfromaxis
      real*8  clen2thick

      logical cross, seeupper

      type(coord)::xyz1
      type(coord)::xyz2
      type(coord)::dircos
      type(coord)::diffvec
      type(coord)::unitv
      type(coord)::unitp

      type(coord)::temp

      real*8 dummylen, r0, rp, obsrl,  cosp, dt2, m2
      real*8 coscr2, r0r
      real*8 dedtf
!
      cross = .false.

      loc = trackbefmove%where

      if(intinfarray(processno)%length .gt. 0. ) then
!           later use
         call cdiffvec(trackbefmove%pos%xyz,
     *              movedtrack%pos%xyz, diffvec)
!           make it  to the unit vector    vector:  Bef  1--->2  Moved
         call c3dv2ddcos(diffvec, unitv, dummylen)
         if( obsplane .ne. notused ) then
            if( abs(obsplane) .eq. perpendicular ) then
               call cifxperpen(unitv,  cross, leng, seeupper)
            else
               call cifxhorizon(diffvec, unitv, cross, leng, seeupper)
            endif
         endif
      endif

      if(cross) then
         intinfarray(processno)%length = leng
         intinfarray(processno)%thickness = clen2thick(
     *     trackbefmove%pos%radiallen - eradius,
     *     trackbefmove%vec%coszenith, leng)

         call cmovestreight(leng, unitv)
         movedtrack%vec%w = unitv

!                      bef. replace, w for low energy electron
!                      may be largely scattered and even
!                      backward at the path end.
!                      At Xing point with obs. depth, this
!                      is not good.
!         if(MovedTrack.pos.height .le. BorderHeightL) then
!            write(0,*) MovedTrack.pos.height, BorderHeightL
!         MoveStat = BorderL
!            MovedTrack.where = NoOfSites+1


         if( movestat .ne. borderh .and. movestat .ne. borderl) then
            movestat = tobeobserved
            if(seeupper) then
               nextwhere = loc - 1
               movedtrack%where = nextwhere
            else
               movedtrack%where = loc
               nextwhere = loc + 1
            endif
         endif

         if(movedtrack%p%charge /= 0) then
!              sinc path has been cut, recalculate Energy loss
                ! get de/dx computed previously
            call cqelossrate(dedt, dedtf)
            energyloss = dedt * intinfarray(processno)%thickness
            movedtrack%p%fm%p(4) = trackbefmove%p%fm%p(4)-energyloss
            call cresetmombyedir(movedtrack)
!              reset Energyloss since E in MovedTrack might have been
!              reset to mass if energyloss was too big.
            energyloss = trackbefmove%p%fm%p(4)- movedtrack%p%fm%p(4)
         else
!             charge = 0
           ! nothing to   do. even path is cut, momenutum etc
!            dose not change.
         endif
      else
         nextwhere = loc
         movedtrack%where = loc
      endif

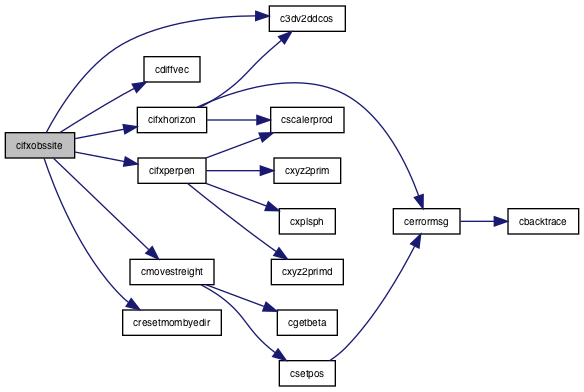

Here is the call graph for this function:

Here is the caller graph for this function:

cifxperpen()

subroutine cifxperpen	(	type(coord)	unitv,
		logical	cross,
		real*8	leng,
		logical	seeupper
	)

Definition at line 220 of file cifXObsSite.f.

References borderh, borderl, cscalerprod(), cxplsph(), cxyz2prim(), cxyz2primd(), d0, and true.

Referenced by cifxobssite().

      implicit none
#include  "Ztrack.h"
#include  "Ztrackp.h"
#include  "Ztrackv.h"
#include  "Zincidentv.h"
#include  "Zobs.h"
#include  "Zobsp.h"
#include  "Zobsv.h"
#include  "Zearth.h"
#include  "Zcode.h"
!


      real*8  leng
      logical cross, seeupper

      real*8  clen2thick,  cosfromaxis, leng2

      integer loc, i, icon
      type(coord)::xyz1
      type(coord)::xyz2
      type(coord)::dircos
      type(coord)::unitv

      loc = trackbefmove%where
!///////////
!      write(0,*) ' loc =', loc
!//////////
!
!           observation plane is perpendicular to primary
!           convert coord into 1ry system
      call cxyz2prim(obssites(noofsites)%pos%xyz,
     *     movedtrack%pos%xyz, xyz2)
      call cxyz2prim(obssites(noofsites)%pos%xyz,
     *     trackbefmove%pos%xyz, xyz1)
!      call cscalerProd(TrackBefMove.vec.w, DcAtObsXyz,
!     *     cosfromaxis)
      call cscalerprod(unitv, dcatobsxyz,
     *     cosfromaxis)

      seeupper = cosfromaxis .le. 0.
      if(.not. seeupper) then
!              current ptcl is down going
         if( loc .gt. noofsites ) then
            if( movedtrack%pos%height .le. borderheightl ) then
!                6
               movestat = borderl
               movedtrack%where = noofsites+1
               cross = .true.
            elseif( movedtrack%pos%height .ge. borderheighth ) then
!                5
               movestat = borderh
               movedtrack%where = 0
               cross = .true.
            endif
         else
            if(xyz1%r(3) .gt. obssites(loc)%zpl .and.
     *           xyz2%r(3) .le. obssites(loc)%zpl) then
               cross = .true.
            elseif( movedtrack%pos%height  .le. borderheightl )  then
!                escape from side  6
               cross = .true.
               movestat = borderl
               movedtrack%where = noofsites + 1
            elseif( movedtrack%pos%height  .ge. borderheighth )  then
!               escape from side 5
               cross = .true.
               movestat = borderh
               movedtrack%where = 0
            endif
         endif
      else
!            upgooing
         if(loc .eq. 1)  then
            if( movedtrack%pos%height  .ge. borderheighth )  then
!                   5
               movestat = borderh
               movedtrack%where = 0
               cross = .true.
            elseif(movedtrack%pos%height  .le. borderheightl )  then
!                  6
               movestat = borderl
               movedtrack%where = noofsites+1
               cross = .true.
            endif
         else
            if(xyz1%r(3) .lt. obssites(loc-1)%zpl .and.
     *           xyz2%r(3) .ge. obssites(loc-1)%zpl ) then
               cross = .true.
            elseif( movedtrack%pos%height  .ge. borderheighth )  then
!                 escaep from side  5
               cross = .true.
               movestat = borderh
               movedtrack%where = 0
            elseif( movedtrack%pos%height  .le. borderheightl )  then
!                 escape from side 6
               cross = .true.
               movestat = borderl
               movedtrack%where = noofsites + 1
            endif
         endif
      endif
!/////////////
!      write(0,*) ' see upper=',seeupper, ' cross=',cross
!      write(0,*) ' where=', MovedTrack.where
!      write(0,*) ' MoveStat=',MoveStat
!      write(0,*) ' BorderL=',BorderL, 'BorderH=',BorderH
!/////////////
      if(.not. cross ) then
!     *      .and. MovedTrack.pos.height .gt. BorderHeightL
!     *     .and.    MovedTrack.pos.height .lt. BorderHeightH ) then
!         most common  case; remain in the same layer; nothing to do
      elseif( cross .and. movestat .eq. borderl ) then
!         get length to the  x-ing point
         call cxplsph(
     *    trackbefmove%pos%xyz%r(1), trackbefmove%pos%xyz%r(2),
     *    trackbefmove%pos%xyz%r(3),
     *    unitv%r(1), unitv%r(2), unitv%r(3),
     *    borderheightl+eradius,  leng, icon)
!/////////////
!         write(0,*) ' 1 leng=',leng, ' icon=',icon
!//////////////
         leng = leng + 0.01d0
!         MovedTrack.where  = NoOfSites + 1
      elseif( cross .and. movestat .eq. borderh ) then
!         get length to the  x-ing point
         call cxplsph(
     *    trackbefmove%pos%xyz%r(1), trackbefmove%pos%xyz%r(2),
     *    trackbefmove%pos%xyz%r(3),
     *    unitv%r(1), unitv%r(2), unitv%r(3),
     *    borderheighth+eradius,  leng, icon)
!//////////
!         write(0,*) ' borderH leng=',leng, 'icon=',icon
!//////////////
         leng = leng + 0.01d0
      else
!
!           get length to the x-ing point
         call cxyz2primd(unitv, dircos)
         if(seeupper) then
            leng = (obssites(loc-1)%zpl - xyz1%r(3))/dircos%r(3)
         else
            leng = (obssites(loc)%zpl - xyz1%r(3))/dircos%r(3)
         endif
!/////////
!         write(0,*) ' 3  leng=',leng
!//////////
         leng = abs(leng)
!         leng = leng + abs(0.01d0/dircos.r(3))
         leng = leng + 0.01d0

         if( movedtrack%pos%height .gt. borderheightl  .and.
     *       movedtrack%pos%height .lt. borderheighth ) then
!             1
!            most  common cross case; if the track length is too long
!            this logic is not complete, but  we neglect such case
         elseif(  movedtrack%pos%height .ge. borderheighth ) then
!            3
!            must find shorter x-ing point
            call cxplsph(
     *       trackbefmove%pos%xyz%r(1), trackbefmove%pos%xyz%r(2),
     *       trackbefmove%pos%xyz%r(3),
     *       unitv%r(1), unitv%r(2), unitv%r(3),
     *       borderheighth+eradius,  leng2, icon)
!///////////
!            write(0,*) ' 3 leng2=',leng2, ' icon=',icon
!/////////////
            if( leng2 .lt. leng ) then
               leng = leng2
               movestat = borderh
            endif
         elseif(  movedtrack%pos%height .le. borderheightl ) then
!           4
!            must find shorter x-ng point
            call cxplsph(
     *       trackbefmove%pos%xyz%r(1), trackbefmove%pos%xyz%r(2),
     *       trackbefmove%pos%xyz%r(3),
     *       unitv%r(1), unitv%r(2), unitv%r(3),
     *       borderheightl+eradius,  leng2, icon)
!///////////
!            write(0,*) ' 4 leng2=',leng2, ' icon=',icon
!/////////////
            if( leng2 .lt. leng ) then
               leng = leng2
               movestat = borderl
            endif
         else
!            should not come
            write(0, *)  'logic error'
            stop
         endif
      endif

Here is the call graph for this function:

Here is the caller graph for this function:

cxplsph()

subroutine cxplsph	(	real*8	x0,
		real*8	y0,
		real*8	z0,
		real*8	l,
		real*8	m,
		real*8	n,
		real*8	r,
		real*8	el,
		integer	icon
	)

Definition at line 427 of file cifXObsSite.f.

Referenced by cifxperpen().

!          this is the same as kxplsph in Epics
      implicit none
      real*8  x0, y0, z0 ! input. the line passes this point
      real*8  l, m, n  !  input.  direc cos.  of  the line
      real*8  r        !  input.  radius of the sphere
      real*8  el       !  output. el>=0 distance to the
                       !          sphere  from  x0,y0,z0
      integer icon    !  output. icon =0.  x-point exists
                      !                  x0,.. is inside
                      !          icon = 1  x-point exists
                      !                  x0.. is outside
                      !                =-1.  no x-point

      real*8  rsqr, r0l, d
      integer icon1, icon2

      rsqr = x0**2 + y0**2 + z0**2 -r**2
      if(rsqr .le. 0.) then
!          inside
         icon2 = 0
      else
         icon2 = 1
      endif
      r0l = x0*l + y0*m + z0*n
      d = r0l**2 - rsqr
      if(d .ge. 0.) then
         d = sqrt(d)
         el = -r0l - d
         if(el .ge. 0.) then
            icon1 = 0
         else
            el = -r0l + d
            if(el .ge. 0.) then
               icon1 = 0
            else
               icon1 = 1
            endif
         endif
      else
         icon1 = 1
      endif
!
      if(icon2 .eq. 0) then
         icon = 0
      elseif(icon1 .eq. 0) then
         icon = 1
      else
         icon = -1
      endif

Here is the caller graph for this function:
