cmkIncident.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	cmkincident (incident, fin)
subroutine	cresetposang (incident)
subroutine	cresetprim (incidentp, angle)
subroutine	cresetprim2 (incident)
subroutine	cmkinc (incident, angle)
subroutine	cmkinc2 (incident)
subroutine	csetmintime (from)
subroutine	cqincident (incident, AngleAtObs)
subroutine	cuonsphere (ini, rin, teta, phi, oa1, oa2, pos)
subroutine	cifcutoff (icon)

Function/Subroutine Documentation

cifcutoff()

subroutine cifcutoff

(

integer

icon

)

Definition at line 556 of file cmkIncident.f.

References cerrormsg(), cos, cqincident(), crigcut(), d0, kdir2deg(), pi, and rndc().

Referenced by __testsampprim.f__(), and cmkincident().

        implicit none
#include "Zglobalc.h"
#include "Zobs.h"
#include "Zobsp.h"
#include "Zcode.h"
#include "Ztrack.h"
#include "ZrigCut.h"

         integer icon   !   output. 0 ==> not cut. 1 ==> cut.

         type(coord)::angleatob
         type(track)::inc

         real*8 p, rig, zen, azm, theta,  prob, u

         call cqincident(inc, angleatob)

         if(inc%p%charge .eq. 0) then
            icon = 0
         else
            if(rdatafmt .le. 4) then
!              angleatOb is down going ptcl's one, change sign
               angleatob%r(1) = - angleatob%r(1)
               angleatob%r(2) = - angleatob%r(2)
               angleatob%r(3) = - angleatob%r(3)
!                 convert to theta fai in deg
               call kdir2deg(angleatob%r(1), angleatob%r(2),
     *          angleatob%r(3), theta, azm)
!
!                 azm is given from the current x-axis  (+ is counter
!                 clock wise) The x-axis is XaxisFromSouth
!                 degrees from the south in counter clockwise.
!                 convert azm so that measured from the south
!
               azm = mod(azm+ xaxisfromsouth, 360.d0)
               if(zenvalue .eq. 'cos') then
!                    table zenith is in cos
                  zen = angleatob%r(3)
               else
                  zen = theta
               endif
            elseif(rdatafmt .eq. 5) then
!                 in this case, azm is longitude; zen is latitude or cos(lati)
!
!               zen =  atan2( inc.pos.xyz.z,
!     *                sqrt(inc.pos.xyz.x**2+inc.pos.xyz.y**2) )
               zen =  atan2( inc%pos%xyz%r(3),
     *                sqrt(inc%pos%xyz%r(1)**2+inc%pos%xyz%r(2)**2) )
               if(zenvalue .eq. 'cos') then
                  zen = cos( zen-pi/2.0d0 )
               else
                  zen = zen*todeg
               endif
!               azm = atan2(inc.pos.xyz.y, inc.pos.xyz.x)*Todeg
               azm = atan2(inc%pos%xyz%r(2), inc%pos%xyz%r(1))*todeg
            else
               call cerrormsg('dataformat for cut off invalid',0)
            endif

            p = sqrt(inc%p%fm%p(4)**2 - inc%p%mass**2)
            rig = p/abs(inc%p%charge)
            call crigcut(azm, zen, rig, prob)
            call rndc(u)
            if(u .lt. prob) then
               icon = 0
            else
               icon = 1
            endif
         endif

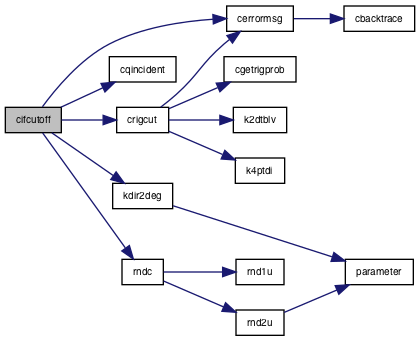

Here is the call graph for this function:

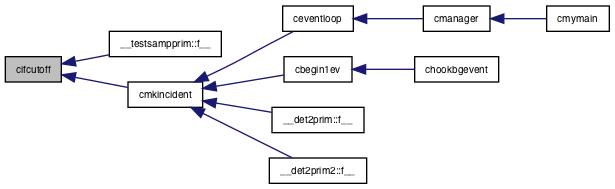

Here is the caller graph for this function:

cmkinc()

subroutine cmkinc	(	type(track)	incident,
		type(coord)	angle
	)

Definition at line 246 of file cmkIncident.f.

References ce2p(), cerrormsg(), csetdircos(), csetmintime(), csetpos(), ctransvectzx(), kgnuc, notused, perpendicular, and spherical.

Referenced by __testsampprim.f__(), cmkincident(), and cresetprim().

      implicit none
!
#include  "Zglobalc.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"
#include  "Zobs.h"
#include  "Zobsp.h"
#include  "Zobsv.h"
#include  "Zincidentp.h"
#include  "Zincidentv.h"
#include  "Zearth.h"
#include  "Zcode.h"
      type(track)::incident ! input/outut.
!             must have E, m, code, subcode, charge
      type(coord)::angle    ! input. must have direction cos in the det. sys.
      type(coord)::xyz
!
!
      real*8 to100km, clenbetween2h, zenithcos, len
      integer i, j

      angleatobscopy = angle
      if(reverse .ne. 0 ) then
!           to see  cut off or to see if go out of Earth
         do i = 1, 3
            angleatobscopy%r(i) =  - angleatobscopy%r(i)
         enddo
!             charge conjugate
         incident%p%charge = -incident%p%charge
         if(incident%p%code .ne. kgnuc) then
            incident%p%subcode = -incident%p%subcode
         endif
      endif
!           convert it to 'xyz' system
      call ctransvectzx(1, detzaxis, detxaxis, angleatobscopy,
     *    dcatobsxyz)
!
      incident%pos%xyz%sys = 'xyz'  !  Exyz system
!      --- fix injection point ---
!      get length from the deepest obs. place + OffsetHeight to
!          HeightOfInj (=100 km); Normally OffsetHeight is 0.
!         if the primary is to be directed to different height
!         than the detector, make it non zero.
      zenithcos = - angleatobscopy%r(3)
      if(obsplane .ne. spherical) then
         to100km = clenbetween2h(
     *    obssites(noofsites)%pos%radiallen + offsetheight,
     *    eradius + heightofinj,  zenithcos )  ! we need zenith angle here
      else
!           dummy
         to100km = 10000.
      endif

!         primary is going upward even if Reverse = 0.
      upgoing = reverse .eq. 0 .and. zenithcos .lt. 0.
     *   .and. heightofinj .lt. obssites(noofsites)%pos%height

      if(( reverse .eq. 0 .and. zenithcos .lt. 0.
     *  .and.  heightofinj .gt. obssites(noofsites)%pos%height)
     *  .or. ( reverse .ne. 0 .and. zenithcos .gt. 0.)) then
         if(obsplane .ne. spherical) then
!            distance to the conjugate point
            to100km = to100km -
     *       2*(obssites(noofsites)%pos%radiallen + offsetheight)*
     *       zenithcos
!             we should go reversed direction
            to100km = - to100km
         endif
      endif
!           injection point
      do i = 1, 3
         incident%pos%xyz%r(i) = obssites(noofsites)%pos%xyz%r(i)
     *    + offset%r(i)  + to100km * dcatobsxyz%r(i)
      enddo
      call csetpos(incident%pos)
      call csetdircos(dcatobsxyz, incident)   ! set dc and coszenith in incident
!           momentum business
      call ce2p(incident)    !  px, py, pz   from direction cos

!          set time 0
      incident%t = 0.
      incident%wgt = 1.       ! weight is 1.


      do i = 1, noofsites
!               correction for Perpendicular : 2004/07/19
         if( obsplane .eq. perpendicular ) then
!            fixing incident.where later.
         elseif( obsplane .ne. notused ) then
            if( heightofinj .gt. obssites(i)%pos%height ) then
               incident%where = i
               goto 222
            endif
         endif
      enddo
      if(heightofinj .lt. borderheightl) then
         call cerrormsg('Injection height is < BorderHeightL',0)
      endif
      incident%where = noofsites + 1
 222  continue
      if(heightofinj .gt. borderheighth) then
         call cerrormsg('Injection height is > BorderHeightH',0)
      endif


      incident%asflag = 0
      incident%pos%colheight = infty  ! latest nuc. collision height
      incidentcopy = incident

!           shift the origin of detectors to be on the primary track
!           if OffsetHight=0
      if(offsetheight .eq. 0. .and. obsplane .ne. spherical) then
         if(zenithcos .ge. 0. .or. upgoing) then
            do i = 1, noofsites-1
               len = clenbetween2h(
     *              obssites(noofsites)%pos%radiallen,
     *              obssites(i)%pos%radiallen,
     *              zenithcos )

               do j = 1, 3
                  obssites(i)%pos%xyz%r(j) =
     *            obssites(noofsites)%pos%xyz%r(j)
     *             + len * dcatobsxyz%r(j)

               enddo
            enddo
            do i = 1, noofassites-1
               len = clenbetween2h(
     *         asobssites(noofassites)%pos%radiallen,
     *         asobssites(i)%pos%radiallen,
     *         zenithcos )
               do j =1 , 3
                  asobssites(i)%pos%xyz%r(j) =
     *                asobssites(noofsites)%pos%xyz%r(j)
     *                + len * dcatobsxyz%r(j)
               enddo
            enddo
         endif
      endif
!          compute min time from  the injection point to each
!         obs level.
      if(obsplane .ne. spherical) then
         call csetmintime(incident)
         if(heightofinj .lt. borderheightl) then
            call cerrormsg('Injection height is < BorderHeightL',0)
         endif
      endif

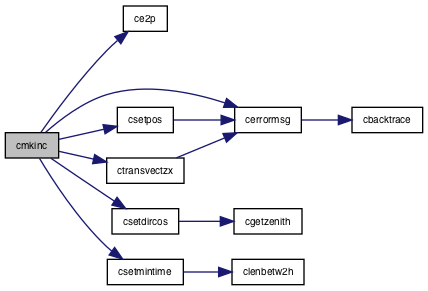

Here is the call graph for this function:

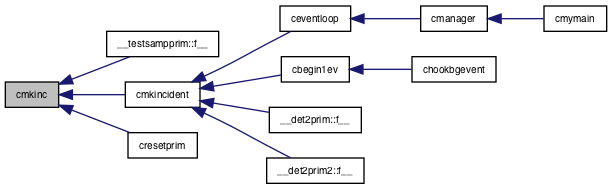

Here is the caller graph for this function:

cmkinc2()

subroutine cmkinc2

(

type(track)

incident

)

Definition at line 398 of file cmkIncident.f.

References ce2p(), cgetzenith(), csetpos(), and false.

Referenced by cresetprim2().

!          this may be used when incident is ready (
!       even when   ObsPlane==spherical)
!      incident must have:
!          incident.p:   code, subcode, mass, energy
!          incident.pos: xyz.r(1), xyz.r(2), xyz.r(3) in E-xyz
!          incident.vec: w.r(1), w.r(2), w.r(3)   in E-xyz
!          incident.where:  from which height the incident particle
!                           crosses ?
!          Otheres are set here.

      implicit none
!
#include  "Zglobalc.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"
#include  "Zobs.h"
#include  "Zobsp.h"
#include  "Zobsv.h"
#include  "Zincidentp.h"
#include  "Zincidentv.h"
#include  "Zearth.h"

      type(track)::incident ! input
!
!
      incident%pos%xyz%sys = 'xyz'  !  Exyz system
!
      upgoing = .false.

      call csetpos(incident%pos)
      call cgetzenith(incident, incident%vec%coszenith)
!      call csetDirCos(DcAtObsXyz, incident)   ! above is o.k
!           momentum business
      call ce2p(incident)    !  px, py, pz   from direction cos

!          set time 0
      incident%t = 0.
      incident%wgt = 1.       ! weight is 1.


      incident%asflag = 0
      incident%pos%colheight = infty  ! latest nuc. collision height
      incidentcopy = incident

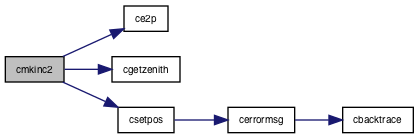

Here is the call graph for this function:

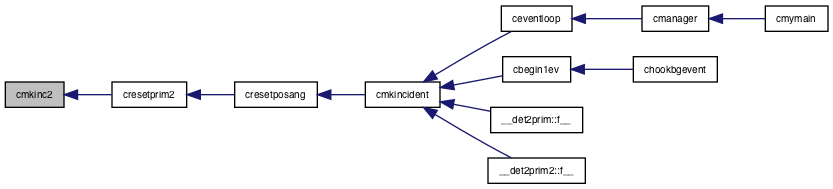

Here is the caller graph for this function:

cmkincident()

subroutine cmkincident	(	type(track)	incident,
		integer	fin
	)

Definition at line 5 of file cmkIncident.f.

References cifcutoff(), cmkinc(), cresetposang(), csampprimary(), csprimang(), cupdtprimc(), and spherical.

Referenced by __det2prim.f__(), __det2prim2.f__(), cbegin1ev(), and ceventloop().

      implicit none
!
!     incident:  /track/.  output.   incident particl with track information.
!               copy of it is saved as 'IncidentCopy', and can be
!               inquired by call cqIncident(...)
!
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Zmanagerp.h"
#include  "Zobs.h"
#include  "Zobsp.h"

      type(track)::incident
      integer fin  ! output. if 1, no more simulation
      type(coord)::angle

      integer icon
!

      icon = 1



      do while (icon .ne. 0)
!          sample energy, mass, code (mometum is not given)
         call csampprimary(incident%p, fin)
!            DestEventNo is < 0; and cutoffed 1ry is counted, too
!           fin==1-->  all events generated
         if(fin .eq. 1) goto 10

!          If ObsPlane != spherical, fix angle at observation level
!          in detector system.
!          If ObsPlane = spherical, do the same tentatively.
!            (in this case Za1ry == 'is' or 'cos' guaranteed).

         call csprimang(angle)   ! angle is in det sys
         call cmkinc(incident, angle)
#if LABELING > 0
         incident%info = 0
         incident%label = 0
#endif
!
         if(obsplane .eq. spherical) then
!              reset position and angle.

            call cresetposang(incident)
         endif
         if(cutofffile .ne. ' ') then
            call cifcutoff(icon)
         else
            icon =0
         endif
         if(icon .eq. 0) then
            if(job .ne. 'newflesh') then
!
!                  for newflesh, next is managed by chookBgEvent
!
               eventsintherun = eventsintherun + 1
               if(job .ne. 'flesh') then
                  eventno = eventno + 1
               endif
            endif
            call cupdtprimc  ! update counter for each comp.
                             ! which is not rejected.
         elseif( desteventno(2) .lt. 0 ) then
            if(job .ne. 'newflesh') then
               eventsintherun = eventsintherun + 1
               if(job .ne. 'flesh') then
                  eventno = eventno + 1
               endif
            endif
         endif
      enddo

 10   continue

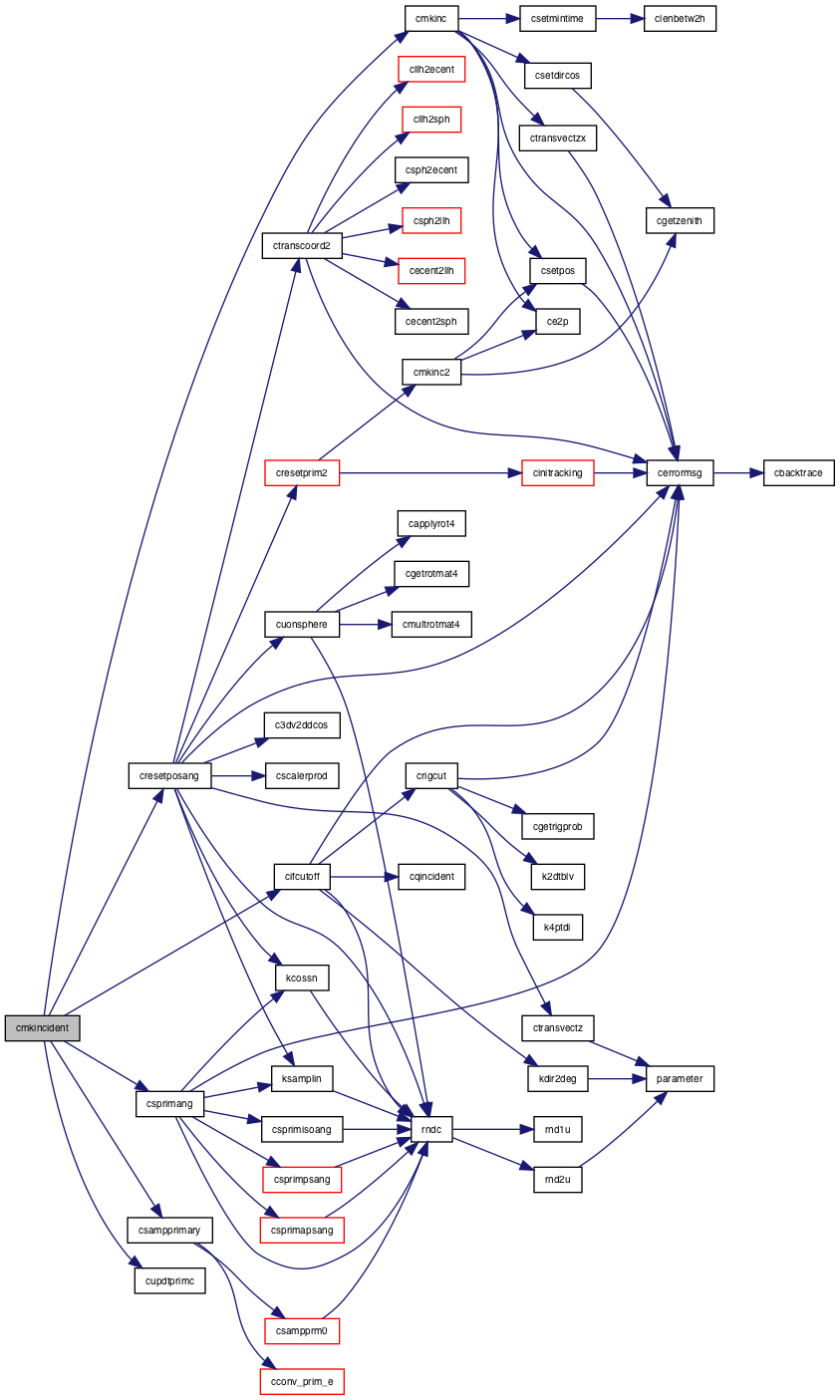

Here is the call graph for this function:

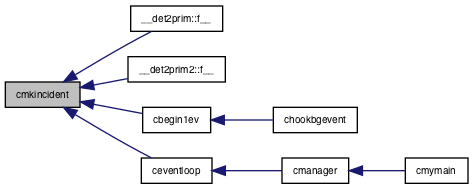

Here is the caller graph for this function:

cqincident()

subroutine cqincident	(	type(track)	incident,
		type(coord)	AngleAtObs
	)

Definition at line 486 of file cmkIncident.f.

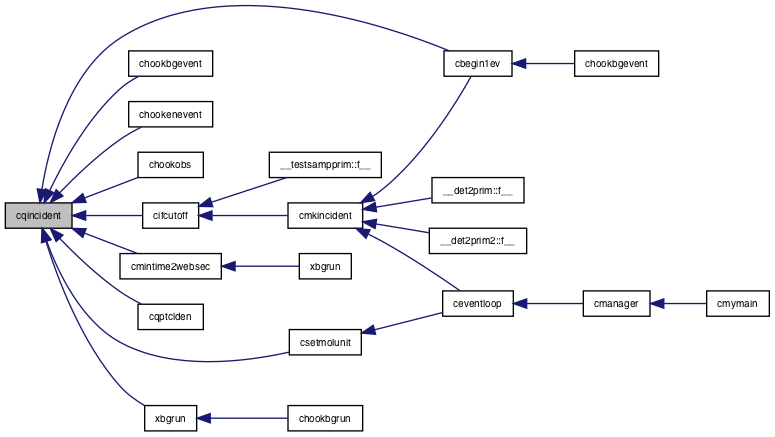

Referenced by cbegin1ev(), chookbgevent(), chookenevent(), chookobs(), cifcutoff(), cmintime2websec(), cqptclden(), csetmolunit(), and xbgrun().

!     ***************************
      implicit none
#include  "Ztrack.h"
#include  "Zincidentv.h"
      type(track)::incident
      type(coord)::angleatobs
      incident = incidentcopy
      angleatobs = angleatobscopy

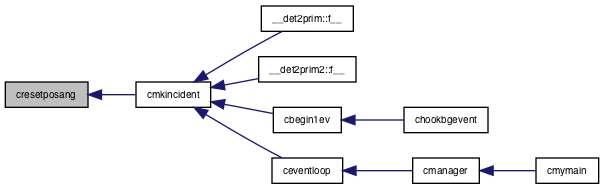

Here is the caller graph for this function:

cresetposang()

subroutine cresetposang

(

type(track)

incident

)

Definition at line 90 of file cmkIncident.f.

References c3dv2ddcos(), cerrormsg(), coszenith, cresetprim2(), cscalerprod(), ctranscoord2(), ctransvectz(), cuonsphere(), d0, false, kcossn(), ksamplin(), rndc(), and true.

Referenced by cmkincident().

      implicit none
!      After doing tentative business for energy, angle and
!      incident position for ObsPlnae != spherical,  this is
!      is used to reset incident position and angle for
!      spherical case.
!
!      The incident position is uniform around a point given by the
!      (Latit, Longit, HeightOfInj)=PolarInjPos.  It will be  distributed
!      within  the half opnenig angle range given by Azimuth.
!      (if it is > 180, regarded as 180.  Hence, if Azimuth=(45,90),
!      incident position will be a ring like region on  a
!      sphere.)
!      As to the zenith angle at the incident position,
!      it is determined isotropically from CosZenith.  Azimuth is
!      not used for this purpose.  Therefore, if zenith angle >= 90,
!      we will discard such particles. Hence, Imag(CosZenith)
!      must be > 0.
!
!
#include  "Zglobalc.h"
#include  "Ztrack.h"
#include  "Ztrackp.h"
#include  "Zobs.h"
#include  "Zobsv.h"
#include  "Zincidentp.h"

!
      type(track)::incident  ! input/output.
      type(coord)::incipos
      type(coord)::dir1
      type(coord)::dir2
      logical first
      real*8 len, cs, sn, sint, u, oa1, oa2

!     @@@@@@@@@@@@@For  bug correction to ObsPlane=3
      real*8 cosx, ux
!     @@@@@@@@@@@@@@

      data first/.true./
      save first

!         fix position
      oa1 = real(azimuth)
      oa2 = imag_p(azimuth)
!        if we don't use oa1, oa2 but use real(..) directly in
!        the subroutine call, Absoft compiler give always 0 for
!        oa1
!
      cosx = 2.      ! @@@@@@@@@
      ux = 0.        ! @@@@@@@@@
      do while (cosx .gt. -ux)  !@@@@@@@@@
         if(first) then
            call cuonsphere(1, polarinjpos%r(3), polarinjpos%r(1),
     *           polarinjpos%r(2), oa1, oa2,  incident%pos%xyz)
            first =.false.
         else
!               this is quicker a bit
            call cuonsphere(2, polarinjpos%r(3), polarinjpos%r(1),
     *      polarinjpos%r(2),  oa1, oa2, incident%pos%xyz)
         endif
!           fix angle around zenith at incident.pos.xyz
!            convert PolarInjPos to xyz vector
         call ctranscoord2('xyz', incident%pos%xyz, incipos)
!            convert its direction to direction cos
         call c3dv2ddcos(incipos, dir1, len)
!            sample angle around dir1 (x,y axes arbitrary)
         call rndc(u)
         if(za1ry .eq. 'is') then
            dir2%r(3) =  -(  (imag_p(coszenith)- real(CosZenith) )*u +
     *             real(CosZenith) )    ! going down is negative
         elseif(za1ry .eq. 'cos') then
!                  cos dcos
            call ksamplin(1.0d0, 0.0d0,
     *       real(CosZenith), imag_p(coszenith), dir2%r(3))
            dir2%r(3) = -dir2%r(3) ! going down is negative
         else
            call cerrormsg('Za1ry =', 1)
            call cerrormsg(za1ry, 1)
            call cerrormsg(
     *      ' for ObsPlane=3 is invalid; must be: "is" or "cos"',0)
         endif
         call rndc(u)
         call kcossn(cs, sn)
         sint = sqrt(1.d0-dir2%r(3)**2)
         dir2%r(1) = - sint*cs  ! - is needed for going down ptcl.
         dir2%r(2) = - sint*sn
!         convert it to xyz system
         call ctransvectz(dir1, dir2, incident%vec%w)
!     @@@@@@@@@@@@@@@
         call cscalerprod(incident%vec%w, dir1, cosx)
         call rndc(ux)
      enddo
!     @@@@@@@@@@@@@@@
!                uv 5.51
      if(reverse .ne. 0) then
!          we must revert the angle
         dir2%r(1) = -dir2%r(1)
         dir2%r(2) = -dir2%r(2)
         dir2%r(3) = -dir2%r(3)
         call ctransvectz(dir1, dir2, incident%vec%w)
      endif

!         reset others
      call cresetprim2(incident)

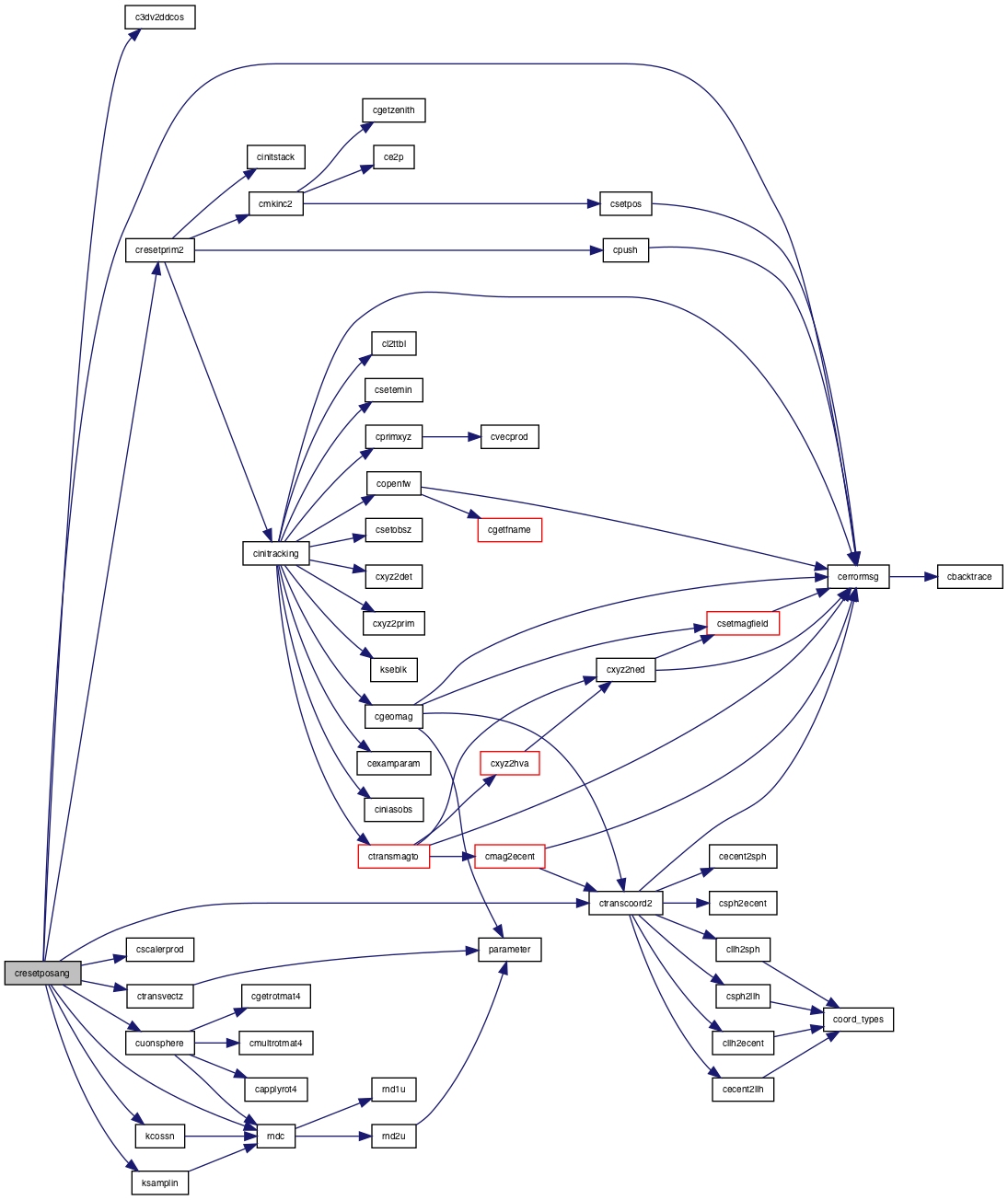

Here is the call graph for this function:

Here is the caller graph for this function:

cresetprim()

subroutine cresetprim	(	type(ptcl)	incidentp,
		type(coord)	angle
	)

Definition at line 197 of file cmkIncident.f.

References cinitracking(), cinitstack(), cmkinc(), and cpush().

      implicit none
!        reset primary.  This is typically used by the user,
!        at chookBgEvent to reset the primary which has been
!        set by the sytem so that the user can set own primray.
!
#include  "Ztrack.h"
      type(ptcl)::incidentp ! input. must have E, mass, charge,subcode
      type(coord)::angle  ! input. direction cos at 'det' system
!
      type(track)::inc2
#if defined (KEKA) || defined (KEKB)
!  for IBM, we must  write as follows.
      inc2%p%charge=incidentp%charge
      inc2%p%subcode=incidentp%subcode
      inc2%p%fm%p(4) = incidentp%fm%p(4)
      inc2%p%mass = incidentp%mass
#else
      inc2%p = incidentp
#endif
      call cmkinc(inc2, angle)
      call cinitracking( inc2 )
      call cinitstack
      call cpush(inc2)

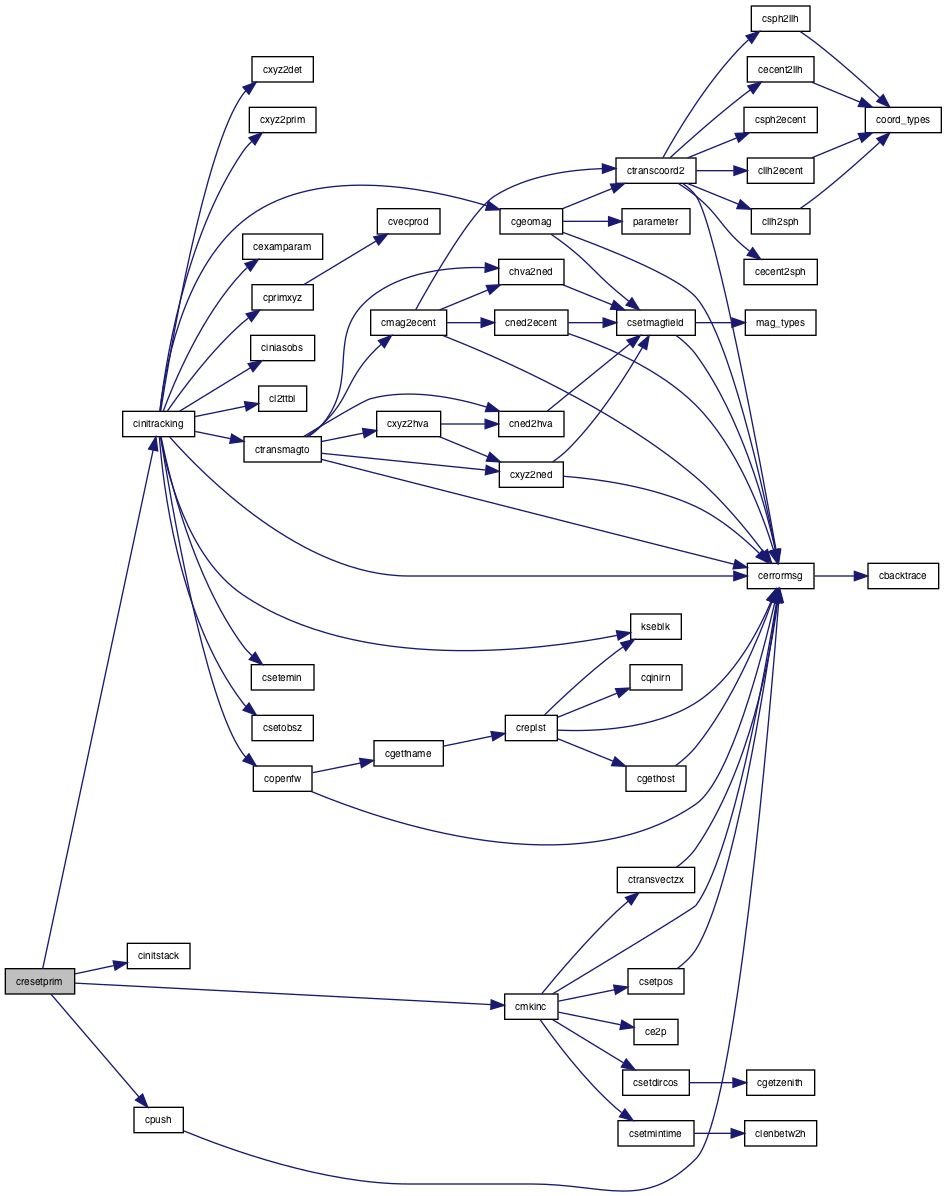

Here is the call graph for this function:

cresetprim2()

subroutine cresetprim2

(

type(track)

incident

)

Definition at line 223 of file cmkIncident.f.

References cinitracking(), cinitstack(), cmkinc2(), and cpush().

Referenced by cresetposang().

      implicit none
!        reset primary.  This is typically used by the user,
!        at chookBgEvent to reset the primary which has been
!        set by the sytem so that the user can set own primray.
!     The difference from cresetPrim is that the parameter is
!     track, and  this is for
!     ObsPlane==spherical case where you can put very arbitrary
!     incdint injection point.
!          See cmkInc2 for what you must set for incident.
!
#include  "Ztrack.h"
!
      type(track)::incident  ! input. you must give everything
!                                       about primary

      call cmkinc2(incident)
      call cinitracking( incident )
      call cinitstack
      call cpush(incident)

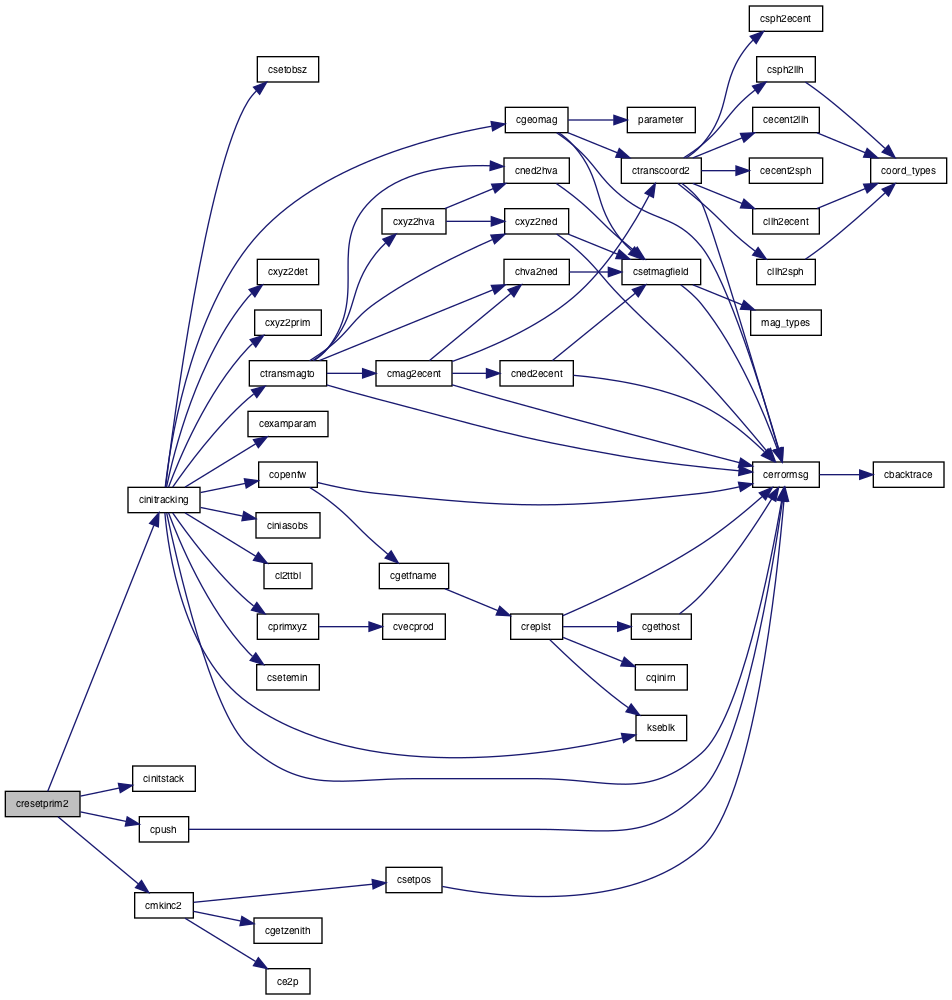

Here is the call graph for this function:

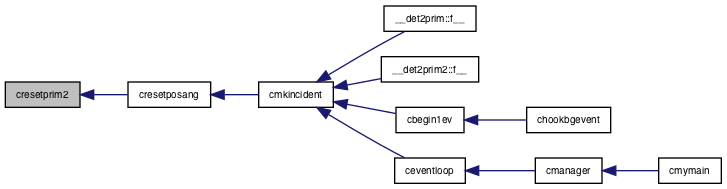

Here is the caller graph for this function:

csetmintime()

subroutine csetmintime

(

type(track)

from

)

Definition at line 448 of file cmkIncident.f.

References clenbetw2h().

Referenced by cmkinc(), and cresettimer().

      implicit none
!
!
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Zobs.h"
#include  "Zobsp.h"
#include  "Zobsv.h"
#include  "Zincidentp.h"
#include  "Zincidentv.h"
!#include  "Zearth.h"

      type(track)::from   ! input.  track to be origin

      real*8 leng
!        clenbetween2h, leng
      integer i, icon

      do i = 1, noofsites
!         ObsSites(i).minitime =
!     *       clenbetween2h(from.pos.radiallen,
!     *       ObsSites(i).pos.radiallen,
!     *       from.vec.coszenith)    ! actually this is in m.
         call clenbetw2h(from%pos%radiallen,
     *       obssites(i)%pos%radiallen, from%vec%coszenith,
     *       leng, icon)     ! actually leng is in m.
         if(icon .eq. 0) then
            obssites(i)%minitime = leng
         else
!              icon !=0 ==> light cannot come with this angle
            obssites(i)%minitime = 1.d10
         endif
      enddo

      from%t = 0.    ! reset time of incident track.

Here is the call graph for this function:

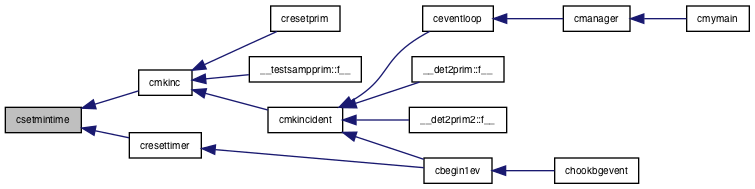

Here is the caller graph for this function:

cuonsphere()

subroutine cuonsphere	(	integer	ini,
		real*8	rin,
		real*8	teta,
		real*8	phi,
		real*8	oa1,
		real*8	oa2,
		type(coord)	pos
	)

Definition at line 497 of file cmkIncident.f.

References capplyrot4(), cgetrotmat4(), cmultrotmat4(), cos, d0, pi, and rndc().

Referenced by cresetposang().

      implicit none
#include "Zglobalc.h"
#include "Zptcl.h"
#include "Zcoord.h"
!         This is a modified version of epuonSphere in Epics
!         generate a random point uniformly distributed on the
!         surface of a sphere.  Points are distributed around
!         given polar angles (teta, phi) within a given opening angle
!        (oa1~oa2).
!    By uniform  is meant that the points are uniformly distributed on
!    the surface of the sphere but not on a projected plane.
!
      integer ini     ! input
                      !  1-->  teta and phi are different from
                      !        previous call or this is the first call.
                      !  != 1 -->  teta, and phi are the same as
                      !        the previous call.
      real*8  rin           ! input.  radius of the sphere
      real*8  teta           ! input.  polar angle in degree
      real*8  phi            ! input.  azimutal angle in degree
      real*8  oa1            ! input.  starting half opnening angle in degree
      real*8  oa2            ! input.  ending half opnening angle in degree
      type(coord)::pos     ! output. an  obtained random point in Exyz

      type(fmom)::xyz
      type(fmom)::xyz2
      real*8  a(4, 4), b(4, 4), ba(4, 4)
      real*8  u, r
      real*8 fcos,  fsin
      save ba

      r = rin *0.999999999d0
      if(ini .eq. 1) then
         call cgetrotmat4(2, -teta*torad, a)
         call cgetrotmat4(3, -phi*torad, b)
         call cmultrotmat4(b, a, ba)
      endif

      call rndc(u)
      fcos = cos( min(oa2,180.d0) * torad)
      fcos = ( cos( min(oa1,180.d0)*torad ) - fcos) * u +  fcos
      fsin = sqrt(1.d0- fcos**2)
      call rndc(u)
      u = u*pi*2
      xyz%p(1) = r * (fsin * cos(u))
      xyz%p(2) = r * (fsin * sin(u))
      xyz%p(3) = r * fcos

      xyz%p(4) =  1. ! dummy
      call capplyrot4(ba, xyz, xyz2)
      pos%r(1) = xyz2%p(1)
      pos%r(2) = xyz2%p(2)
      pos%r(3) = xyz2%p(3)


      pos%sys = 'xyz'

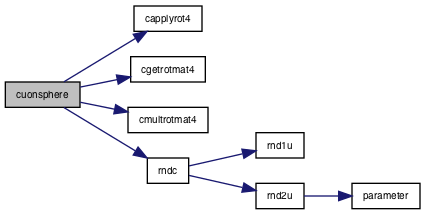

Here is the call graph for this function:

Here is the caller graph for this function:
