cnbdcy.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	cnbdcy (n, ecm, p, jw, w, icon)
subroutine	cnbdct (n, p)
subroutine	cnbdc1 (n, p)
subroutine	cnbdc2 (n, ecm, p)
subroutine	cnbdc3 (n, ecm, p, mu, inm, gzai, icon)
subroutine	cnbdcf (n, ecm, p,
subroutine	cnbdc4 (n, p, mu, inm, gzai)
subroutine	cnbdc5 (n, ecm, p, wx)
subroutine	cnbdc6 (n, ecm, w0)
subroutine	cnbdc7 (n, ecm, p, wmax)

Function/Subroutine Documentation

cnbdc1()

subroutine cnbdc1	(	integer	n,
		type(ptcl), dimension(n)	p
	)

Definition at line 177 of file cnbdcy.f.

References d0, kcossn(), rndc(), and true.

Referenced by cnbdcy().

       implicit none
!            generate massless ptcls isotropically without conservation
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n
       type(ptcl):: p(n)
!
       integer i
       real*8 u1, u2, u, cs, sn, cst, snt
       do   i=1, n
!             *** until loop***
             do while (.true.)
                 call rndc(u1)
                 call rndc(u2)
                 u=u1*u2
                if(u .gt. 0.) goto 10
             enddo
   10        continue
             p(i)%fm%p(4) = -log(u)
             call kcossn(cs, sn)
             call rndc(u)
             cst=2*u-1.d0
             snt=sqrt(1. - cst**2)
             p(i)%fm%p(1) = p(i)%fm%p(4)*snt*cs
             p(i)%fm%p(2) = p(i)%fm%p(4)*snt*sn
             p(i)%fm%p(3) = p(i)%fm%p(4)*cst
           enddo

Here is the call graph for this function:

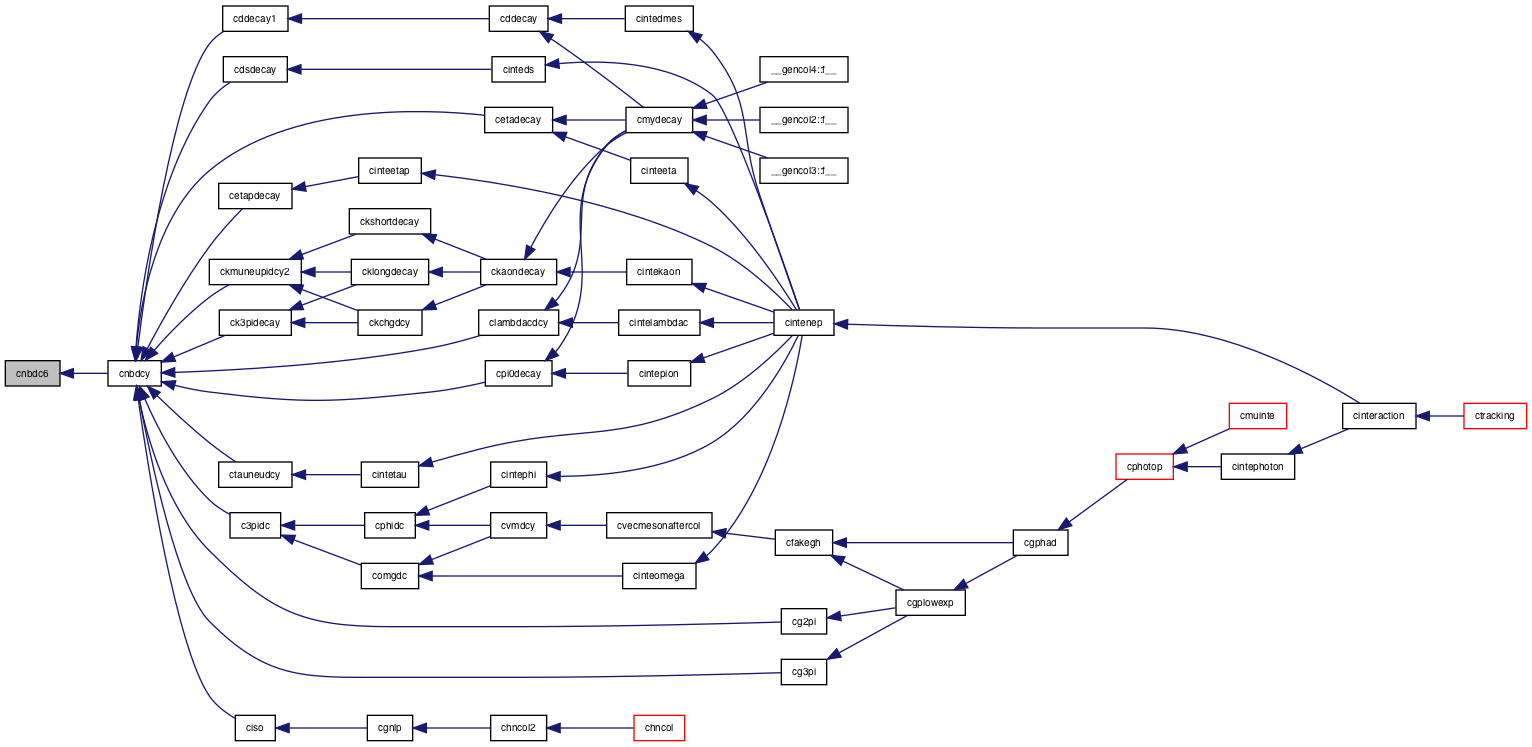

Here is the caller graph for this function:

cnbdc2()

subroutine cnbdc2	(	integer	n,
		real*8	ecm,
		type(ptcl), dimension(n)	p
	)

Definition at line 206 of file cnbdcy.f.

References d0.

Referenced by cnbdcy().

!             conformal transformation to conserve 4-momentum
       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n
       type(ptcl):: p(n)
       real*8 ecm
!
       real*8 sumx, sumy, sumz, sume, em, g
       real*8 a, x, bx, by, bz, bq, pe, tmp, px, py, pz
       integer i
!
       sumx=0.d0
       sumy=0.d0
       sumz=0.d0
       sume=0.d0
       do   i=1, n
          sumx=sumx+p(i)%fm%p(1)
          sumy=sumy+p(i)%fm%p(2)
          sumz=sumz+p(i)%fm%p(3)
          sume=sume+p(i)%fm%p(4)
       enddo
       em=sqrt( sume**2 - (sumx**2+sumy**2+sumz**2) )
       g=sume/em

       a=1.d0/(1.d0+g)
       x=ecm/em
       bx=-sumx/em
       by=-sumy/em
       bz=-sumz/em
!
       do   i=1, n
          bq=bx*p(i)%fm%p(1) + by*p(i)%fm%p(2) + bz*p(i)%fm%p(3)
          pe=x*(g*p(i)%fm%p(4) +bq)
          tmp=p(i)%fm%p(4)+a*bq
          px=x*(p(i)%fm%p(1) +   tmp*bx)
          py=x*(p(i)%fm%p(2) +   tmp*by)
          pz=x*(p(i)%fm%p(3) +   tmp*bz)
          p(i)%fm%p(1)=px
          p(i)%fm%p(2)=py
          p(i)%fm%p(3)=pz
          p(i)%fm%p(4)=pe
        enddo

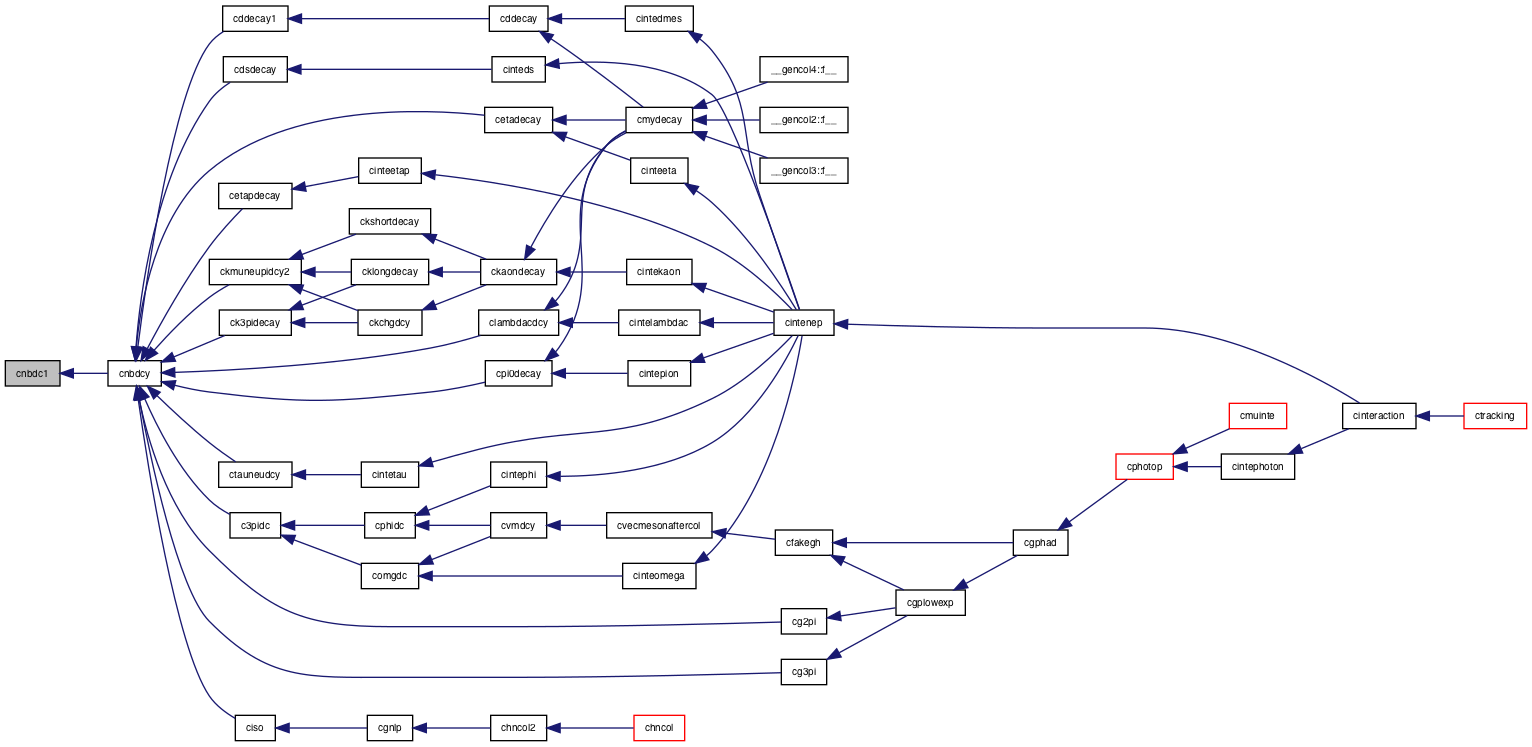

Here is the caller graph for this function:

cnbdc3()

subroutine cnbdc3	(	integer	n,
		real*8	ecm,
		type(ptcl), dimension(n)	p,
		real*8, dimension(inm, n)	mu,
		integer	inm,
		real*8	gzai,
		integer	icon
	)

Definition at line 252 of file cnbdcy.f.

References cnbdcf(), d0, and true.

Referenced by c1pion(), and cnbdcy().

!             get gzai to transform massive case
!             put inm=0 if all mu are the same.
!      ***********************************************
       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n, inm, icon
       type(ptcl):: p(n)
       real*8 ecm, mu(inm, n), gzai
!
       real*8 eps/1.d-3/, f, fp, fow
       integer nr
!           initial guess of gzai
       gzai=.85d0
       nr=0
!          *** until loop***
       do while (.true.)
               call cnbdcf(n, ecm, p,  mu, inm,  gzai, f, fp)
               gzai=  gzai - f/fp
               fow=f
               nr=nr+1
!$$$$$$$$$$$$
!              write(*,*) ' fow=',fow
!$$$$$$$$$$$$
              if(abs(fow) .lt. eps .or. nr .gt. 15) goto 100
       enddo
  100  continue
       if(nr .gt. 15) then
           icon=1
       else
           icon=0
       endif

Here is the call graph for this function:

Here is the caller graph for this function:

cnbdc4()

subroutine cnbdc4	(	integer	n,
		type(ptcl), dimension(n)	p,
		real*8, dimension(inm, n)	mu,
		integer	inm,
		real*8	gzai
	)

Definition at line 321 of file cnbdcy.f.

Referenced by c1pion(), and cnbdcy().

!             tranform to massive case
!      *********************************************
       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n, inm
       type(ptcl):: p(n)
       real*8 mu(inm, n), gzai

       real*8 mux
       integer i
       do   i=1,n
             p(i)%fm%p(1) = gzai*p(i)%fm%p(1)
             p(i)%fm%p(2) = gzai*p(i)%fm%p(2)
             p(i)%fm%p(3) = gzai*p(i)%fm%p(3)
!                next treatment is for safty
             if(inm .eq. 0) then
!                mux=mu(1,1)
                 mux=0.
             else
                 mux=mu(1,i)
             endif
             p(i)%fm%p(4) = sqrt(p(i)%mass**2 +
     *       gzai**2*( p(i)%fm%p(4)**2-mux**2 ) )
           enddo

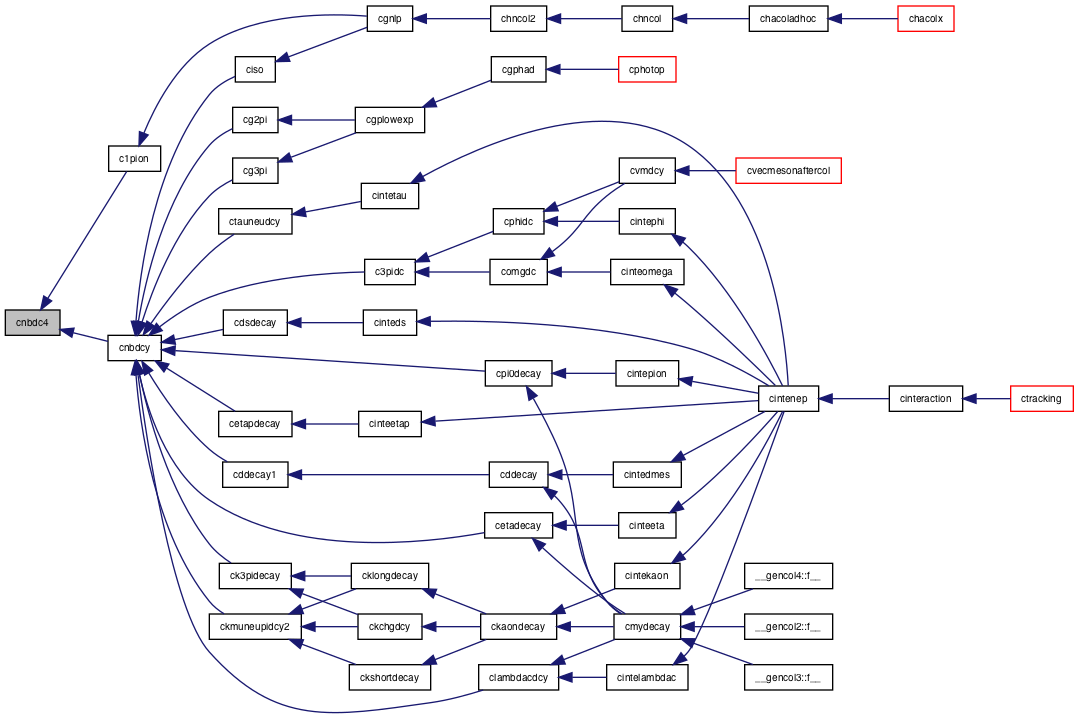

Here is the caller graph for this function:

cnbdc5()

subroutine cnbdc5	(	integer	n,
		real*8	ecm,
		type(ptcl), dimension(n)	p,
		real*8	wx
	)

Definition at line 348 of file cnbdcy.f.

References cpxyzp().

Referenced by cnbdcy().

!            compute weig.p(4) for massive case
       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n
       type(ptcl):: p(n)
       real*8 ecm, wx
!
       real*8 sum1, pro2, sum3, pab
       integer i
!
          sum1=0.
          pro2=1.
          sum3=0.
          do   i=1, n
             call cpxyzp(p(i)%fm,  pab)
             sum1=sum1+pab
             pro2=pro2* pab/p(i)%fm%p(4)
             sum3=sum3+pab**2/p(i)%fm%p(4)
          enddo
          wx=(sum1/ecm)**(2*n-3)*pro2 /sum3

Here is the call graph for this function:

Here is the caller graph for this function:

cnbdc6()

subroutine cnbdc6	(	integer	n,
		real*8	ecm,
		real*8	w0
	)

Definition at line 371 of file cnbdcy.f.

References d0, and parameter().

Referenced by cnbdcy().

!             compute weig.p(4) for massless case
       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n
       real*8 ecm, w0
!
       real*8 pi, hpi, gn1
       integer i
       parameter(pi=3.14159265d0, hpi=pi/2)
!
          gn1=1.
          do   i=1, n-2
             gn1=gn1*i
          enddo
          w0=  hpi**(n-1) * ecm**(2*n-4)/(n-1)/gn1/gn1

Here is the call graph for this function:

Here is the caller graph for this function:

cnbdc7()

subroutine cnbdc7	(	integer	n,
		real*8	ecm,
		type(ptcl), dimension(n)	p,
		real*8	wmax
	)

Definition at line 389 of file cnbdcy.f.

References d, and d0.

Referenced by cnbdcy().

!                compute max possible weig.p(4)
       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n
       type(ptcl):: p(n)
       real*8 ecm, wmax

       integer idx(2), nm, i
       real*8 summ, en, beta
!          count massive ptcls
         nm=0
         do   i=1,n
            if(p(i)%mass .gt. 0.d0) then
               nm=nm+1
               if(nm .le. 2) then
                  idx(nm)=i
               endif
            endif
         enddo
         if(nm .eq. 1) then
             wmax=(1. - p(idx(1))%mass/ecm)**(2*n-3)
         elseif(nm .eq. 2)  then
             wmax=
     *        (1. + (p(idx(1))%mass/ecm)**2 -
     *        (p(idx(2))%mass/ecm)**2 )**2
     *       -4*(p(idx(1))%mass/ecm)**2
             if(wmax .le. 0.d0)then
                wmax=1.d-30
             else
                wmax= wmax**(n-1.5d0)
             endif
         else
             summ=0.d0
             do   i=1, n
                 if(p(i)%mass .gt. 0.d0) then
                    en=p(i)%mass/ecm
                    summ=summ+en
                 endif
             enddo
             beta=1. - summ**2
             if(beta .le. 0.d0) then
                wmax=1.d-30
             else
                wmax=sqrt(beta)**(2*n+nm-5)
             endif
         endif

Here is the caller graph for this function:

cnbdcf()

subroutine cnbdcf	(	integer	n,
		real*8	ecm,
		type(ptcl), dimension(n)	p
	)

Definition at line 287 of file cnbdcy.f.

References d0.

Referenced by cnbdc3().

     *            mu, inm, gzai, f, fp)
!      *********************************************
       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n, inm
       type(ptcl):: p(n)
       real*8 gzai, f, fp, mu(inm, n)
!
       real*8 mux, fx, tmp, ecm
       integer i
!
       fx=0.d0
       fp=0.d0
       do   i=1, n
!                  if compiler is good, we can use mu(1,i)
!                  even for inm=0; next is for safty.
              if(inm .eq. 0) then
!                 mux=mu(1,1)
                  mux=0.d0
              else
                  mux=mu(1,i)
              endif

              tmp=  sqrt(p(i)%mass**2+
     *        gzai**2 *( p(i)%fm%p(4)**2 -mux**2 ) )
              fx=fx + tmp
              fp=fp + ( p(i)%fm%p(4)**2- mux**2)/ tmp
           enddo
          f=log(fx/ecm)
          fp=fp*gzai/fx

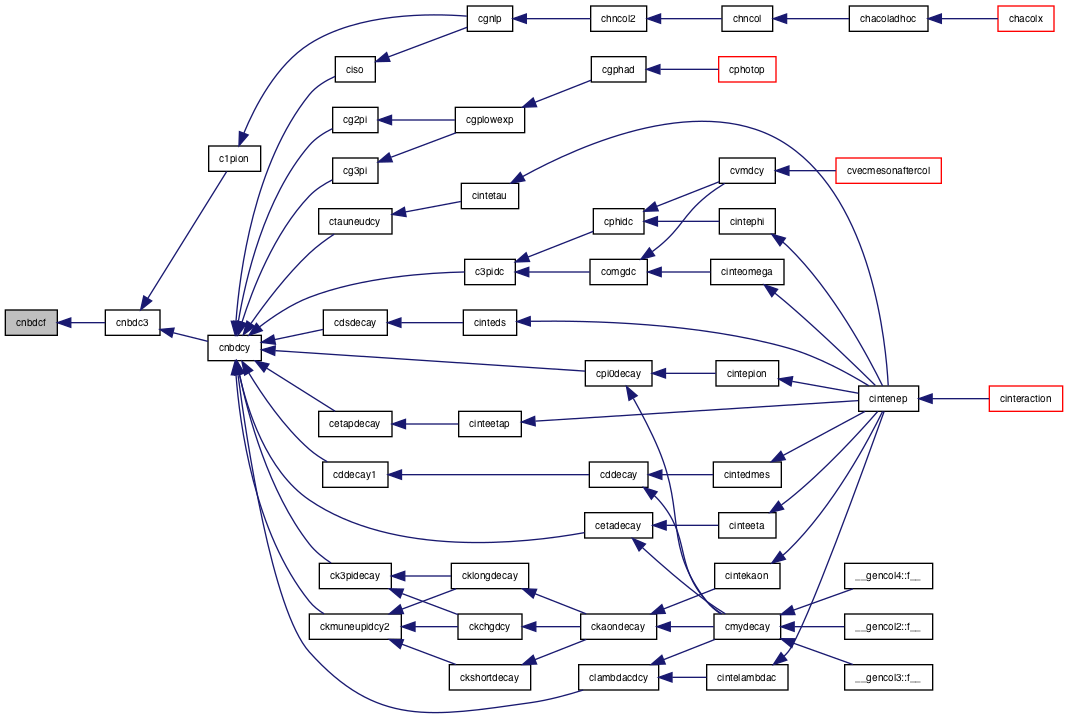

Here is the caller graph for this function:

cnbdct()

subroutine cnbdct	(	integer	n,
		type(ptcl), dimension(n)	p
	)

Definition at line 155 of file cnbdcy.f.

References d0.

       implicit none
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n
       type(ptcl):: p(n)
!
       real*8 sumx, sumy, sumz, sume
       integer i
!
           sumx=0.d0
           sumy=0.d0
           sumz=0.d0
           sume=0.d0
           do   i=1, n
              sumx=sumx+p(i)%fm%p(1)
              sumy=sumy+p(i)%fm%p(2)
              sumz=sumz+p(i)%fm%p(3)
              sume=sume+p(i)%fm%p(4)
           enddo
           write(*,*) ' sumx,y,z=',sumx, sumy, sumz, ' sume=',sume

cnbdcy()

subroutine cnbdcy	(	integer	n,
		real*8	ecm,
		type(ptcl), dimension(n)	p,
		integer	jw,
		real*8	w,
		integer	icon
	)

Definition at line 48 of file cnbdcy.f.

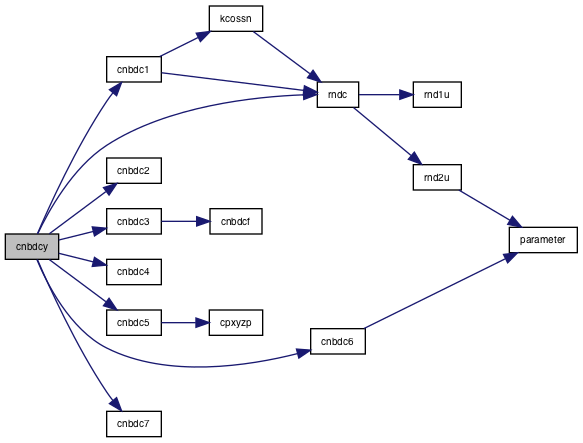

References cnbdc1(), cnbdc2(), cnbdc3(), cnbdc4(), cnbdc5(), cnbdc6(), cnbdc7(), rndc(), and true.

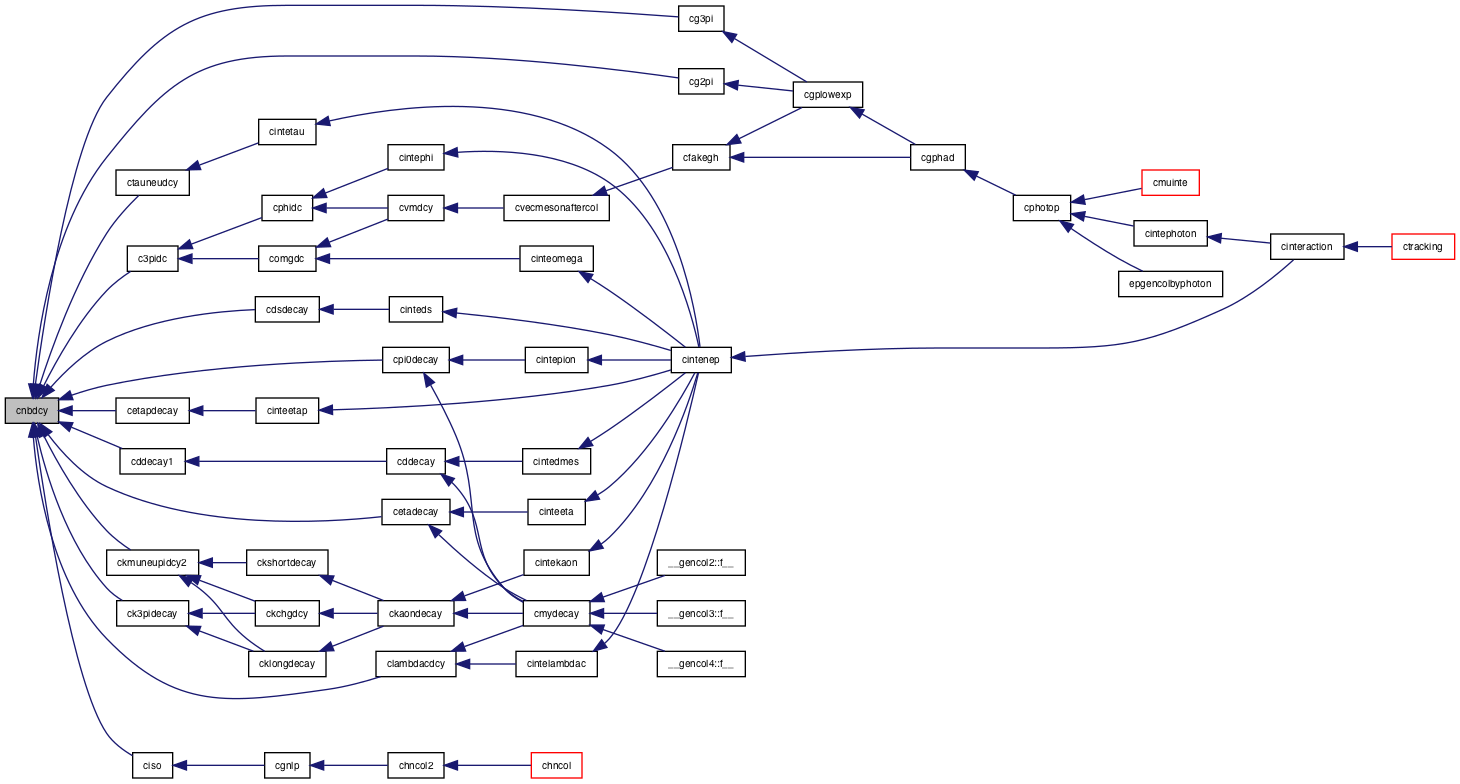

Referenced by c3pidc(), cddecay1(), cdsdecay(), cetadecay(), cetapdecay(), cg2pi(), cg3pi(), ciso(), ck3pidecay(), ckmuneupidcy2(), clambdacdcy(), cpi0decay(), and ctauneudcy().

       implicit none
!      ***********************************************************
!
!        ref:  CPC.  40(1986)p359.  Kleiss, Stirling and Ellis
!
!       n: input.  number of ptcls >=2 (see however, for n=2,
!                  c2bdcy and for n=3, c3bdcy)
!     ecm: input.  cms energy.
!       p: input.  /ptcl/ p(i).mass gives the mass of the i-th ptcl
!                  in the same unit of ecm.
!         output.  /ptcl/ p(i).fm.p(1)
!                                 py
!                                 pz
!                                 e   of the i-th ptcl
!      jw: input.  0--->unweighted event (w=1) obtained. the event
!                  generated need not be discarded.
!                  1--> weighted event( w changes event to event )
!                  the event must be discarded according to the
!                  acceptance probability of w=weight/wax weight).
!      w: output.  see jw
!   icon: output.  0-->event generated successfully
!                  1-->ecm < sum of mass
!                  2-->could not generate (weight problem)
!        With n=10  ( 6 pions, 3 kaons, 1 omega ) Ecm=5 GeV,
!        to get icon=0 for unweighted events,
!        average number of trials is 7;  the distribution is
!        very well approximated  by exp(-ntry/7)dntry
!        With Ecm=10 GeV, <ntry> becomes 2.1
!             Ecm=4 GeV, <ntry> = 13
!      ==============
!        With n=4, (2 pions, 1 kaon, 1 omega) Ecm=4 GeV,
!         <ntry> is almost 1
!----       include '../Zptcl.h'
#include  "Zptcl.h"
       integer n, jw, icon
       type(ptcl):: p(n)
       real*8 ecm, w
!      ------------------
       real*8 mu(1, 1)/0.d0/, wx, w0, wmax, gzai, u
!
       logical ok
       integer nc
!
    nc = 0    ! counter to break inf. loop
!       *** until loop***
       do while (.true.)
!            generate massless ptcls isotropically without conservation
           call cnbdc1(n, p)
!             conformal transformation to conserve 4-momentum
           call cnbdc2(n, ecm, p)
!$$$$$$$$$$$
!          call cnbdct(n, p)
!$$$$$$$$$$
!             get gzai to transform massive case
           call cnbdc3(n, ecm, p, mu, 0,  gzai, icon)
!     **********************
           if(icon /= 0 ) then  !!!!!!!
              write(0,*) ' icon =',icon, ' from cnbdc3'
           endif             !!!!!!!!
           if(icon .ne. 0) return
!          **********************
!             tranform to massive case
           call cnbdc4(n, p,  mu, 0, gzai)
!$$$$$$$$$$$
!          call cnbdct(n, p)
!$$$$$$$$$$
!             compute weight for massive  case
           call cnbdc5(n, ecm,p, wx)
!             compute weight for massless case
           call cnbdc6(n, ecm, w0)
!$$$$$$$$$$$$$$
!          write(*,*) ' wx=',wx,' w0=',w0
!$$$$$$$$$$$
           w=wx*w0
!                compute max possible weight
           call cnbdc7(n, ecm, p,  wmax)
           wmax=wmax*w0
           if(jw .eq. 0) then
!$$$$$$$$$$$$$$
!          write(*,*) ' wmax=',wmax
!$$$$$$$$$$$
!                judge if the event is to be accepted
              call rndc(u)
              if(wmax .eq. 0.d0) then
                 ok=.true.
              else
                 ok = u .lt. w/wmax
              endif
              w=1.
           else
              if(wmax .eq. 0.d0) then
                 w=1.d0
              else
                 w=w/wmax
              endif
              ok=.true.
           endif
           if(ok) goto 100
       nc = nc +1
       if(nc .gt. 100) then
          icon = 2
          goto 100
           endif
       enddo
  100  continue

Here is the call graph for this function:

Here is the caller graph for this function:
