COSMOS v7.655  COSMOSv7655
(AirShowerMC)
Modules | Functions/Subroutines | Variables
ctotx.f File Reference

Go to the source code of this file.

Modules

module  modcosxsec


Functions/Subroutines

subroutine ctotx (pjin, Ain, xs)

subroutine ctotx0 (pj, A, Z, xs)

real(8) function ca2z (A)


Variables

logical, save nisdiff =.false.


Function/Subroutine Documentation

◆ ca2z()

real(8) function ca2z ( real(8), intent(in)  A)

Definition at line 231 of file ctotx.f.

231  implicit none
232 ! very rough charge assignment for mass # A nucleus
233  real(8),intent(in):: a ! mass #
234
235  real(8)::z
236  z = int( a/2.15 + 0.7 )
z
nodes z
Definition: cstdatmos0.fNew2.h:93
nrl_atmos::a
real(4), save a
Definition: cNRLAtmos.f:20

◆ ctotx()

subroutine ctotx ( type(ptcl)  pjin,
real(8), intent(in)  Ain,
real(8), intent(out)  xs
)

Definition at line 7 of file ctotx.f.

References cmkptc(), ctotx0(), d0, false, kgnuc, knuc, and masp.

Referenced by cxsdpmjet3(), and cxsjam().

7  implicit none
8 #include "Zptcl.h"
9 #include "Zcode.h"
10 #include "Zmass.h"
11 #include "Zevhnp.h"
12  type(ptcl)::pjin !input projectile particle
13  real(8),intent(in):: ain ! input. effective target mass number
14  real(8),intent(out):: xs ! output. in mb. total xsection.
15 ! ctotx0 gives small Xs so we renormalize by
16 ! using cPDGsigmaTotpA(A) at @200 GeV
17  real(8),intent(in):: zin
18  real(8):: cpdgsigmatotpa
19
20  type(ptcl):: pj
21  type(ptcl):: proton
22  save proton
23  real(8),save:: xst
24  logical,save::first=.true.
25  real(8),save::asave=-1.
26  real(8),save::ratio
27  real(8):: z, a
28  real(8),external:: ca2z
29
30  z = ca2z(ain)
31  goto 20
32
33
34  entry ctotx2(pjin, ain, zin, xs)
35
36
37  z = zin
38  20 continue
39  pj = pjin
40  a = ain
41  if( pjin%code == kgnuc .and. ain == 1.0) then
42  call cmkptc(knuc, -1, int(z), pj)
43  pj%fm%p(4) = pjin%fm%p(4)/pjin%subcode
44  a = pjin%subcode
45  z = pjin%charge
46  endif
47
48
49  call ctotx0(pj, a, z, xs)
50  if( a /= 1.0d0 ) then
51  if(first) then
52  call cmkptc(knuc, -1, 1, proton)
53  proton%fm%p(4) = 200. + masp
54  first = .false.
55  endif
56  if( a /= asave ) then
57  call ctotx0(proton, a, z, xst)
58  ratio = cpdgsigmatotpa(a)/xst
59  asave = a
60  endif
61  xs = xs *ratio
62  endif
z
nodes z
Definition: cstdatmos0.fNew2.h:93
nrl_atmos::first
logical, save first
Definition: cNRLAtmos.f:8
kgnuc
max ptcl codes in the kgnuc
Definition: Zcode.h:2
true
block data cblkElemag data *AnihiE ! Eposi< 1 TeV, anihilation considered *X0/365.667/, ! radiation length of air in kg/m2 *Ecrit/81.e-3/, ! critical energy of air in GeV *MaxComptonE/1./, ! compton is considered below 1 GeV *MaxPhotoE/1.e-3/, ! above this, PhotoElectric effect neg. *MinPhotoProdE/153.e-3/, ! below 153 MeV, no gp --> hadrons ! scattering const not MeV *Knockon true
Definition: cblkElemag.h:7
xs
! constants thru Cosmos real ! if multiplied to deg radian Torad ! light velocity m sec ! infinty ! kg m2 *Togpcm2 g cm2 ! g cm2 *Tokgpm2 kg m2 ! cm *Tom m ! m *Tocm cm ! g cm3 *Tokgpm3 kg m3 ! kg m3 *Togpcm3 g cm3 ! sec *Tonsec nsec ! Tesla m ! Avogadro *A2deninv ! mfp *n * xs
Definition: Zglobalc.h:18
d0
block data cblkEvhnp ! currently usable models data RegMdls ad *special data *Cekaon d0
Definition: cblkEvhnp.h:5
knuc
********************block data cblkHeavy ********************integer j data *HeavyG2symbol *data *HeavyG2code knuc
Definition: cblkHeavy.h:7
ca2z
real(8) function ca2z(A)
Definition: ctotx.f:231
nrl_atmos::a
real(4), save a
Definition: cNRLAtmos.f:20
false
block data cblkElemag data *AnihiE ! Eposi< 1 TeV, anihilation considered *X0/365.667/, ! radiation length of air in kg/m2 *Ecrit/81.e-3/, ! critical energy of air in GeV *MaxComptonE/1./, ! compton is considered below 1 GeV *MaxPhotoE/1.e-3/, ! above this, PhotoElectric effect neg. *MinPhotoProdE/153.e-3/, ! below 153 MeV, no gp --> hadrons ! scattering const not MeV *Knockon ! knockon is considered Obsolete *PhotoProd false
Definition: cblkElemag.h:7
cmkptc
subroutine cmkptc(code, subcode, charge, p)
Definition: cmkptc.f:15
masp
masp
Definition: Zmass.h:5
ptcl
Definition: Zptcl.h:75
ctotx0
subroutine ctotx0(pj, A, Z, xs)
Definition: ctotx.f:66

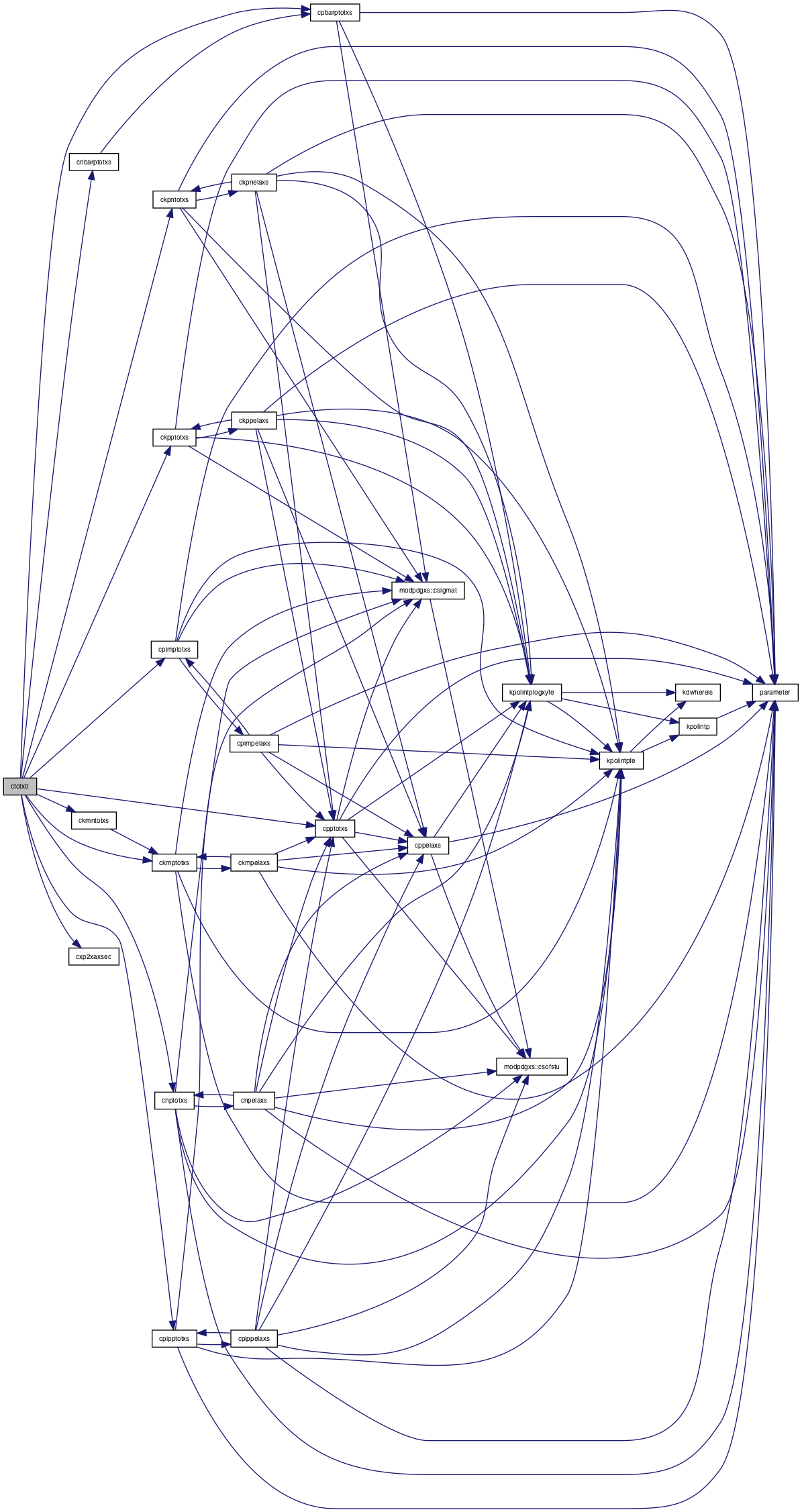

Here is the call graph for this function:
Here is the caller graph for this function:

◆ ctotx0()

subroutine ctotx0 ( type(ptcl)  pj,
real(8), intent(in)  A,
real(8), intent(in)  Z,
real(8), intent(out)  xs
)

Definition at line 66 of file ctotx.f.

References antip, ckmntotxs(), ckmptotxs(), ckpntotxs(), ckpptotxs(), cnbarptotxs(), cnptotxs(), cpbarptotxs(), cpimptotxs(), cpipptotxs(), cpptotxs(), cxp2xaxsec(), kbomega, kelec, kgnuc, kgzai, kkaon, klambda, klambdac, knuc, kpion, ksigma, and modcosxsec::nisdiff.

Referenced by ctotx().

66  use modcosxsec
67  implicit none
68 #include "Zptcl.h"
69 #include "Zcode.h"
70 #include "Zevhnp.h"
71  type(ptcl)::pj !input projectile particle
72  real(8),intent(in):: a ! effective target mass number
73  real(8),intent(in):: z ! effective target charge
74  real(8),intent(out)::xs ! in mb. total xsection.
75
76  real*8 p
77
78  real(8)::shp, shn
79  if( pj%fm%p(4) .le. pj%mass) then
80  if(pj%code .eq. knuc .and. pj%subcode .eq. antip) then
81  xs = largexs
82  elseif(pj%code .eq. kelec .and. pj%charge .eq. 1) then
83  xs = largexs
84  else
85  xs = smallxs
86  endif
87  else
88  p = sqrt(pj%fm%p(4)**2 - pj%mass**2)
89 ! p = max(p, 0.1d0)
90 ! if( p .ge. 20.) then
91 ! call cerrorMsg('Momentum is >20 GeV/c for ctotx',0)
92 ! endif
93
94  if(pj%code .eq. knuc) then
95  if(pj%charge .eq. 1) then
96 ! proton
97 ! shp = ctotpp1(p)
98  if( a == 1.0 ) then
99  if( z == 1.0) then ! pp
100  call cpptotxs(p, xs)
101  elseif( z== 0.0 ) then ! pn
102  call cnptotxs(p, xs)
103  else
104  write(0,*) 'pj=proton target A,Z=',a,z
105  write(0,*) ' stragne for ctotx/ctotx2'
106  stop
107  endif
108  elseif(a > 1.) then
109  call cpptotxs(p, shp)
110  if( nisdiff ) then
111  call cnptotxs(p, shn)
112 ! use average of pp,pn
113  shp = (shp + shn)/2.0
114  endif
115  call cxp2xaxsec(a, shp, xs)
116  else
117  write(0,*) 'pj: p, target A,Z=',a,z
118  write(0,*) 'strange for ctotx/ctotx2'
119  stop
120  endif
121  elseif(pj%charge .eq. -1) then
122 ! pbar no n target
123  call cpbarptotxs(p, shp)
124  if( a .gt. 1.) then
125  call cxp2xaxsec(a, shp, xs)
126  else
127  xs = shp
128  endif
129  elseif(pj%subcode .eq. antip) then
130 ! anti-neutron; assume the same one as pbar
131 ! shp = ctotpbarp1(p)
132  call cnbarptotxs(p, shp)
133  if( a .gt. 1.) then
134  call cxp2xaxsec(a, shp, xs)
135  else
136  xs = shp
137  endif
138  else
139 ! neutron
140 ! shp = ctotnp1(p)
141  call cnptotxs(p, shp)
142  if(a .gt. 1.) then
143  call cxp2xaxsec(a, shp, xs)
144  else
145  xs = shp
146  endif
147  endif
148  elseif(pj%code .eq. kpion) then
149  if(pj%charge .eq. 1) then
150  call cpipptotxs(p, shp)
151  elseif(pj%charge .eq. -1) then
152  call cpimptotxs(p, shp)
153  else
154 ! at low energy, pi0 would not interact. any would be o.k
155 ! shp = ctotpiMp1(p)
156  call cpimptotxs(p, shp)
157  endif
158  if(a .ne. 1.0) then
159  call cxp2xaxsec(a, shp, xs)
160  else
161  xs = shp
162  endif
163  elseif(pj%code .eq. kkaon) then
164  if(pj%charge .eq. 1) then
165  if( a == 1.0 ) then
166  if( z == 1.0 ) then
167  call ckpptotxs(p, xs)
168  elseif( z == 0. ) then
169  call ckpntotxs(p, xs)
170  else
171  write(0,*) ' A,Z=',a,z, 'for K+ pj'
172  write(0,*) ' strange to ctotx/ctotx2 '
173  stop
174  endif
175  elseif(a > 1.) then
176  call ckpptotxs(p, shp)
177  if( nisdiff ) then
178  call ckpntotxs(p, shn)
179  shp = (shp + shn)/2.0
180  endif
181  call cxp2xaxsec(a, shp, xs)
182  else
183  write(0,*) ' A,Z=',a,z, 'for K+ p'
184  write(0,*) ' strange to ctotx/ctotx2 '
185  stop
186  endif
187  elseif(pj%charge .eq. -1) then ! K-
188  call ckmptotxs(p, shp) ! kmp = kmn at present
189  if(a .gt. 1.) then
190  if( nisdiff ) then
191  call ckmntotxs(p, shn)
192  shp = (shp + shn)/2.
193  endif
194  call cxp2xaxsec(a, shp, xs)
195  else
196  xs = shp
197  endif
198  else
199 ! k0; don't worry so much
200  call ckmptotxs(p, shp)
201  call ckmntotxs(p, shn)
202  shp = (shp+ shn)/2.
203  if(a .gt. 1.) then
204  call cxp2xaxsec(a, shp, xs)
205  else
206  xs = shp
207  endif
208  endif
209  elseif(pj%code .eq. kgzai .or. pj%code .eq. ksigma .or.
210  * pj%code .eq. kbomega .or. pj%code .eq. klambda .or.
211  * pj%code .eq. klambdac) then
212 ! don't worry, not used almost at all; use proton
213 ! shp = ctotpp1(p)
214  call cpptotxs(p, shp)
215  call cxp2xaxsec(a, shp, xs)
216  elseif( pj%code == kgnuc ) then
217  write(0,*) 'Sorry: ctotx is not usable for heavy ions'
218  write(0,*) ' only inelastic xs is used for heavy ions'
219  write(0,*) ' so that you may use cinela or cAAXsec2'
220  stop
221  else
222 ! use pion
223 ! shp =ctotpiPp1(p)
224  call cpipptotxs(p, shp)
225  call cxp2xaxsec(a, shp, xs)
226  endif
227  endif
z
nodes z
Definition: cstdatmos0.fNew2.h:93
kgzai
max ptcl codes in the kgzai
Definition: Zcode.h:2
cpbarptotxs
subroutine cpbarptotxs(p, xs)
Definition: cpbarpTotXs.f:9
cpptotxs
subroutine cpptotxs(p, xs)
Definition: cppTotXs.f:3
kgnuc
max ptcl codes in the kgnuc
Definition: Zcode.h:2
cnptotxs
subroutine cnptotxs(p, xs)
Definition: cnpTotXs.f:3
klambdac
max ptcl codes in the klambdac
Definition: Zcode.h:2
ckpptotxs
subroutine ckpptotxs(p, xs)
Definition: ckppTotXs.f:3
kkaon
max ptcl codes in the kkaon
Definition: Zcode.h:2
kelec
max ptcl codes in the kelec
Definition: Zcode.h:2
cxp2xaxsec
subroutine cxp2xaxsec(a, xsxp, xsxa)
Definition: cxp2xAXsec.f:30
ckpntotxs
subroutine ckpntotxs(p, xs)
Definition: ckpnTotXs.f:3
xs
! constants thru Cosmos real ! if multiplied to deg radian Torad ! light velocity m sec ! infinty ! kg m2 *Togpcm2 g cm2 ! g cm2 *Tokgpm2 kg m2 ! cm *Tom m ! m *Tocm cm ! g cm3 *Tokgpm3 kg m3 ! kg m3 *Togpcm3 g cm3 ! sec *Tonsec nsec ! Tesla m ! Avogadro *A2deninv ! mfp *n * xs
Definition: Zglobalc.h:18
p
********************block data cblkHeavy ********************integer j data *HeavyG2symbol p
Definition: cblkHeavy.h:7
modcosxsec::nisdiff
logical, save nisdiff
Definition: ctotx.f:4
ckmptotxs
subroutine ckmptotxs(p, xs)
Definition: ckmpTotXs.f:3
klambda
max ptcl codes in the klambda
Definition: Zcode.h:2
knuc
********************block data cblkHeavy ********************integer j data *HeavyG2symbol *data *HeavyG2code knuc
Definition: cblkHeavy.h:7
ckmntotxs
subroutine ckmntotxs(p, xs)
Definition: ckmnTotXs.f:2
cpipptotxs
subroutine cpipptotxs(p, xs)
Definition: cpippTotXs.f:3
nrl_atmos::a
real(4), save a
Definition: cNRLAtmos.f:20
ptcl
Definition: Zptcl.h:75
antip
max ptcl codes in the kseethru ! subcode integer antip
Definition: Zcode.h:2
kpion
max ptcl codes in the kpion
Definition: Zcode.h:2
ksigma
max ptcl codes in the ksigma
Definition: Zcode.h:2
kbomega
max ptcl codes in the kbomega
Definition: Zcode.h:2
cpimptotxs
subroutine cpimptotxs(p, xs)
Definition: cpimpTotXs.f:3
cnbarptotxs
subroutine cnbarptotxs(p, xs)
Definition: cnbarpTotXs.f:3

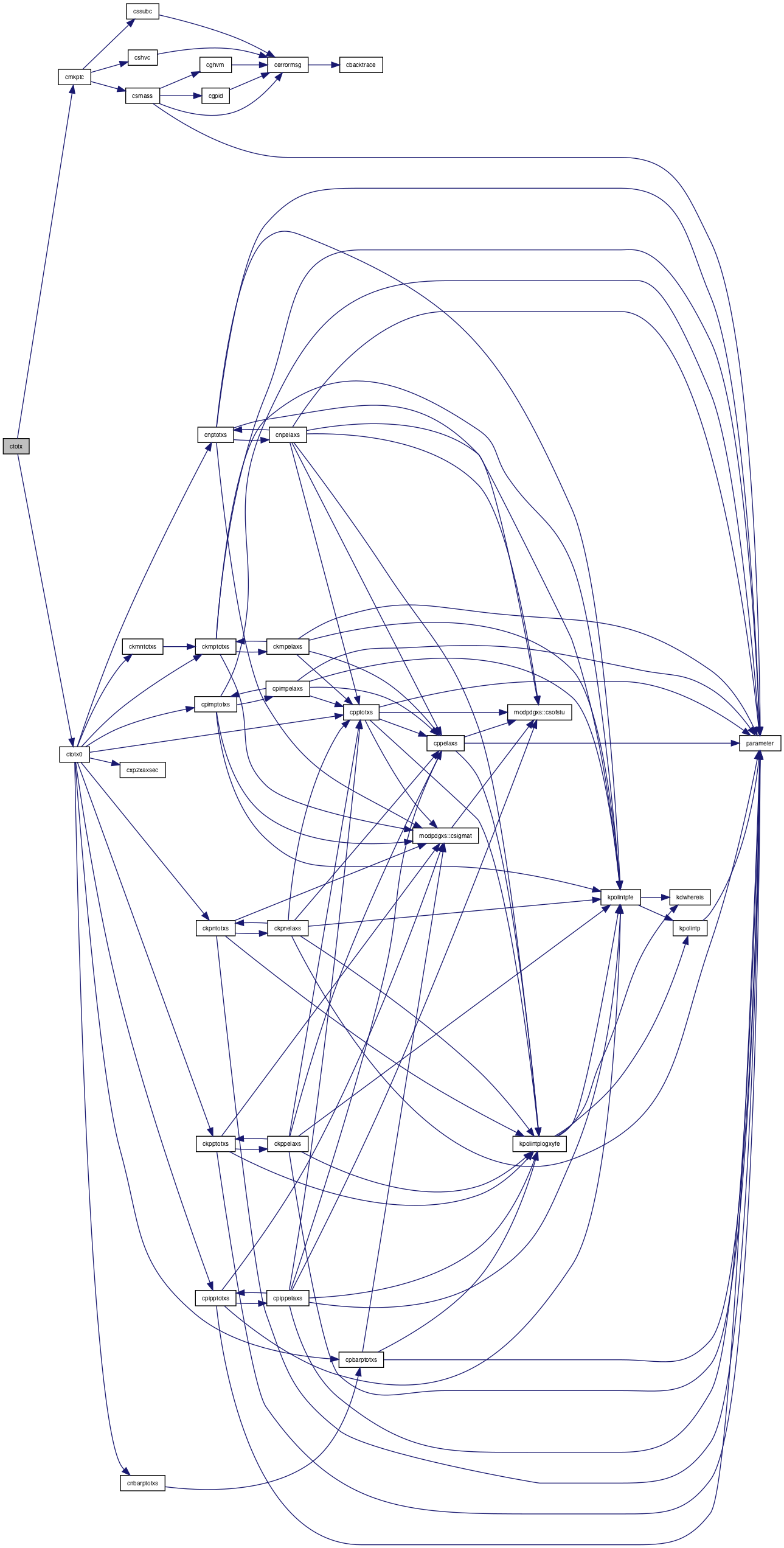

Here is the call graph for this function:
Here is the caller graph for this function:
