COSMOS v7.655  COSMOSv7655
(AirShowerMC)
Functions/Subroutines
mnemat.f File Reference

Go to the source code of this file.

Functions/Subroutines

subroutine mnemat (EMAT, NDIM)


Function/Subroutine Documentation

◆ mnemat()

subroutine mnemat ( dimension(ndim,ndim)  EMAT,
  NDIM
)

Definition at line 10 of file mnemat.f.

References a, b, c, d, e, f, g, h, softenpik::half, i, j, m, maxp, mndxdi(), n, o, p, parameter(), up(), x, xs, and z.

Referenced by mnmatu().

10 *
11 * $Id: d506dp.inc,v 1.1.1.1 1996/03/07 14:31:32 mclareni Exp $
12 *
13 * $Log: d506dp.inc,v $
14 * Revision 1.1.1.1 1996/03/07 14:31:32 mclareni
15 * Minuit
16 *
17 *
18 *
19 *
20 * d506dp.inc
21 *
22 C ************ DOUBLE PRECISION VERSION *************
23  IMPLICIT DOUBLE PRECISION (a-h,o-z)
24  dimension emat(ndim,ndim)
25 CC Calculates the external error matrix from the internal
26 CC to be called by user, who must dimension EMAT at (NDIM,NDIM)
27 *
28 * $Id: d506cm.inc,v 1.1.1.1 1996/03/07 14:31:32 mclareni Exp $
29 *
30 * $Log: d506cm.inc,v $
31 * Revision 1.1.1.1 1996/03/07 14:31:32 mclareni
32 * Minuit
33 *
34 *
35 *
36 *
37 * d506cm.inc
38 *
39  parameter(mne=100 , mni=50)
40  parameter(mnihl=mni*(mni+1)/2)
41  CHARACTER*10 cpnam
42  COMMON
43  1/mn7nam/ cpnam(mne)
44  2/mn7ext/ u(mne) ,alim(mne) ,blim(mne)
45  3/mn7err/ erp(mni) ,ern(mni) ,werr(mni) ,globcc(mni)
46  4/mn7inx/ nvarl(mne) ,niofex(mne),nexofi(mni)
47  5/mn7int/ x(mni) ,xt(mni) ,dirin(mni)
48  6/mn7fx2/ xs(mni) ,xts(mni) ,dirins(mni)
49  7/mn7der/ grd(mni) ,g2(mni) ,gstep(mni) ,gin(mne) ,dgrd(mni)
50  8/mn7fx3/ grds(mni) ,g2s(mni) ,gsteps(mni)
51  9/mn7fx1/ ipfix(mni) ,npfix
52  a/mn7var/ vhmat(mnihl)
53  b/mn7vat/ vthmat(mnihl)
54  c/mn7sim/ p(mni,mni+1),pstar(mni),pstst(mni) ,pbar(mni),prho(mni)
55 C
56  parameter(maxdbg=10, maxstk=10, maxcwd=20, maxp=30, maxcpt=101)
57  parameter(zero=0.0, one=1.0, half=0.5)
58  COMMON
59  d/mn7npr/ maxint ,npar ,maxext ,nu
60  e/mn7iou/ isysrd ,isyswr ,isyssa ,npagwd ,npagln ,newpag
61  e/mn7io2/ istkrd(maxstk) ,nstkrd ,istkwr(maxstk) ,nstkwr
62  f/mn7tit/ cfrom ,cstatu ,ctitl ,cword ,cundef ,cvrsn ,covmes
63  g/mn7flg/ isw(7) ,idbg(0:maxdbg) ,nblock ,icomnd
64  h/mn7min/ amin ,up ,edm ,fval3 ,epsi ,apsi ,dcovar
65  i/mn7cnv/ nfcn ,nfcnmx ,nfcnlc ,nfcnfr ,itaur,istrat,nwrmes(2)
66  j/mn7arg/ word7(maxp)
67  k/mn7log/ lwarn ,lrepor ,limset ,lnolim ,lnewmn ,lphead
68  l/mn7cns/ epsmac ,epsma2 ,vlimlo ,vlimhi ,undefi ,bigedm,updflt
69  m/mn7rpt/ xpt(maxcpt) ,ypt(maxcpt)
70  n/mn7cpt/ chpt(maxcpt)
71  o/mn7xcr/ xmidcr ,ymidcr ,xdircr ,ydircr ,ke1cr ,ke2cr
72  CHARACTER ctitl*50, cword*(maxcwd), cundef*10, cfrom*8,
73  + cvrsn*6, covmes(0:3)*22, cstatu*10, chpt*1
74  LOGICAL lwarn, lrepor, limset, lnolim, lnewmn, lphead
75  IF (isw(2) .LT. 1) RETURN
76  IF (isw(5) .GE. 2) WRITE (isyswr,'(/A,I4,A,I3,A,G10.3)')
77  + ' EXTERNAL ERROR MATRIX. NDIM=',ndim,' NPAR=',npar,
78  + ' ERR DEF=',up
79 C size of matrix to be printed
80  npard = npar
81  IF (ndim .LT. npar) THEN
82  npard = ndim
83  IF (isw(5) .GE. 0) WRITE (isyswr,'(A,A)') ' USER-DIMENSIONED ',
84  + ' ARRAY EMAT NOT BIG ENOUGH. REDUCED MATRIX CALCULATED.'
85  ENDIF
86 C NPERLN is the number of elements that fit on one line
87  nperln = (npagwd-5)/10
88  nperln = min(nperln,13)
89  IF (isw(5).GE. 1 .AND. npard.GT.nperln) WRITE (isyswr,'(A)')
90  + ' ELEMENTS ABOVE DIAGONAL ARE NOT PRINTED.'
91 C I counts the rows of the matrix
92  DO 110 i= 1, npard
93  CALL mndxdi(x(i),i,dxdi)
94  kga = i*(i-1)/2
95  DO 100 j= 1, i
96  CALL mndxdi(x(j),j,dxdj)
97  kgb = kga + j
98  emat(i,j) = dxdi * vhmat(kgb) * dxdj * up
99  emat(j,i) = emat(i,j)
100  100 CONTINUE
101  110 CONTINUE
102 C IZ is number of columns to be printed in row I
103  IF (isw(5) .GE. 2) THEN
104  DO 160 i= 1, npard
105  iz = npard
106  IF (npard .GE. nperln) iz = i
107  DO 150 k= 1, iz, nperln
108  k2 = k + nperln - 1
109  IF (k2 .GT. iz) k2=iz
110  WRITE (isyswr,'(1X,13E10.3)') (emat(i,kk),kk=k,k2)
111  150 CONTINUE
112  160 CONTINUE
113  ENDIF
114  RETURN
parameter
integer npitbl real *nx parameter(n=101, npitbl=46, nx=n-1) real *8 uconst
z
nodes z
Definition: cstdatmos0.fNew2.h:93
up
block data include Zlatfit h c fitting region data data data data data d0 data data d0 data data h g *is for param c g data up(2, 1)/7.0d0/
e
dE dx *! Nuc Int sampling table e
Definition: cblkMuInt.h:130
i
nodes i
Definition: cstdatmos0.fNew2.h:93
nrl_atmos::h
real(4), dimension(:), allocatable, save h
Definition: cNRLAtmos.f:28
xs
! constants thru Cosmos real ! if multiplied to deg radian Torad ! light velocity m sec ! infinty ! kg m2 *Togpcm2 g cm2 ! g cm2 *Tokgpm2 kg m2 ! cm *Tom m ! m *Tocm cm ! g cm3 *Tokgpm3 kg m3 ! kg m3 *Togpcm3 g cm3 ! sec *Tonsec nsec ! Tesla m ! Avogadro *A2deninv ! mfp *n * xs
Definition: Zglobalc.h:18
p
********************block data cblkHeavy ********************integer j data *HeavyG2symbol p
Definition: cblkHeavy.h:7
j
********************block data cblkHeavy ********************integer j data *HeavyG2symbol *data *HeavyG2code kiron data j
Definition: cblkHeavy.h:36
o
struct ob o[NpMax]
Definition: Zprivate.h:34
mndxdi
subroutine mndxdi(PINT, IPAR, DXDI)
Definition: mndxdi.f:10
d
dE dx *! Nuc Int sampling table d
Definition: cblkMuInt.h:130
m
block data include Zlatfit h c fitting region data data data data data d0 data data d0 data data m
Definition: ZlatfitBD.h:35
nrl_atmos::a
real(4), save a
Definition: cNRLAtmos.f:20
g
dE dx *! Nuc Int sampling table g
Definition: cblkMuInt.h:130
nrl_atmos::b
real(4), save b
Definition: cNRLAtmos.f:21
maxp
!onst int maxp
Definition: Zprivate.h:3
n
integer n
Definition: Zcinippxc.h:1
softenpik::half
integer, parameter half
Definition: csoftenPiK.f:108
x
! structure defining a particle at production ! Basic idea of what is to be contained in ! the particle structue is that dynamical ones should be included those derivable from the particle code ! is not included ******************************************************type fmom momentum sequence union map real e endmap map real * x
Definition: Zptcl.h:21
f
dE dx *! Nuc Int sampling table f
Definition: cblkMuInt.h:130
c
dE dx *! Nuc Int sampling table c
Definition: cblkMuInt.h:130
Here is the call graph for this function:

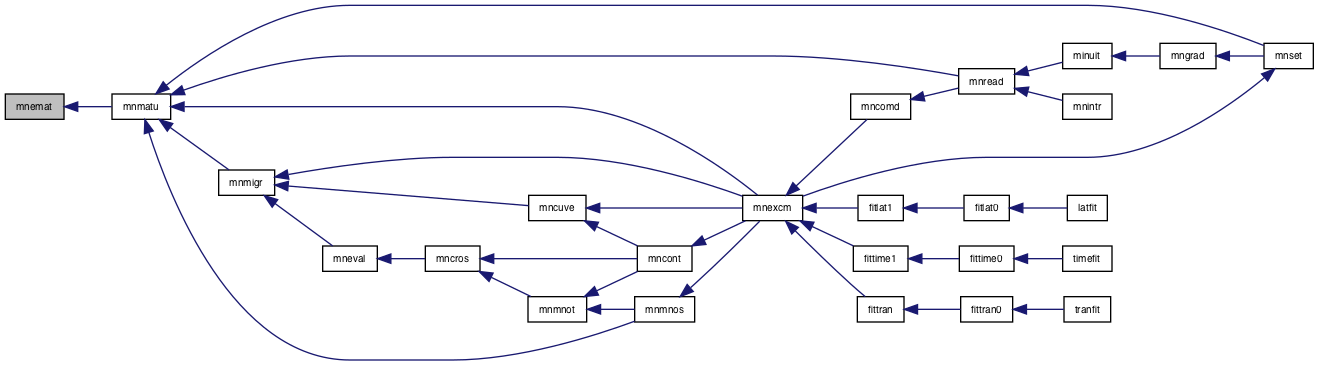

Here is the caller graph for this function:
