procTime.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	proctime (h, fnotf, nfraca, reduced, idxr, idxf, code, layer)
subroutine	proctimegettf (x, y, n, frac, tf, nfrac)

Function/Subroutine Documentation

proctime()

subroutine proctime	(	type(histogram1)	h,
		integer	fnotf,
		integer	nfraca,
		integer	reduced,
		integer	idxr,
		integer	idxf,
		integer	code,
		integer	layer
	)

Definition at line 44 of file procTime.f.

References ksmooth(), nrbin, parameter(), proctimegettf(), tf(), and tfary0().

!         This treats one 1-D histogram with web index (idxr, idxf)
!
      implicit none
#include "ZtimeAna.h"

#include "../../Hist/Z90histc.h"
#include "../../Hist/Z90histo.h"
#include "../../Hist/Z90hist1.h"

      type(histogram1):: h  ! input 1 D histogram
      integer fnotf  ! input file number for tf data
      integer nfraca ! input.
                    !  1 to 11;  upto what % data is obtained.
                    !  For final fitting, T10% is ok so use 2.
                    !  1->T%5 2->T10%  9->T80% 10->T90% 11->T95%
                  ! 2 vs 11: 2 is 15% faster than 11.
      integer reduced ! 0--> time is non-reduced time
                      ! 1--> reduced time
      integer idxr  ! web r bin index (1~nrbin=42)
      integer idxf  ! web fai bin index (1~nf)
      integer code  ! ptcl code
      integer layer ! at which layer
      integer kwhistixy
      integer maxsize  ! max histogram size
      integer n        ! actual histogram size

      integer i, j
      parameter(maxsize=3000)
      real*8 x(maxsize), y(maxsize)
      real*8 cgap
      integer icon
      integer idxr1, idxr2
      integer mode
      save
      mode=2  ! only this can be used

!       get (normalized) integral dist.
      n = kwhistixy(h, x, y, maxsize)
      if(n .gt. maxsize) then
         write(0, *) ' too large histogram size=',n
         stop 1111
      endif
      if( idxr .eq. 1 ) then
         idxr1 = 0
         idxr2 = 0
      endif
      if(reduced .eq. 1 .and. idxf .eq. 1) then
!           check time<0 for fai=0 deg.
         if(n .gt. 0) then
            if(x(1) .lt. 0. ) then
               write(0,*)
     *          'Although you gave reducedT="yes" in baseInfo'
               write(0,*)
     *           'I suspect that histgoram data has non reduced time'
               write(0,*) 'so I stop here'
               stop 999
            endif
         endif
      endif

      if(smooth .gt. 0) then
!        smoothin parameter
         cgap = 0.1/(idxr/30.)**4
!          smoothing.( at least one trial is done.)
!          at large distances (idxr>30,  10 or more
!          trials)

         call ksmooth(x, 1, y, 1,  n, 0, smooth, cgap, icon)
      else
         icon = 1
      endif

      if(icon .gt. 0 ) then
         if(idxr1 .eq. 0) idxr1=idxr
         idxr2=idxr
!            get 'tf' values corresponding to 'frac'
         call proctimegettf(x, y, n, frac, tf, nfraca)
         do i = 1, nfraca
            tfary0(idxr,  i) = tf(i)
         enddo
      endif
      if(idxr .eq. nrbin) then
!           all data at given fai has been obtained.
!           data is between idxr1 to idxr2 for r
!           do fitting        and save the result in tfary

         write(fnotf,'(3i4)')  idxf, code, layer
         if(mode .eq. 1) then
            do i = idxr1, idxr2
               write(fnotf,'(i3,1p11E11.3)')
     *         i, (tfary(i, j), j=1, nfraca)
            enddo
            write(fnotf,
     *       '("0 0 0 0 0 0 0 0 0 0 0 0 ")')
         elseif(mode .eq. 2) then
            do i = idxr1, idxr2
               write(fnotf,'(i3,  1p11E11.3)')
     *            i, (tfary0(i, j), j=1, nfraca)
            enddo
            write(fnotf,
     *       '("0 0 0 0 0 0 0 0 0 0 0 0 ")')
         elseif(mode .eq. 3) then
            do i = idxr1, idxr2
               write(fnotf,'(i3,1p22E11.3)')
     *          i, (tfary(i, j), j=1, nfraca),
     *           (tfary0(i,j), j=1, nfraca)
            enddo
            write(fnotf,
     *       '("0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0")')
         endif
      endif

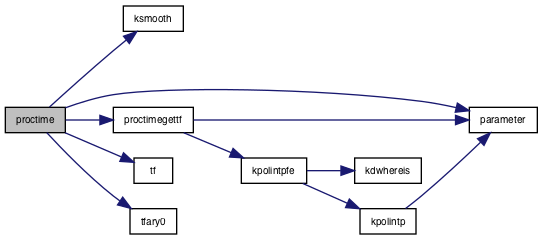

Here is the call graph for this function:

proctimegettf()

subroutine proctimegettf	(	real*8, dimension(n)	x,
		real*8, dimension(n)	y,
		integer	n,
		real*8, dimension(nfrac)	frac,
		real*8, dimension(nfrac)	tf,
		integer	nfrac
	)

Definition at line 158 of file procTime.f.

References kpolintpfe(), and parameter().

      implicit none
      integer n
      real*8 x(n)
      real*8 y(n)
      integer nfrac
      real*8 frac(nfrac)
      real*8 tf(nfrac)

      real*8 error
      integer i, j
      integer np
      parameter(np = 3)  ! use np points for interpolation

      do i = 1,  nfrac
         call kpolintpfe(y, 1, x, 1, n,  np,
     *      frac(i),  tf(i), error)
      enddo

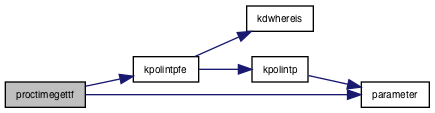

Here is the call graph for this function:
