tranFit.f File Reference

Go to the source code of this file.

Functions/Subroutines
program	tranfit
subroutine	fittran0 (xin, yin, nbin)
subroutine	fittran (xin, yin, n, prmin, prmout)

Function/Subroutine Documentation

fittran()

subroutine fittran	(	real*8, dimension(n)	xin,
		real*8, dimension(n)	yin,
		integer	n,
		real*8, dimension(nparam)	prmin,
		real*8, dimension(nparam)	prmout
	)

Definition at line 129 of file tranFit.f.

References mnexcm(), mninit(), mnparm(), mnseti(), npoint, oparam, tranfnc(), x, and y.

Referenced by fittran0().

      implicit none
      include "Zfit.h"
      real*8  prmin(nparam), prmout(nparam)
      integer  n
      real*8 xin(n), yin(n)

      integer nlabel(nparam)
      character*10  pname(nparam)
      real*8 initval(nparam)
      real*8 step(nparam)

      data nlabel/ 1,  2, 3/
      data pname/ 'a',  's', 'x0'/
      data step/  10.,  1.0, 1.0/
      real*8 zero, one, three, four, five
      data zero,one,three,four, five / 0., 1., 3.,4., 5. /
      real*8 low(nparam), high(nparam)
      real*8 fval, xx
      integer i, ierflg

      external tranfnc

!
!           in fortran mode, this must be called for a new fnc
!
      npoint = n
      do i = 1, npoint
         x(i) = xin(i)
         y(i) = yin(i)
      enddo

      do i = 1, nparam
         initval(i) = prmin(i)
      enddo
      low(1) = prmin(1)*0.1
      high(1) = prmin(1)*4
      low(2) = prmin(2)*0.1
      high(2) = prmin(2)*10.
      low(3) = prmin(3)-12.5
      high(3) = prmin(3)+12.5

      call mninit( 5, minout, minsave)

      do  i= 1, nparam
!        nprm: a number given to a parameter: (label)
!        pnam: name of the parameer
!        vstrt: initial value of the parameter
!        stp:   initial step size of the //
!        next two: zero-->the parameter is not bounded (lower or upper)
!        ierflg: retrun value; cond code. 0--> ok

         call mnparm(nlabel(i), pname(i), initval(i), step(i),
!     *    low(i, code), up(i, code), ierflg)
     *     low(i), high(i), ierflg)

         if (ierflg .ne. 0)  then
            write (0,'(a,i3)')  ' unable to define parameter no.',i
            stop
         endif
      enddo
!
      call mnseti('tranfit')
!       request fcn to read in (or generate random) data (iflag=1)
!            fcnk0: function to be minimuzed is calculated. also
!              there are other funcitons
!            one is the  argument to fcnk0.  seems to be converted to
!            integer inside.
!            1 number of argument in one  (one could be array)
!           ierflf: ouptut. 0-->ok
!            0: no external function is used in fcnk0

      call mnexcm(tranfnc, 'call fcn', one ,1,ierflg, 0)
!        fix the  3,4,5-th parameters,
!      call mnexcm(timefnc,'fix', fixlist ,3, ierflg,0)
!       print minumum things
      call mnexcm(tranfnc,'set print', zero ,1,ierflg,0)
!                use migrad method for minimization
!                with default condtions
      call mnexcm(tranfnc,'migrad', zero ,0,ierflg,0)
!                analysis of errors for all parameters
      call mnexcm(tranfnc,'minos', zero ,0,ierflg,0)
!                 call fcn with 3. i.e, ouput etc.
      call mnexcm(tranfnc,'call fcn', three , 1,ierflg, 0)

      do i = 1, nparam
         prmout(i) = oparam(i)
      enddo

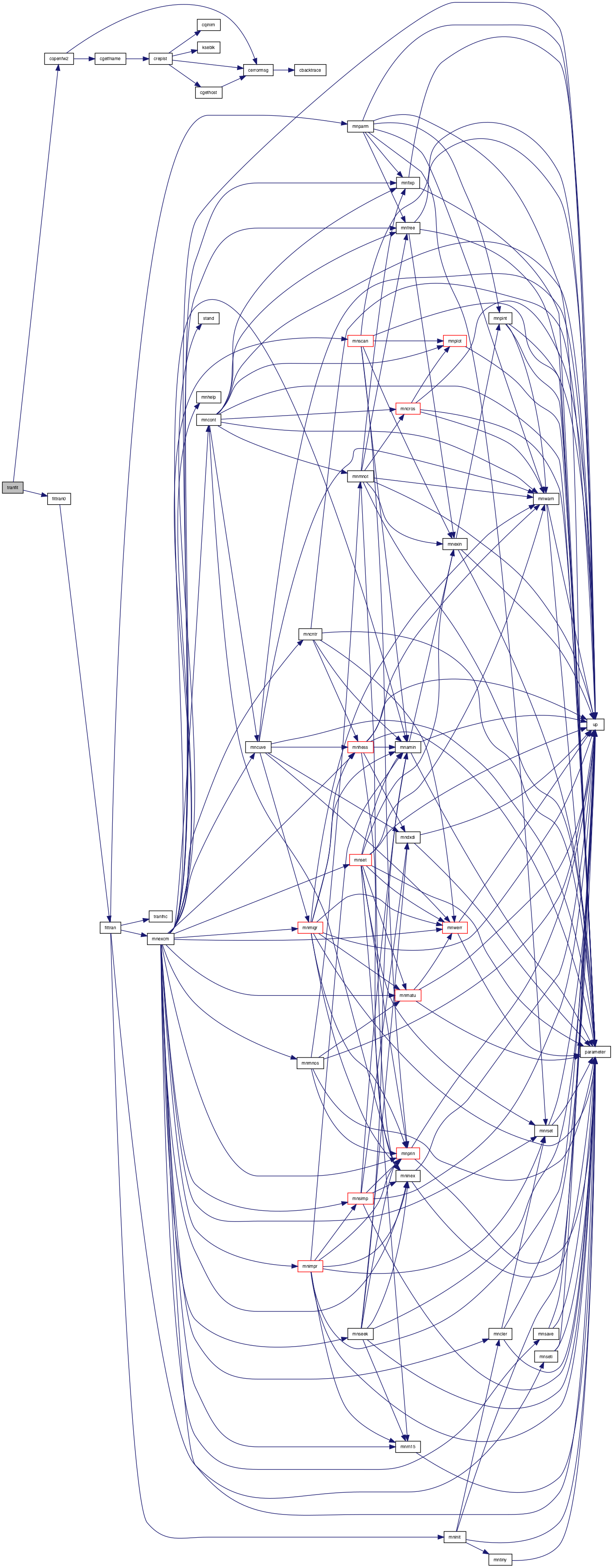

Here is the call graph for this function:

Here is the caller graph for this function:

fittran0()

subroutine fittran0	(	real*8, dimension(nbin)	xin,
		real*8, dimension(nbin)	yin,
		integer	nbin
	)

Definition at line 47 of file tranFit.f.

References drx1, drx2, e10, fittran(), from, maxdep, maxpos, maxval, op, param, and to.

Referenced by tranfit().

      implicit none
      include "Zfit.h"
      integer nbin
      real*8 xin(nbin), yin(nbin)
      real*8 xuse(nbin), yuse(nbin)
      real*8 prmout(nparam)

      integer i
      integer n1
      real*8 xx, f, xb, xmax
      real*8 a, s, x0




!          find max pos and use max of 9 points
!          around max.
!
      maxval = yin(1)-1.0e10
      do i = 1, nbin
         if(maxval .lt. yin(i))  then
            maxpos = i
            maxval = yin(maxpos)
         endif
      enddo

      maxdep = xin(maxpos)
      from = max(maxpos-2, 1)
      to = min(maxpos+2, nbin)
!
      write(0,*) ' max depth index and depth=', maxpos, maxdep
      write(0,*) ' layers for fitting are from', from, ' to ', to
!            a* exp(-((x-x0)/s)**2/2)
!
      param(1) = yin(maxpos)   ! a
      param(2) =  50.          ! s
      param(3) = maxdep       !  x0
      n1 = 0
      do i = from, to
         n1 = n1 + 1
         xuse(n1) = xin(i)
         yuse(n1) = yin(i)
      enddo
!
      call fittran( xuse, yuse, n1, param, prmout)
!

!               to see fitted result

      a = prmout(1)
      s = prmout(2)
      x0 = prmout(3)
!             coeff is put on stderr
      write(0,'(3g12.4)')  prmout
      xmax = x0
      write(0,'("max dep=",g12.3)') x0

      if(op .eq. 1) then
         xx = drx1*xmax
         do while ( xx .le. drx2*xmax )
            f= a*exp( - ((xx-x0)/s)**2/2.)
            write(*,*) xx, f
            xx = xx*10.0**0.002
         enddo
      elseif(op .eq. 2) then
         write(*,'(5G14.4)')  a, s, x0
      elseif(op .eq. 3) then
         write(*,*)  xmax, maxdep
      elseif(op .eq. 4) then
         write(*,'(7g14.4)') xmax, maxdep, a,s,x0
      elseif(op .eq. 5) then
         write(*,'(7g14.4)') xmax, maxdep, a,s,x0
         xx = drx1*xmax
         do while ( xx .le. drx2*xmax )
            f= a*exp( - ((xx-x0)/s)**2/2.)
            write(*,*) xx, f
            xx = xx*10.0**0.002
         enddo
      endif

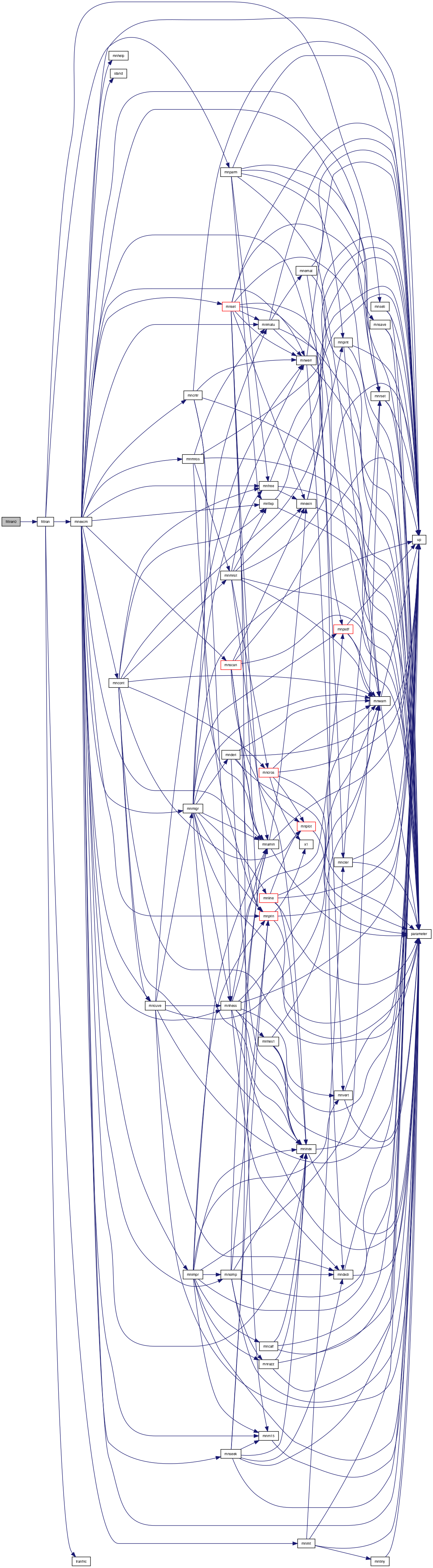

Here is the call graph for this function:

Here is the caller graph for this function:

tranfit()

program tranfit

(

)

Definition at line 3 of file tranFit.f.

References copenfw2(), fittran0(), op, and true.

Here is the call graph for this function:
