chook.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	chookbgrun
integer function	csighandler (sig, code, context)
subroutine	chookbgevent
subroutine	ccount (nc, aTrack)
subroutine	chookobs (aTrack, id)
subroutine	cwhere2dep (where, depth)
subroutine	chookenevent
subroutine	chookenrun
subroutine	chooktrace
subroutine	chookeint (never)
subroutine	chookgint (never)
subroutine	chooknepint (never)

Function/Subroutine Documentation

ccount()

subroutine ccount	(	integer, dimension(nth, nl)	nc,
		type(track)	aTrack
	)

Definition at line 115 of file chook.f.

References e, eth, mass, ne, ng, nh, nmu, ntha, p, parameter(), and where.

Referenced by chookobs().

      implicit none
#include "Zcode.h"
#include "Ztrack.h"

      type(track):: atrack
      integer i
!          ///////////
      integer nl, nth
      parameter(nl = 20, nth=12)
      common /testcos/eth(nth),
     * ng(nth, nl), ne(nth, nl), nmu(nth, nl),
     * nh(nth, nl), ntha
      integer ng, ne, nmu, nh, ntha
      real*8 eth
!
      integer nc(nth, nl)

      do i = 1, ntha
        if( atrack.p.fm.e- atrack.p.mass .lt. eth(i)) goto 10
        nc(i, atrack.where) =  nc(i, atrack.where) + 1
      enddo
 10   continue

Here is the call graph for this function:

Here is the caller graph for this function:

chookbgevent()

subroutine chookbgevent

(

)

Definition at line 77 of file chook.f.

References code, cqincident(), cqinirn(), e, eth, ne, ng, nh, nmu, ntha, p, parameter(), and r.

      implicit none
#include "Zmanagerp.h"
#include "Ztrack.h"
#include "Ztrackv.h"

!          ///////////
      integer nl, nth
      parameter(nl = 20, nth=12)
      common /testcos/eth(nth),
     * ng(nth, nl), ne(nth, nl), nmu(nth, nl),
     * nh(nth, nl), ntha
      integer ng, ne, nmu, nh, ntha
      real*8 eth
!     //////////////
      type(track):: inci
      type(coord):: angle

      integer  nev
!     //////////////
      integer i, j
      integer seed(2)
      do i = 1, nl
         do j = 1, ntha
            ng(j, i) = 0
            ne(j, i) = 0
            nh(j, i) = 0
            nmu(j, i) = 0
         enddo
      enddo

!      write(*, *)
      call cqincident(inci, angle)
      write(*,'(i7,i4,g13.4,3f10.7)') eventno, inci.p.code, inci.p.fm.e,
     *  -angle.r(1),  -angle.r(2), -angle.r(3)
      call cqinirn(seed)
!      write(*,*) ' seed=', seed

Here is the call graph for this function:

chookbgrun()

subroutine chookbgrun

(

)

Definition at line 10 of file chook.f.

References cprintobs(), cprintprim(), csighandler(), cwriteparam(), d, d0, eth, ne, ng, nh, nmu, ntha, and parameter().

      implicit none
#include "Zmanagerp.h"
#include "Ztrack.h"
#include "Ztrackv.h"

!          ///////////
      integer nl, nth
      parameter(nl = 20, nth=12)
      common /testcos/eth(nth),
     * ng(nth, nl), ne(nth, nl), nmu(nth, nl),
     * nh(nth, nl), ntha
      integer ng, ne, nmu, nh, ntha
      real*8 eth
!     //////////////

!         If you feel writing the parameters on stderr is
!         a bother, comment out the next or
!         use other device than ErrorOut.
!         Also you may comment out all output routines below.
#ifdef sun4
      external csighandler
      integer  ieeer, ieee_handler

      ieeer = ieee_handler('set', 'invalid', csighandler)
#endif

!
!            namelist output
      call cwriteparam(errorout, 0)
!            primary information
      call cprintprim(errorout)
!            observation level information
      call cprintobs(errorout)

      eth(1) = 0.3d-3
      eth(2) = 0.5d-3
      eth(3)=  1.d-3
      eth(4) = 2.d-3
      eth(5) = 5.d-3
      eth(6) = 10.d-3
      eth(7) = 20.d-3
      eth(8)=  50.d-3
      eth(9) = 100.d-3
      eth(10) = 200.d-3
      eth(11) = 500.d-3
      eth(12) = 1.d0

!      ////////////
      ntha = 1  !  for each ptcle out put use only 1 threshold
!     /////////////

Here is the call graph for this function:

chookeint()

subroutine chookeint

(

integer

never

)

Definition at line 414 of file chook.f.

            implicit none

#include  "Ztrack.h"
#include  "Ztrackv.h"
!  #include  "Ztrackp.h"

      integer never   ! input & output

!         don't make never = 1, if you want to get
!         information after an electron made interaction
!         if this is made non zero, this routine will never be called.
!
!   MovedTrack is the electron that made interaction
!   Pwork contains produced particles.
!   Nproduced has the number of particles in Pwork
!   IntInfArray(ProcessNo) contains the type of interaction
!
!        default setting
      never = 1
!
!        IntInfArray(ProcessNo).process will have one of
!       'brems', 'mscat', 'bscat', 'anihi' or 'mbrem'
!

chookenevent()

subroutine chookenevent

(

)

Definition at line 288 of file chook.f.

References cecent2sph(), cqfirstid(), cqincident(), d0, depth, eth, ne, ng, nh, nmu, ntha, p, parameter(), and r.

      implicit none
#include "Ztrack.h"
#include "Ztrackv.h"
#include "Zobs.h"
#include "Zobsp.h"
#include "Zobsv.h"




      type(track):: inci
      type(coord):: angle, tetafai
      integer i, j

!          ///////////
      integer nl, nth
      parameter(nl = 20, nth=12)
      common /testcos/ eth(nth),
     * ng(nth, nl), ne(nth, nl), nmu(nth, nl),
     * nh(nth, nl), ntha
      integer ng, ne, nmu, nh, ntha
      real*8 eth
!     //////////////



!          ///////////
      real*8  fdepth, bsin, teta, fai, sumsize
      real*8  cgetbsin, sumx, sumy
      real*8 avex,  avey, sume
      integer nnew
!     //////////////
!       call cqIncident(inci, angle)
!      write(*,*) inci.vec.coszenith, angle.r(3)

      if(observeas) then
         call cqfirstid(fdepth)
         fdepth = fdepth * 0.1         ! in g/cm2
         call cqincident(inci, angle)
         angle.r(1) = -angle.r(1)   ! angle is directed to downward
         angle.r(2) = -angle.r(2)
         angle.r(3) = -angle.r(3)
         call cecent2sph(angle, tetafai)
         teta = tetafai.r(1)
         fai = tetafai.r(2)
         if(fai  .lt. 0. ) fai = 360.d0+fai
         bsin = cgetbsin(inci.p, mag)*1.e4
!                   electron size in B approx.
!         write(*, *) (ASObsSites(i).esize, i=1, NoOfASSites)
!                   size weighted age
!         write(*, *) (ASObsSites(i).age,   i=1, NoOfASSites)
         sumsize = 0.
!         write(*, *)
        do j = 1, ntha
          if(ntha .gt. 1) then
!             write(*,*) j
          endif
           do i = 1, noofassites
              sumsize = sumsize + asobssites(i).esize
               write(*, '(f7.1,g13.3,f8.3,f7.1,
     *             4i8,f7.4)')
!     *       f8.3,    g13.3,f10.3,f10.3) ')
!     *           sngl(ASObsSites(i).pos.depth/10./angle.r(3)),
     *           sngl(asobssites(i).pos.depth/10.),
     *           sngl(asobssites(i).esize),
     *           sngl(asobssites(i).age), sngl(fdepth),
!     *           sngl(bsin), sngl(sumsize), sngl(teta), sngl(fai)
     *           ne(j, i), nmu(j, i), nh(j, i), ng(j, i), eth(j)
            enddo
         enddo
      endif

Here is the call graph for this function:

chookenrun()

subroutine chookenrun

(

)

Definition at line 366 of file chook.f.

      implicit none

chookgint()

subroutine chookgint

(

integer

never

)

Definition at line 443 of file chook.f.

            implicit none

#include  "Ztrack.h"
#include  "Ztrackv.h"
!  #include  "Ztrackp.h"

      integer never   ! input & output

!         don't make never = 1, if you want to get
!         information after a gamma ray made interaction
!         if this is made non zero, this routine will never be called.
!
!   MovedTrack is the gamma that made interaction
!   Pwork contains produced particles.
!   Nproduced has the number of particles in Pwork
!   IntInfArray(ProcessNo) contains the type of interaction
!
!        default setting
      never = 1
!         IntInfArray(ProcessNo).process will have one of
!        'pair', 'comp', 'photoe' 'photop' 'mpair'
!

chooknepint()

subroutine chooknepint

(

integer

never

)

Definition at line 471 of file chook.f.

References code, kkaon, kpion, p, and process().

            implicit none


#include  "Zcode.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"

!  #include  "Ztrackp.h"

      integer never   ! input & output

!         don't make never = 1, if you want to get
!         information after a non-e-g particle  made interaction
!         if this is made non zero, this routine will never be called.
!
!   MovedTrack is the particle that made interaction
!   Pwork contains produced particles.
!   Nproduced has the number of particles in Pwork
!   IntInfArray(ProcessNo) contains the type of interaction
!
!        default setting
!
!      never = 1
        never = 1
        if(movedtrack.p.code .eq.  kpion .or.
     *       movedtrack.p.code .eq.  kkaon) then
            if(intinfarray(processno).process .eq. 'coll') then
!              write(*,*)
!     *         MovedTrack.p.code,
!     *         sngl(MovedTrack.p.fm.p(4)), Nproduced
           endif
        endif
!
!        IntInfArray(ProcessNo).process  will have
!             'col' or 'decay'

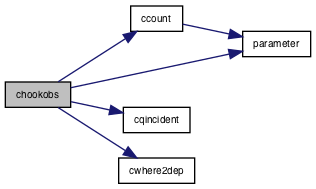

Here is the call graph for this function:

chookobs()

subroutine chookobs	(	type(track)	aTrack,
		integer	id
	)

Definition at line 143 of file chook.f.

References ccount(), charge, code, cqincident(), cwhere2dep(), eth, kelec, kkaon, kmuon, knuc, kphoton, kpion, ne, ng, nh, nmu, ntha, p, parameter(), x, y, and z.

!
!     Note that every real variable is in double  precision so
!     that you may output it in sigle precision to save the memory.
!     In some cases it is essential to put it in sigle (say,
!     for gnuplot).
!
      implicit none
#include "Zcode.h"
#include "Ztrack.h"
#include "Ztrackv.h"
#include  "Zheavyp.h"
      integer id  ! input.  1 ==> aTrack is going out from
!                                 outer boundery.
!                           2 ==> reached at an observation level
!                           3 ==> reached at inner boundery.
      type(track):: atrack
      type(track):: inci
      type(coord):: angle, tetafai
!      integer i
!          ///////////

!          ///////////
      integer nl, nth
      parameter(nl = 20, nth=12)
      common /testcos/eth(nth),
     * ng(nth, nl), ne(nth, nl), nmu(nth, nl),
     * nh(nth, nl), ntha
      integer ng, ne, nmu, nh, ntha
      real*8 eth
!     //////////////
      real*8 depth
      integer iij



!
!     For id =2, you need not output the z value, because it is always
!     0 (within the computational accuracy).
!
!      if(id .eq. 2 .and. aTrack.p.code .eq. kmuon ) then
       if( id .eq. 2) then
           call cqincident(inci, angle)
           iij = atrack.p.code
!          call cgpid(iij, ptclid)
           if(iij .eq. kelec ) then
              call ccount(ne, atrack)
!              ne(aTrack.where) = ne(aTrack.where) + 1
           elseif(iij  .eq. kphoton ) then
              call ccount(ng, atrack)
!              ng(aTrack.where) = ng(aTrack.where) + 1
           elseif(iij .eq. kmuon ) then
              call ccount(nmu, atrack)
!              nmu(aTrack.where) = nmu(aTrack.where) + 1
           elseif( iij .eq. kpion  .or. iij .eq.  kkaon .or.
     *        iij .eq. knuc) then
              if(atrack.p.charge .ne. 0 ) then
                 call ccount(nh, atrack)
!                 nh(aTrack.where) = nh(aTrack.where) + 1
              endif
           endif
        endif

!            output typical quantities.
!         id .eq. 2 below  if want otuput
!        if(id .eq. 2 .and. aTrack.where .eq.  8 ) then
!        if(id .eq. 2 .and. aTrack.where .eq.  1 ) then
        if(id .eq. 0 ) then  ! never happens
!         if(aTrack.p.code .ne. kneue .and. aTrack.p.code .ne.
!     *    kneumu) then
           call cwhere2dep(atrack.where, depth)
!           write(*,*) int(depth/10. +0.001),
           write(*,*)
     *     atrack.p.code,
!     *  aTrack.p.subcode,
!     *     aTrack.p.charge,
!     *     sngl(aTrack.p.fm.e-aTrack.p.mass),
!     *      sngl(aTrack.vec.coszenith),
!     *      sngl(inci.p.fm.p(4)-inci.p.mass)/
!     *      Code2massN(int(inci.p.code)),
!     *      inci.p.code,
!     *     aTrack.pos.xyz.x, aTrack.pos.xyz.y,  aTrack.pos.xyz.z,
     *    sngl(atrack.vec.w.x), sngl(atrack.vec.w.y),
     *    sngl(atrack.vec.w.z),
     *     atrack.vec.w.x**2+atrack.vec.w.y**2+atrack.vec.w.z**2
!
!       write(*,
!     *  '(i2,1x,i2,1x,f12.2, g13.4, f12.2,1x, f12.2,1x,f7.4,i3)')
!     * nev,
!     *  aTrack.where,   !  observation level. integer*2.  1 is highest.
!     *  aTrack.p.code,  ! " ", ptclid,    !  ptcl code.  integer*2.
!     *  aTrack.p.charge,  !  charge,  integer*2
!     *  sngl(aTrack.t), !  relateive arrival time in nsec (NOT sec).
!                        !  if TimeStructure is F, nonsense.
!     *  sngl(aTrack.p.fm.e), !  - aTrack.p.mass), ! kinetic energy in GeV
!     *  sngl(aTrack.pos.xyz.x), sngl(aTrack.pos.xyz.y),  !  x, y, erg in m
!     *  sngl(aTrack.vec.w.x),  ! direc. cos.x in the current detector system.
!     *  sngl(aTrack.vec.w.y),  ! direc. cos.y
!     *  sngl(aTrack.vec.w.z),  ! direc. cos.z
!     * sngl(-angle.r(3)) ,
!     * sngl(aTrack.vec.coszenith),  ! cos of zenith angle
!     * sngl(inci.p.fm.p(4)-inci.p.mass)/Code2massN(int(inci.p.code)),
!     * inci.p.code
!         if(aTrack.p.code .eq. kelec) then
!            write(*, *) aTrack.where
!         endif
!      endif
!         you may need in some case other information such as
!     *  aTrack.p.subcode   ! sub code of the particle integer*2
!       aTrack.p.mass      ! mass
!       aTrack.wgt         ! weight of the particle (may not be 1. if
!                           ! ThinSampling =T)
!       aTrack.p.fm.x      ! momentum x component.  Note. Momentum is
!                            given in the  Earth xyz system.

!       aTrack.p.fm.y      !          y
!       aTrack.p.fm.z      !          z
!        if(aTrack.p.code .eq. kelec .or. aTrack.p.code .eq. kphoton)
!     *     then
!           ng = ng+1
!           sumg = sumg + aTrack.p.fm.e

!        endif
      endif

Here is the call graph for this function:

chooktrace()

subroutine chooktrace

(

)

Definition at line 378 of file chook.f.

References height.

            implicit none

#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"
#include  "Zobs.h"
#include  "Zobsv.h"

       real*4 h1,  h2
!
!    Every time a particle is moved in the atmosphere, this routine is called,
!    if trace > 100
!         For a one track segment,
!     TrackBefMove  has  track information at the beginning of the segment.
!     MoveTrack    has   track information at the end of the segment.
!
!     You can know the  information a track contains in the
!     chookObs routine. (Note however, no conversion of coordinate
!     has been done.  The values are in the Earth xyz system.)
!     Besides quantities explained there, you can use, for a  given 'track'
!
!     atrack.pos.xyz.x, atrack.pos.xyz.y, atrack.pos.xyz.z    (x,y.z)
!     atrack.pos.radiallen   (distance from the center of the earth)
!     atrack.pos.depth       (vertical depth)
!     atrack.pos.height      (vertical heigth from sea level)
!

      h1 = trackbefmove.pos.height- obssites(noofsites).pos.height
      h2 = movedtrack.pos.height - obssites(noofsites).pos.height

csighandler()

integer function csighandler	(	integer	sig,
		integer	code,
		integer, dimension(5)	context
	)

Definition at line 63 of file chook.f.

Referenced by chookbgrun().

      implicit none
#include "Zmanagerp.h"
      integer sig, code, context(5)
      write(errorout, *)  ' f.p exception content=' , context(4)
!      call abort()

Here is the caller graph for this function:

cwhere2dep()

subroutine cwhere2dep	(	integer*2	where,
		real*8	depth
	)

Definition at line 268 of file chook.f.

Referenced by chookobs().

      implicit none
#include "Zcoord.h"
#include "Zpos.h"
#include "Zmagfield.h"
#include "Zobs.h"
#include "Zobsv.h"

      integer*2 where
      real*8 depth
      if(where .le. 0 .or. where .gt. noofsites) then
         write(*,*) where, noofsites
         stop 'error'
      endif

      depth =obssites(where).pos.depth

Here is the caller graph for this function:
