interface.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	xbgrun

Function/Subroutine Documentation

xbgrun()

subroutine xbgrun

(

)

Definition at line 10 of file interface.f.

References cdedxinair(), cerrormsg(), charge, cmudedx(), copenfw2(), cqincident(), csortstack(), d, d0, depth, e, false, height, kelec, kmuon, kphoton, mass, ne, ng, nmu, p, subcode, t, true, x, xyz, and y.

Referenced by chookbgrun().

      implicit none
#include  "Zmaxdef.h"
#include "Zmanagerp.h"
#include "Ztrack.h"
#include "Ztrackv.h"
#include "Ztrackp.h"
#include "Zcode.h"
#include "Zheavyp.h"
#include "Zobs.h"
#include "Zobsp.h"
#include "Zobsv.h"
#include  "Zstackv.h"
#include  "Zincidentv.h"

#include "Zprivate.f"
#ifdef USEHISTO
#include "Zprivate1.f"
#include "Zprivate2.f"
#include "Zprivate3.f"
      save rspec, lossrspec, arspec,  respec
      save rzspec,  zfspec, rtspec1, rtspec2, retspec1, retspec2
      save rezspec,  rzfspec, rfspec, efspec, refspec
#endif

      type(track):: incident
      type(coord):: angleatobs

      logical  heobs            ! if T, currently observing
      common /zheobs/ heobs     !  particle is the one  obsrved at skeelton making time




      integer id  ! input.  1 ==> aTrack is going out from
!                                 outer boundery.
!                           2 ==> reached at an observation level
!                           3 ==> reached at inner boundery.
      type(track):: atrack

      type(track):: inci
      type(coord):: angle
      type(coord):: tetafai

      character*128 input
      character*64 dirstr
      real sr, dr
      integer i, j, k, icon, ir, l
      integer nn
      integer iij, code, codex
      integer i1, i2, ic

      real*8 r, eloss, rinmu, cosang
      real*8 dedt, rho, dist, disto, dedxmu
      real*8 fai, rminm

      real*8 u
      logical accept
      real*8 wx, wy, wz,  temp
      real   za
      real  de, ek, f, molu
      real*8  cvh2den
      integer ldep, ridx, faiidx
      integer lengenv
      integer  ncpu ! # of smashed skeletons
      integer  mcpu ! and  skeletons to be used actully
      integer  margin ! # of additional skeletons fleshed for safety
      real*4 enhance  ! since we use only mcpu, the result must be enhanced
                      ! by a factor of ncpu/mcpu
      integer binw
      character*9 ptcl(4)
      data ptcl/"Photons", "Electrons","Muons", "hadrons"/
      character*9 ptcl2(3)
      data ptcl2/"Electrons", "Muons","All"/
      real power(3)
      integer nstr
      real e0,  cosz, limit, limite
      data power/2.,2.,1./
      real  power2(3)
      data power2/2.,1.,2./
      character*128 title
      character*96 evid(nsites)
      real*8 cog, cog2, sumne,  obstimes, savederg(5)
      real*8 firstz, dd
      logical dosort
      character*2  kd(3)
      integer kgetenv2
      integer leng,  lengn, lengid
      character*5 numb
      character*64 execid
      character*128 msg

      save

#ifdef  USEHISTO
#include "interfaceHBGR.f"
#endif
!             used only if enhace >1; but the value may be different
      limit = 20000
      lengenv = kgetenv2("NCPU", input)
      read(input(1:lengenv),*)  ncpu
      lengenv = kgetenv2("MCPU", input)
      read(input(1:lengenv),*)  mcpu
      lengenv = kgetenv2("MARGIN", input)
      read(input(1:lengenv),*)  margin
      enhance = ncpu
      enhance = enhance/mcpu
      limite = limit * enhance  ! this must be enhanced from the first.
      write(0,*) ' *** ncpu=',ncpu,
     *            ' mcpu=',mcpu, ' enhance factor=',enhance
      write(0,*) ' margin=',margin
      input = ' '
      lengn =  kgetenv2("NUMB", numb)
      leng =  kgetenv2("OUTDIR", input)
      lengid = kgetenv2("EXECID", execid)

      if(observeas) then
         msg =input(1:leng)//"/"//execid(1:lengid)//
     *        "-@."//numb(1:lengn)//".hyb"
         call copenfw2(fnob, msg, 1, icon)
         if(icon .gt. 1) then
            write(0,*) ' icon=', icon
            call cerrormsg(msg, 1)
            call cerrormsg('could not be opened', 0)
         endif
      endif
      return
!     *********************************** hook for Beginning of  1 event
!     *  All system-level initialization for 1 event generation has been
!     *  eneded at this moment.
!     *  After this is executed, event generation starts.
!     *
      entry xbgevent

      obstimes = 0.
      call cqincident(inci, angle)

      cosz = -angle.r(3)
      e0 = inci.p.fm.p(4)
      if(inci.p.code .eq. 9) then
         nn= inci.p.subcode
      elseif(inci.p.code .eq. 1) then
         nn=0
      else
         nn=1
      endif
!         next is only available for parallel job.  For normal job,
!         fisrt col.depth is not yet fixed.
      firstz= zfirst.pos.depth*0.1
      write(0,'(a,1pE11.3,a,E11.3,a,E11.3,a)')
     *     ' E0=',e0, ' cosz=',cosz, ' firstz=',
     *    firstz, ' g/cm2'
!
      do i = 1, noofassites
         sumeloss(i) = 0.
         ng(i) = 0.
         ne(i) = 0.
         nmu(i) = 0.
         nhad(i) = 0.
      enddo
#ifdef USEHISTO
#include "interfaceHBGE.f"
#endif
      return
!     ***************
      entry xobs(atrack, id)
!
!     For id =2, you need not output the z value, because it is always
!     0 (within the computational accuracy).
!
!     **************************
!            to be able to see the job is really running (i.e, no loop)
!         we write messages every 500000 calls.
!
      obstimes = obstimes + 1.d0
      if(mod(obstimes, 500000.d0) .eq. 0. ) then
         dosort=.false.
         do i = 1, min(4,stack_pos)
            if(stack(i).p.fm.p(4) .ne. savederg(i)) then
               savederg(i)=stack(i).p.fm.p(4)
               dosort=.true.
            endif
         enddo
         if(dosort) then
            call csortstack
         endif
         write(0, *) ' obstimes=', obstimes, ' ptclE=',atrack.p.fm.p(4)
         do i = 1, min(4,stack_pos)
            write(0,*)' stack tops=', stack(i).p.fm.p(4)
         enddo
      endif
!     ***************
      code = atrack.p.code
      if(id .eq. 2 .and. code .le. 6 ) then
         codex=min(code, 4)
         wz = atrack.vec.w.r(3) ! downgoing < 0
         if(wz .gt. 0) return
         wz = -wz
         ldep =  atrack.where

         if(code .eq. kphoton) then
            ng(ldep) = ng(ldep) + enhance
         elseif(code .eq. kelec) then
            ne(ldep) = ne(ldep) + enhance
         elseif(code .eq. kmuon) then
            nmu(ldep) = nmu(ldep) + enhance
         else
            nhad(ldep)=nhad(ldep) + enhance
         endif

         ek = atrack.p.fm.p(4) -atrack.p.mass

!            ---------- compute energy loss rate
         if(atrack.p.charge .ne. 0  ) then
            rho = cvh2den(atrack.pos.height)
!         get energy loss when aTrack goes 1 g/cm2 along the
!         primary direction. Gramage the particle can run is
!         1/cos where cos is the cos of angle relative to the
!         primary angle . 1g/cm^2 = 10-3kg/10-4 m^2 =10 kg/m^2.
!         To travel  1 g/cm^2  along shower axis, the ptcl must
!         run dist kg/m^2
            if(abs(wz) .gt. 1.d-2) then
               dist =10./wz     ! in kg/m2/(g/cm2)
            else
!                      for safety
               dist =1000.
            endif
            if( heobs ) then
!                   the ptcls is the one obsrved at skeleton making time
!                   we must compute dedt here
               call cdedxinair(atrack.p, rho, dedt) ! dedt; GeV/(kg/m2)
               if(atrack.p.code .eq. kmuon ) then
!                dE/dx due to muon pair, brem, nuc.i
                  call cmudedx(muni, mubr, mupr, atrack.p.fm.p(4),
     *                 dedxmu)  ! dedxmu in GeV/(g/cm2)
                  dedxmu = dedxmu /10. !  GeV/(kg/m2)
                  dedt = dedt + dedxmu
               endif
            else
!               we can use already computed one
               call cqelossrate(dedt) !  loss rate GeV/(kg/m^2)
            endif
!                       energy loss rate
            eloss = dedt*dist*enhance !  GeV/(g/cm2)

            sumeloss(ldep)=sumeloss(ldep) + eloss
         else
            eloss=0.
         endif
         if(atrack.where .eq. 6) then
            write(*,
     *           '(4i3, 1p4E11.3, 0p, 2f8.4,f10.6)')
     *        ldep,  code,  atrack.p.subcode, atrack.p.charge,
     *        ek, atrack.t,
     *        atrack.pos.xyz.x, atrack.pos.xyz.y,
     *        -atrack.vec.w.r(1),  -atrack.vec.w.r(2),  wz
         endif
      endif
#ifdef USEHISTO
#include "interfaceHOBS.f"
#endif
      return
!     **************
      entry xenevent
!     **************
      firstz= zfirst.pos.depth*0.1
      if(observeas) then
         cog = 0.
         sumne = 0.

         do i = 1, noofassites
            asobssites(i).esize = asobssites(i).esize* enhance
            if(i .gt. 1 .and. i  .lt. noofassites ) then
               dd =(asdepthlist(i+1) - asdepthlist(i-1))/2.0
            elseif(i .eq. 1) then
               dd =(asdepthlist(2) - asdepthlist(1))
            else
               dd =(asdepthlist(noofassites) -
     *              asdepthlist(noofassites-1))
            endif
            cog = cog + asobssites(i).esize*dd*asdepthlist(i)
            sumne= sumne +asobssites(i).esize*dd
         enddo
!          0.1 is for g/cm2
         cog = cog*0.1/sumne
         cog2 = 0.
         sumne = 0.
         do i = 1, noofassites
            if( asobssites(i).age .gt.
     *          (2.0-asobssites(noofassites).age))  then
               if(i .gt. 1 .and. i  .lt. noofassites ) then
                  dd =( asdepthlist(i+1) - asdepthlist(i-1))/2.0
               elseif(i .eq. 1) then
                  dd =(asdepthlist(2) - asdepthlist(1))
               else
                  dd =(asdepthlist(noofassites) -
     *              asdepthlist(noofassites-1))
               endif
               dd = dd
               cog2 = cog2 + asobssites(i).esize*asdepthlist(i)*dd
               sumne= sumne +asobssites(i).esize*dd
            endif
         enddo
         if(sumne .gt. 0.) then
            cog2 = cog2*0.1/sumne
         else
!              too deep penetration
            cog2 = asdepthlist(noofassites)*0.1
         endif

         if(fnob .ge. 0 )  then
            write(fnob,
     *      '("h ", i4,  3i3, 1pE11.3, 0p 3f11.7, f7.2, 2f7.0)')
     *      eventno,  inci.p.code,
     *      inci.p.subcode, inci.p.charge,
     *      inci.p.fm.e, -angle.r(1), -angle.r(2), -angle.r(3),
     *      firstz, cog, cog2
         endif
         do i = 1, noofassites
            if(fnob .ge. 0) then
               write(fnob, '("t ", i3, 2f7.1,  2f6.3,
     *         1p6E11.3)')
     *          i,
     *          asdepthlist(i)*0.1,  asobssites(i).mu,
     *          asobssites(i).age,   asdepthlist(i)*0.1/cog2,
     *          ng(i), ne(i), nmu(i), nhad(i),
     *          asobssites(i).esize, sumeloss(i)
            endif
         enddo
         if(fnob .gt. 0 ) then
            write(fnob,*)
         endif
      endif
#ifdef USEHISTO
#include "interfaceHENE.f"
#endif

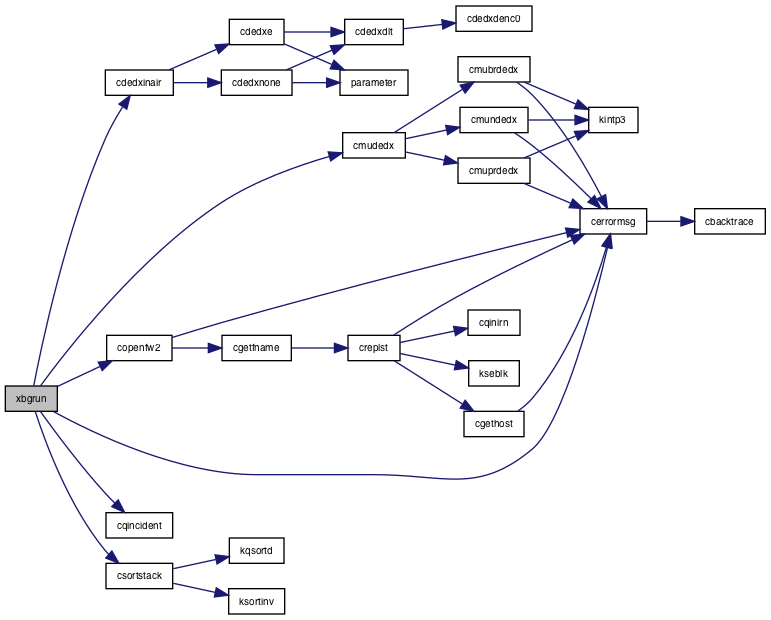

Here is the call graph for this function:

Here is the caller graph for this function:
