Gencol3.f File Reference

Go to the source code of this file.

Functions/Subroutines
program	__gencol3.f__
subroutine	init
subroutine	readinpfile (eof)
subroutine	formpjtg (confirm)
subroutine	outresul (a, ntp)
subroutine	gencol (a, ntp)
subroutine	cutbyangle (a, ntp0, ntp)
subroutine	sortbyke (a, ntp)
subroutine	outtrace (nev, a, ntp)

Function/Subroutine Documentation

__gencol3.f__()

program __gencol3.f__

(

)

Definition at line 9 of file Gencol3.f.

References cmydecay(), cutbyangle(), formpjtg(), gencol(), init(), inpfileno, j, kbomega, kdmes, keta, kgzai, kkaon, klambda, klambdac, komega, kphi, kpion, krho, ksigma, outresul(), outtrace(), readinpfile(), and sortbyke().

      integer i, nev, j, ntp, eof, ntpout

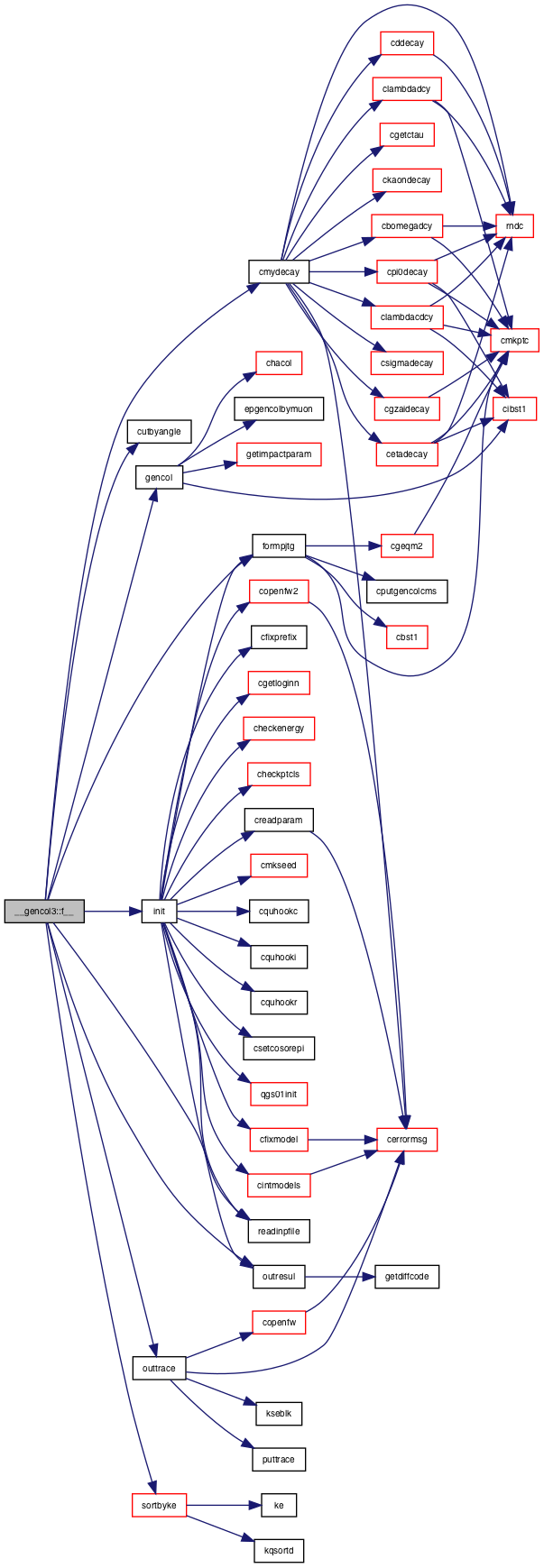

Here is the call graph for this function:

cutbyangle()

subroutine cutbyangle	(	type (ptcl), dimension(*)	a,
		integer	ntp0,
		integer	ntp
	)

Definition at line 403 of file Gencol3.f.

References a, and wzmax.

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnv.h"
#include  "Zevhnp.h"
#include  "Zmanagerp.h"
      include "Zprivate.h"
      type(ptcl)::  a(*)
      integer ntp0 ! input. number of ptcls. in a
      integer ntp  ! output. could be the same as ntp0
      integer j
      integer  i
      real*8 p, wz
      j = 0
      do i = 1, ntp0
         p = a(i)%fm%p(1)**2 + a(i)%fm%p(2)**2 +
     *       a(i)%fm%p(3)**2
         p = sqrt(p)
         wz = a(i)%fm%p(3)/p
         if( wz .ge. wzmin .and. wz .le. wzmax ) then
            j = j + 1
            a(j)=a(i)
         endif
      enddo
      ntp = j

formpjtg()

subroutine formpjtg

(

integer

confirm

)

Definition at line 190 of file Gencol3.f.

References cbst1(), cmkptc(), kgnuc, pjcode, pjpx, pjpy, pjsub, tgcode, tgpx, tgpy, and tgsub.

!     ******************
      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanager.h"
#include  "Zmanagerp.h"
#include  "Ztrackp.h"

      include "Zprivate.h"

      integer confirm  !  input. if 0, root s is  not printed.
                      !         else  printed
      real*8   roots, s
!         form projectile  and target

      call cmkptc(pjcode, pjsub, pjchg,   pj)

      if(pjcode .ne. kgnuc) then
         pjmnum = 1
      else
         pjmnum = pjsub
      endif
      pj%fm%p(1) = pjpx*pjmnum
      pj%fm%p(2) = pjpy*pjmnum
      pj%fm%p(3) = pjpz*pjmnum
      pj%fm%p(4) =
     *     sqrt(pj%fm%p(1)**2 + pj%fm%p(2)**2 + pj%fm%p(3)**2
     *     + pj%mass**2)

!       make taget (rest of moving -z)
      call cmkptc(tgcode, tgsub, tgchg, tg)
      if(tgcode .ne. kgnuc) then
         tgmnum = 1
      else
         tgmnum = tgsub
      endif
      tg%fm%p(1) = tgpx*tgmnum
      tg%fm%p(2) = tgpy*tgmnum
      tg%fm%p(3) = tgpz*tgmnum
      tg%fm%p(4) =
     *     sqrt(tg%fm%p(1)**2 + tg%fm%p(2)**2 + tg%fm%p(3)**2
     *   +   tg%mass**2)
!
      if(tgpx .eq. 0. .and. tgpy .eq. 0. .and.
     *        tgpz .eq. 0.)  then
!     target is at rest;
         s= 2*pj%fm%p(4)*tg%mass +tg%mass**2 + pj%mass**2
      else
!         by  general formula
         s = (pj%fm%p(4)+tg%fm%p(4))**2 -
     *    (pjpx+tgpx)**2 + (pjpy+tgpy)**2+(pjpz+tgpz)**2
      endif
      roots = sqrt(s)
      if(confirm .ne. 0) then
         write(0, *) ' roots/2=', roots/2
      endif
!c           boost to target rest system
      call cbst1(1, tg, pj, plab)

Here is the call graph for this function:

gencol()

subroutine gencol	(	type (ptcl), dimension(*)	a,
		integer	ntp
	)

Definition at line 355 of file Gencol3.f.

References a, chacol(), cibst1(), kgnuc, and knuc.

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnv.h"
#include  "Zevhnp.h"
#include  "Zmanagerp.h"
      include "Zprivate.h"
      type(ptcl)::  a(*)
!             projectile and target information (both befor
!             and after collision ) in different system.
!
      integer  ntp
      integer j
      integer tz, ta
      real*8  xs
!
      if( tg%code .eq. knuc ) then
         ta = 1
      elseif( tg%code .eq. kgnuc ) then
         ta = tg%subcode
      else
         write(0,*) ' target code=', tg%code, 'invalid'
         stop 9999
      endif
      tz =  tg%charge

#ifdef QGSJET1
      if(activemdl .eq. 'qgsjet1') then
         call qgs01event(plab, ta, tz, a, ntp)
      endif
#elif defined SIBYLL
      if(activemdl .eq. 'sibyll') then
         call sibyllevent(plab, ta, tz, a, ntp)
      endif
#else
      if(activemdl .eq. 'qgsjet2' ) then
         call cxsecqgs(plab, ta, xs)
      endif
      call chacol(plab, ta, tz,  a, ntp)
#endif
      do j = 1, ntp
!               boost to  target mooving system
         call cibst1(j, tg,  a(j), a(j))
      enddo

Here is the call graph for this function:

init()

subroutine init

(

)

Definition at line 65 of file Gencol3.f.

References cfixmodel(), cfixprefix(), cgetloginn(), cintmodels(), cmkseed(), copenfw2(), cquhookc(), cquhooki(), cquhookr(), creadparam(), csetcosorepi(), formpjtg(), inpfileno, pjcode, pjpx, pjpy, pjsub, qgs01init(), readinpfile(), tgcode, tgpx, tgpy, tgsub, trackl, wzmax, and xyz.

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanager.h"
#include  "Zmanagerp.h"
#include  "Ztrackp.h"

      include  "Zprivate.h"
      character*200 input, file
      character*20 uid
      integer klena, icon, eof

      external cblkmanager
      external cblkevhnp

      call creadparam(5)
      if(tracedir .eq. ' ') then
         call cgetloginn(uid)
         tracedir = '/tmp/'//uid(1:klena(uid))
      endif

      if(desteventno(2) .eq. 0) then
         nevent =abs( desteventno(1) )
      else
         nevent = abs( desteventno(2) )
      endif
      call cmkseed(initrn(1), initrn)
      call rnd1i(initrn)        ! random number init.
      call cquhookr(1, wzmin)
      call cquhookr(2, wzmax)
      call cquhookr(3, trackl)
      call cquhooki(1, outzero)
!
!       make projectile going +z
      call cquhookc(1, input)

      if(input(1:4) .eq. "file") then
         read(input(5:10), *) inpfileno
         xyz=index(input, "xyz")
         call cquhookc(2, input)

         file = ' '
         file=input(1:klena(input))

         call copenfw2(inpfileno, file, 1, icon)
         if(icon .ne. 1) then
            write(0,*)
     *      ' file=', file, ' cannot be opened in Gencol'
            stop 9999
         endif
         call readinpfile(eof)
!          once rewind to read successively for event generation
         rewind inpfileno
      else
         inpfileno=0
         read(input, *)
     *        pjcode, pjsub, pjchg, pjpx, pjpy, pjpz
         call cquhookc(2, input)
         read(input, *)
     *        tgcode, tgsub, tgchg, tgpx, tgpy, tgpz
         call cquhookc(3, input)
         if(input .ne. ' ') then
            read(input, *) xpos, ypos, zpos
            xyz = 1
         else
            xyz = 0
         endif
      endif

      call formpjtg(1)

      call cfixprefix('configDummy')
      call csetcosorepi('epics')
      if( index( intmodel,'qgsjet1') .ne. 0 ) then
#ifdef QGSJET1
         call qgs01init
         activemdl = 'qgsjet1'
#else
         write(0,*) 'to use qgsjet1,  define it  in Zintmodel%h'
#endif
      elseif(index(intmodel, 'sibyll') .ne. 0 )  then
#ifdef  SIBYLL
         call sibyllinit
         activemdl = 'sibyll'
#else
         write(0,*) 'to use sibyll, define it in Zintmodel%h'
#endif
      else
         call cintmodels('epics')
         call cfixmodel( plab )
      endif

      write(0, *) 'Active int. model=',activemdl
      write(0, *) ' equiv. lab E=', plab%fm%p(4)
      if(xyz .eq. 0) then
!         write(*, '(a)') '#  mulsubKEdir  user '
      else
!         write(*, '(a)') '#  mulsubKExyzdir  user '
      endif
!      write(*, '(a)') '#--------------------------------'

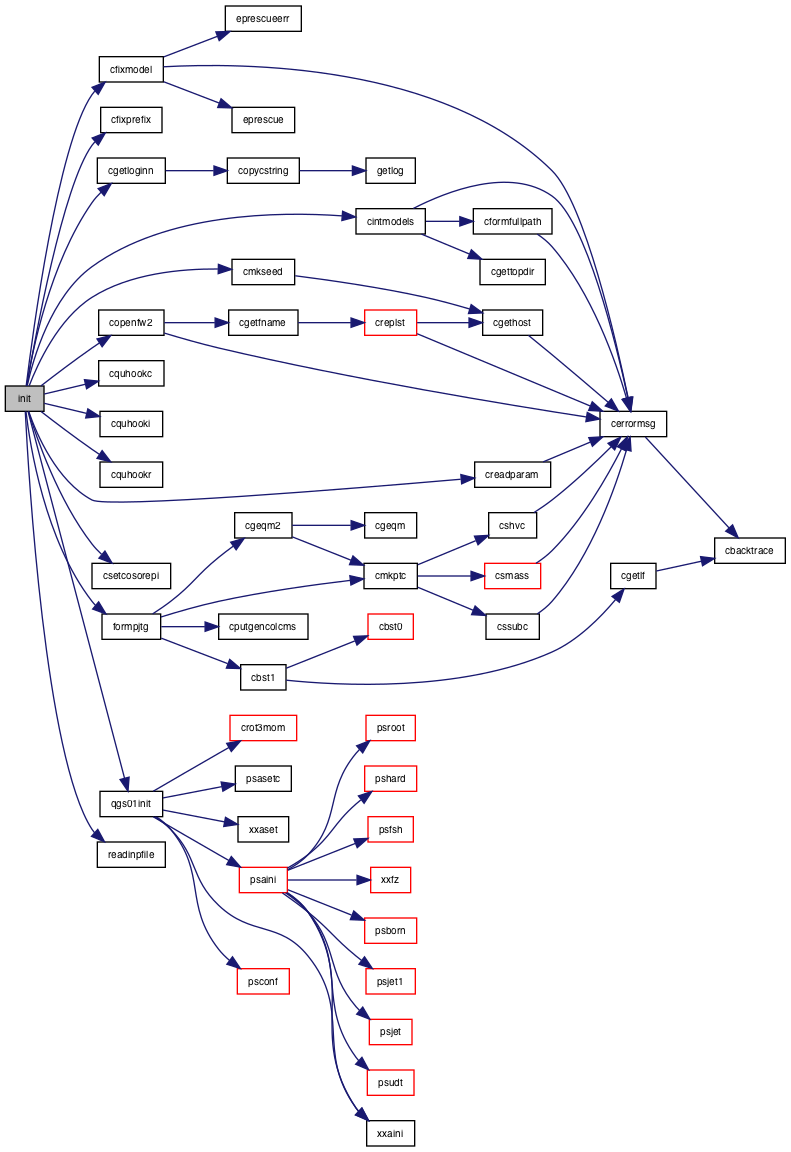

Here is the call graph for this function:

outresul()

subroutine outresul	(	type (ptcl), dimension(ntp)	a,
		integer	ntp
	)

Definition at line 254 of file Gencol3.f.

References a, cyeta(), and getdiffcode().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanagerp.h"
#include  "Zmanager.h"
#include  "Ztrackp.h"
      include  "Zprivate.h"
! general process information; only for dpmjet3
      INTEGER iproce,idnodf,idifr1,idifr2,iddpom,ipron
      COMMON /poprcs/ iproce,idnodf,idifr1,idifr2,iddpom,ipron(15,4)
!      IPROCE
!             1 non-diffractive inelastic
!             2 elestic
!             3 quasi elestic vector meson prod. (photon)
!             4 central diffraction
!             5 single diff. ptcl 1
!             6 //           ptcl 2
!             7 double diff.
!             8 direct photo-hadron
! For moore detail, see manual in Documents/CosmicRays/phojetShort.pdf
!               say, IDIFR1 classifies IPROCE=5

      integer ntp
      type(ptcl):: a(ntp)
      integer  i, j

      real*8  p, wx, wy, wz, pt, y, eta
      integer npzm, npzp, ncht, nchpzm, nchpzp
      integer nw, diffcode(20)
!//////////////
      integer icon
      type(ptcl):: pcms, pl
      type(fmom):: gc
!/////////////
      npzm = 0
      npzp = 0
      nchpzm = 0
      nchpzp = 0

      do j = 1, ntp
         i = indx(j)
!         pt = sqrt( a(i).fm.p(1)**2 + a(i).fm.p(2)**2)
!         p= sqrt( pt**2  +    a(i).fm.p(3)**2 )
         if( a(i)%fm%p(3) .gt. 0.) then
            npzp = npzp + 1
            if(a(i)%charge .ne. 0) then
               nchpzp = nchpzp +1
            endif
         else
            npzm = npzm + 1
            if(a(i)%charge .ne. 0) then
               nchpzm = nchpzm + 1
            endif
         endif
      enddo
      ncht = nchpzm + nchpzp
      call getdiffcode(nw, diffcode)
      write(*,'("h ",i3, 6i6)' )
     *   diffcode(1), ntp, npzm, npzp, ncht, nchpzm, nchpzp
!////////
!      call cgetcm(tg, plab, gc, icon)
!      write(0,*) ' gcbeta=', gc
!//////////////////

      do j = 1, ntp
         i = indx(j)
         pt = sqrt( a(i)%fm%p(1)**2 + a(i)%fm%p(2)**2)
!         p= sqrt( pt**2  +    a(i).fm.p(3)**2 )
!
!         wx = a(i).fm.p(1)/p
!         wy = a(i).fm.p(2)/p
!         wz = a(i).fm.p(3)/p
!         if(xyz .eq. 0) then
!            write(*,'(3i3,g14.5,3f17.13, i5)')
!     *        a(i).code, a(i).subcode, a(i).charge,
!     *        a(i).fm.p(4)-a(i).mass, wx, wy, wz, j
!         else
!            write(*,'(3i3,g14.5,1p3E11.3,0p3f17.13, i5)')
!     *        a(i).code, a(i).subcode, a(i).charge,
!     *        a(i).fm.p(4)-a(i).mass, xpos, ypos, zpos,
!     *        wx, wy, wz, j
!
!         endif
         call cyeta(a(i),  y, eta)
!/////////////
!         call clorez(gc, a(i), pl)
!         write(*,'(2i4, 1p, g13.4, 0p, f10.4, 1p,6g13.4)')
!     *   a(i).code,  a(i).charge,  pt,  eta, pl.fm.p(4)-pl.mass,
!     *     a(i).fm.p(1:4)
!//////////////////
         write(*,'(2i4, 1p, g13.4, 0p, f10.4,1p, g13.4)')
     *   a(i)%code,  a(i)%charge,  pt,  eta, a(i)%fm%p(4)
      enddo
      if(ntp .gt. 0 .or. outzero .eq. 0) then
         write(*, *)
      endif

Here is the call graph for this function:

outtrace()

subroutine outtrace	(	integer	nev,
		type (ptcl), dimension(ntp)	a,
		integer	ntp
	)

Definition at line 450 of file Gencol3.f.

References a, cerrormsg(), copenfw(), kseblk(), trackl, and xyz.

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"
#include  "Zevhnp.h"
#include  "Zevhnv.h"
#include  "Zmass.h"
#include  "Zmanagerp.h"
#include  "Zmanager.h"
#include  "Ztrackp.h"
      include  "Zprivate.h"

      integer ntp, nev
      type(ptcl):: a(ntp)
      integer  i, j, leng, icon, klena
      real*8  p, wx, wy, wz
      real  x1, y1, z1, x2, y2, z2
      character*100  tracefile

      write(tracefile, *) tracedir(1:klena(tracedir))//'/trace', nev
      call kseblk(tracefile, ' ', leng)
      call copenfw(tracedev, tracefile(1:leng), icon)
      if(icon .ne. 0) then
         call cerrormsg('tracefile could not be opened',0)
      endif
      do j = 1, ntp
         i = indx(j)
         p= sqrt( a(i)%fm%p(1)**2 + a(i)%fm%p(2)**2
     *        +      a(i)%fm%p(3)**2 )
         wx = a(i)%fm%p(1)/p
         wy = a(i)%fm%p(2)/p
         wz = a(i)%fm%p(3)/p
         if(xyz .eq. 0) then
            x1 = 0.
            y1 = 0.
            z1 = 0.
         else
            x1 = xpos
            y1 = ypos
            z1 = zpos
         endif
         x2 = x1 + wx*trackl
         y2 = y1 + wy*trackl
         z2 = z1 + wz*trackl
         write(tracedev,'(3g14.5, i3, g14.4, i3, i2)')
     *      x1, y1, z1,
     *      a(i)%code,  a(i)%fm%p(4) - a(i)%mass, a(i)%charge,
     *      0
         write(tracedev, '(3g14.5, i3, g14.4, i3, g14.4)' )
     *      x2, y2, z2,
     *      a(i)%code,  a(i)%fm%p(4) - a(i)%mass, a(i)%charge,
     *      trackl
         write(tracedev, *)
         write(tracedev, *)
      enddo
      close(tracedev)

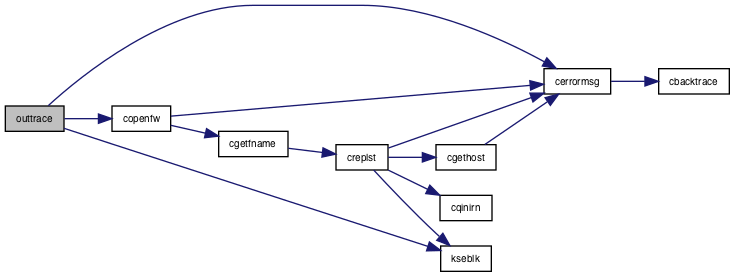

Here is the call graph for this function:

readinpfile()

subroutine readinpfile

(

integer

eof

)

Definition at line 170 of file Gencol3.f.

References inpfileno, pjcode, pjpx, pjpy, pjsub, tgcode, tgpx, tgpy, tgsub, and xyz.

      implicit none
#include "Zptcl.h"
      include "Zprivate.h"

      integer eof ! output . data read--> 0
                  !   eof reached --> 1
      read(inpfileno,*, end=100)
     *     pjcode, pjsub, pjchg, pjpx, pjpy, pjpz
      read(inpfileno,*, end=100)
     *     tgcode, tgsub, tgchg, tgpx, tgpy, tgpz
      if(xyz .gt. 0 ) then
         read(inpfileno,*, end=100) xpos, ypos, zpos
      endif
      eof = 0
      return
 100  continue
      eof = 1

sortbyke()

subroutine sortbyke	(	type (ptcl), dimension(*)	a,
		integer	ntp
	)

Definition at line 430 of file Gencol3.f.

References a, ke(), kqsortd(), and ksortinv().

      implicit none
#include  "Zptcl.h"
#include  "Zcode.h"

      include "Zprivate.h"
      integer  ntp
      type(ptcl)::  a(*)
!             projectile and target information (both befor
!             and after collision ) in different system.
!

      integer  i
      do i = 1, ntp
         ke(i) = a(i)%fm%p(4) - a(i)%mass
      enddo
      call kqsortd(ke, indx, ntp)
      call ksortinv(indx, ntp)
!       ke( indx(1) ) is the highest energy

Here is the call graph for this function:
