COSMOS v7.655  COSMOSv7655
(AirShowerMC)
ctotx.f File Reference

Go to the source code of this file.

Functions/Subroutines

subroutine ctotx (pj, A, xs)

subroutine ctotx0 (pj, A, xs)


Function/Subroutine Documentation

◆ ctotx()

subroutine ctotx ( type(ptcl pj,
real(8), intent(in)  A,
real(8), intent(out)  xs
)

Definition at line 4 of file ctotx.f.

References cmkptc(), ctotx0(), d0, false, knuc, masp, and p.

4  implicit none
5 #include "Zptcl.h"
6 #include "Zcode.h"
7 #include "Zmass.h"
8 #include "Zevhnp.h"
9  type(ptcl)::pj !input projectile particle
10  real(8),intent(in):: a ! input. effective target mass number
11  real(8),intent(out):: xs ! output. in mb. total xsection.
12 ! ctotx0 gives small Xs so we renormalize by
13 ! using cPDGsigmaTotpA(A) at @200 GeV
14  real(8):: cpdgsigmatotpa
15  type(ptcl):: proton
16  save proton
17  real(8),save:: xst
18  logical,save::first=.true.
19  real(8),save::asave=-1.
20  real(8),save::ratio
21
22
23  call ctotx0(pj, a, xs)
24  if( a /= 1.0d0 ) then
25  if(first) then
26  call cmkptc(knuc, -1, 1, proton)
27  proton.fm.p(4) = 200. + masp
28  first = .false.
29  endif
30  if( a /= asave ) then
31  call ctotx0(proton, a, xst)
32  ratio = cpdgsigmatotpa(a)/xst
33  asave = a
34  endif
35  xs = xs *ratio
36  endif
logical, save first
Definition: cNRLAtmos.f:8
block data cblkElemag data *AnihiE ! Eposi< 1 TeV, anihilation considered *X0/365.667/, ! radiation length of air in kg/m2 *Ecrit/81.e-3/, ! critical energy of air in GeV *MaxComptonE/1./, ! compton is considered below 1 GeV *MaxPhotoE/1.e-3/, ! above this, PhotoElectric effect neg. *MinPhotoProdE/153.e-3/, ! below 153 MeV, no gp --> hadrons ! scattering const not MeV *Knockon true
Definition: cblkElemag.h:7
! constants thru Cosmos real ! if multiplied to deg radian Torad ! light velocity m sec ! infinty ! kg m2 *Togpcm2 g cm2 ! g cm2 *Tokgpm2 kg m2 ! cm *Tom m ! m *Tocm cm ! g cm3 *Tokgpm3 kg m3 ! kg m3 *Togpcm3 g cm3 ! sec *Tonsec nsec ! Tesla m ! Avogadro *A2deninv ! mfp *n * xs
Definition: Zglobalc.h:18
********************block data cblkHeavy ********************integer j data *HeavyG2symbol p
Definition: cblkHeavy.h:7
block data cblkEvhnp ! currently usable models data RegMdls ad *special data *Cekaon d0
Definition: cblkEvhnp.h:5
********************block data cblkHeavy ********************integer j data *HeavyG2symbol *data *HeavyG2code knuc
Definition: cblkHeavy.h:7
real(4), save a
Definition: cNRLAtmos.f:20
block data cblkElemag data *AnihiE ! Eposi< 1 TeV, anihilation considered *X0/365.667/, ! radiation length of air in kg/m2 *Ecrit/81.e-3/, ! critical energy of air in GeV *MaxComptonE/1./, ! compton is considered below 1 GeV *MaxPhotoE/1.e-3/, ! above this, PhotoElectric effect neg. *MinPhotoProdE/153.e-3/, ! below 153 MeV, no gp --> hadrons ! scattering const not MeV *Knockon ! knockon is considered Obsolete *PhotoProd false
Definition: cblkElemag.h:7
subroutine cmkptc(code, subcode, charge, p)
Definition: cmkptc.f:15
masp
Definition: Zmass.h:5
Definition: Zptcl.h:75
subroutine ctotx0(pj, A, Z, xs)
Definition: ctotx.f:66

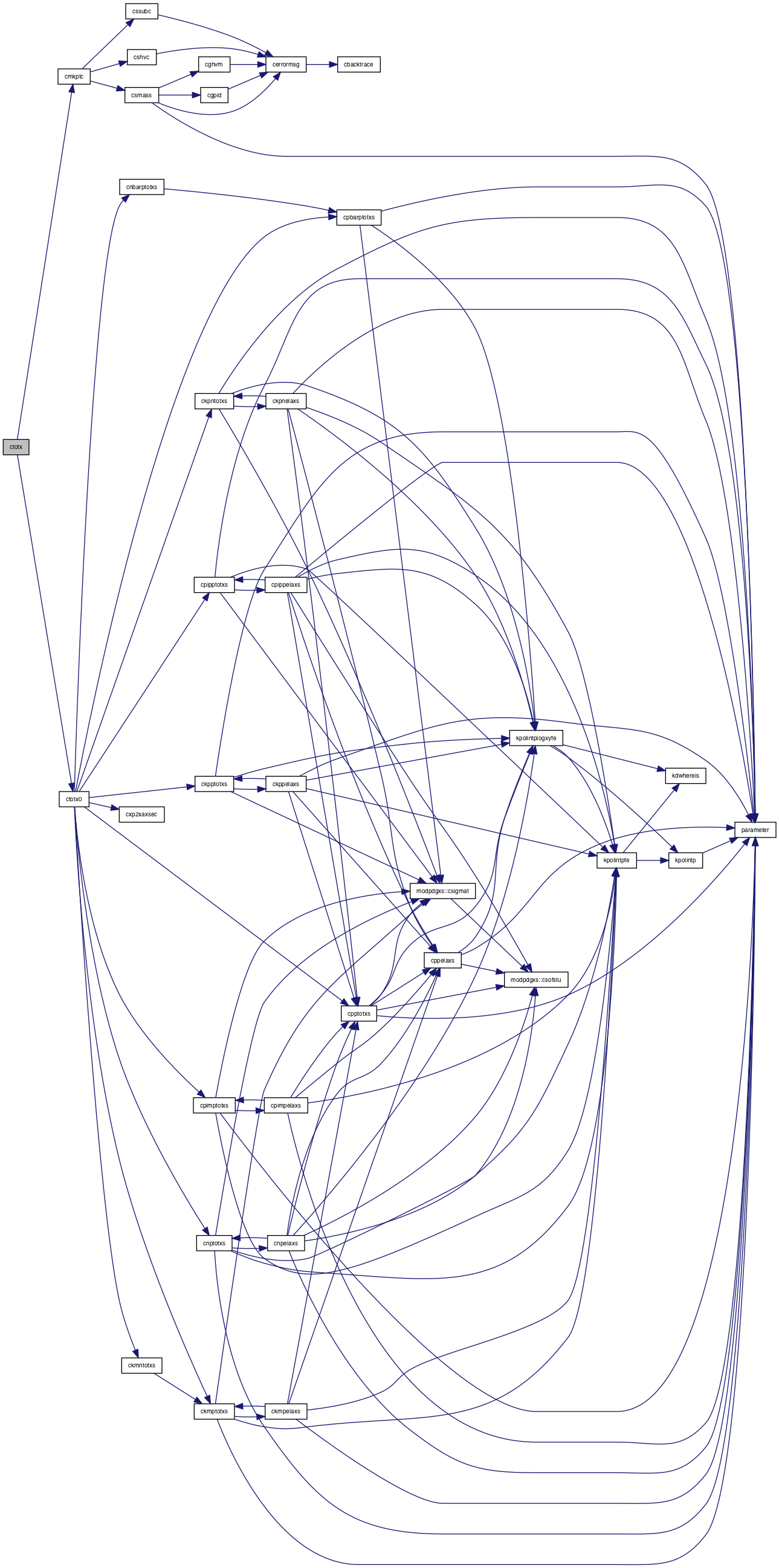

Here is the call graph for this function:

◆ ctotx0()

subroutine ctotx0 ( type(ptcl pj,
real*8  A,
real*8  xs
)

Definition at line 40 of file ctotx.f.

References antip, charge, ckmntotxs(), ckmptotxs(), ckpntotxs(), ckpptotxs(), cnbarptotxs(), cnptotxs(), code, cpbarptotxs(), cpimptotxs(), cpipptotxs(), cpptotxs(), cxp2xaxsec(), kbomega, kelec, kgnuc, kgzai, kkaon, klambda, klambdac, knuc, kpion, ksigma, mass, and subcode.

40  implicit none
41 #include "Zptcl.h"
42 #include "Zcode.h"
43 #include "Zevhnp.h"
44  type(ptcl)::pj !input projectile particle
45  real*8 a ! input. effective target mass number
46  real*8 xs ! output. in mb. total xsection.
47
48  real*8 p
49
50  real(8)::shp, shn
51  if( pj.fm.p(4) .le. pj.mass) then
52  if(pj.code .eq. knuc .and. pj.subcode .eq. antip) then
53  xs = largexs
54  elseif(pj.code .eq. kelec .and. pj.charge .eq. 1) then
55  xs = largexs
56  else
57  xs = smallxs
58  endif
59  else
60  p = sqrt(pj.fm.p(4)**2 - pj.mass**2)
61 ! p = max(p, 0.1d0)
62 ! if( p .ge. 20.) then
63 ! call cerrorMsg('Momentum is >20 GeV/c for ctotx',0)
64 ! endif
65
66  if(pj.code .eq. knuc) then
67  if(pj.charge .eq. 1) then
68 ! proton
69 ! shp = ctotpp1(p)
70  call cpptotxs(p, shp)
71
72  if(a .gt. 1.) then
73  call cnptotxs(p, shn)
74 ! use average of pp,pn
75 ! shp =( ctotpn1(p) + shp)/2.0
76  shp = (shp + shn)/2.0
77  call cxp2xaxsec(a, shp, xs)
78  else
79  xs = shp
80  endif
81  elseif(pj.charge .eq. -1) then
82 ! pbar
83 ! shp = ctotpbarp1(p)
84  call cpbarptotxs(p, shp)
85  if( a .gt. 1.) then
86 ! shp = (shp + ctotpbarn1(p))/2.0
87  call cnbarptotxs(p, shn)
88  shp = (shp + shn)/2.
89  call cxp2xaxsec(a, shp, xs)
90  else
91  xs = shp
92  endif
93  elseif(pj.subcode .eq. antip) then
94 ! anti-neutron; assume the same one as pbar
95 ! shp = ctotpbarp1(p)
96  call cnbarptotxs(p, shp)
97  if( a .gt. 1.) then
98  call cxp2xaxsec(a, shp, xs)
99  else
100  xs = shp
101  endif
102  else
103 ! neutron
104 ! shp = ctotnp1(p)
105  call cnptotxs(p, shp)
106  if(a .gt. 1.) then
107  call cxp2xaxsec(a, shp, xs)
108  else
109  xs = shp
110  endif
111  endif
112  elseif(pj.code .eq. kpion) then
113  if(pj.charge .eq. 1) then
114 ! shp = ctotpiPp1(p)
115  call cpipptotxs(p, shp)
116  elseif(pj.charge .eq. -1) then
117 ! shp = ctotpiMp1(p)
118  call cpimptotxs(p, shp)
119  else
120 ! at low energy, pi0 would not interact. any would be o.k
121 ! shp = ctotpiMp1(p)
122  call cpimptotxs(p, shp)
123  endif
124  if(a .ne. 1.0) then
125  call cxp2xaxsec(a, shp, xs)
126  else
127  xs = shp
128  endif
129  elseif(pj.code .eq. kkaon) then
130  if(pj.charge .eq. 1) then
131 ! shp = ctotkPp1(p)
132  call ckpptotxs(p, shp)
133  if(a .gt. 1.) then
134  call ckpntotxs(p, shn)
135  shp = (shp + shn)/2.0
136  call cxp2xaxsec(a, shp, xs)
137  else
138  xs = shp
139  endif
140  elseif(pj.charge .eq. -1) then
141 ! shp = ctotkMp1(p)
142  call ckmptotxs(p, shp)
143  if(a .gt. 1.) then
144  call ckmntotxs(p, shn)
145  shp = (shp + shn)/2.
146  call cxp2xaxsec(a, shp, xs)
147  else
148  xs = shp
149  endif
150  else
151 ! k0; don't worry so much
152 ! xs =( ctotkMp1(p) +ctotkPp1(p))/2.0
153  call ckmptotxs(p, shp)
154  call ckmntotxs(p, shn)
155  shp = (shp+ shn)/2.
156  if(a .gt. 1.) then
157  call cxp2xaxsec(a, shp, xs)
158  else
159  xs = shp
160  endif
161  endif
162  elseif(pj.code .eq. kgzai .or. pj.code .eq. ksigma .or.
163  * pj.code .eq. kbomega .or. pj.code .eq. klambda .or.
164  * pj.code .eq. klambdac) then
165 ! don't worry, not used almost at all; use proton
166 ! shp = ctotpp1(p)
167  call cpptotxs(p, shp)
168  call cxp2xaxsec(a, shp, xs)
169  elseif( pj.code == kgnuc ) then
170  write(0,*) 'Sorry: ctotx is not usable for heavy ions'
171  write(0,*) ' only inelastic xs is used for heavy ions'
172  write(0,*) ' so that you may use cinela or cAAXsec2'
173  stop
174  else
175 ! use pion
176 ! shp =ctotpiPp1(p)
177  call cpipptotxs(p, shp)
178  call cxp2xaxsec(a, shp, xs)
179  endif
180  endif
max ptcl codes in the kgzai
Definition: Zcode.h:2
subroutine cpbarptotxs(p, xs)
Definition: cpbarpTotXs.f:9
subroutine cpptotxs(p, xs)
Definition: cppTotXs.f:3
max ptcl codes in the kgnuc
Definition: Zcode.h:2
subroutine cnptotxs(p, xs)
Definition: cnpTotXs.f:3
max ptcl codes in the klambdac
Definition: Zcode.h:2
subroutine ckpptotxs(p, xs)
Definition: ckppTotXs.f:3
max ptcl codes in the kkaon
Definition: Zcode.h:2
max ptcl codes in the kelec
Definition: Zcode.h:2
subroutine cxp2xaxsec(a, xsxp, xsxa)
Definition: cxp2xAXsec.f:30
subroutine ckpntotxs(p, xs)
Definition: ckpnTotXs.f:3
! constants thru Cosmos real ! if multiplied to deg radian Torad ! light velocity m sec ! infinty ! kg m2 *Togpcm2 g cm2 ! g cm2 *Tokgpm2 kg m2 ! cm *Tom m ! m *Tocm cm ! g cm3 *Tokgpm3 kg m3 ! kg m3 *Togpcm3 g cm3 ! sec *Tonsec nsec ! Tesla m ! Avogadro *A2deninv ! mfp *n * xs
Definition: Zglobalc.h:18
********************block data cblkHeavy ********************integer j data *HeavyG2symbol p
Definition: cblkHeavy.h:7
*Zfirst p fm *Zfirst p Zfirst p code
Definition: ZavoidUnionMap.h:1
subroutine ckmptotxs(p, xs)
Definition: ckmpTotXs.f:3
max ptcl codes in the klambda
Definition: Zcode.h:2
********************block data cblkHeavy ********************integer j data *HeavyG2symbol *data *HeavyG2code knuc
Definition: cblkHeavy.h:7
subroutine ckmntotxs(p, xs)
Definition: ckmnTotXs.f:2
subroutine cpipptotxs(p, xs)
Definition: cpippTotXs.f:3
*Zfirst p fm *Zfirst p Zfirst p Zfirst p *Zfirst p charge
Definition: ZavoidUnionMap.h:1
real(4), save a
Definition: cNRLAtmos.f:20
Definition: Zptcl.h:75
max ptcl codes in the kseethru ! subcode integer antip
Definition: Zcode.h:2
*Zfirst p fm *Zfirst p mass
Definition: ZavoidUnionMap.h:1
max ptcl codes in the kpion
Definition: Zcode.h:2
max ptcl codes in the ksigma
Definition: Zcode.h:2
max ptcl codes in the kbomega
Definition: Zcode.h:2
subroutine cpimptotxs(p, xs)
Definition: cpimpTotXs.f:3
*Zfirst p fm *Zfirst p Zfirst p Zfirst p subcode
Definition: ZavoidUnionMap.h:1
subroutine cnbarptotxs(p, xs)
Definition: cnbarpTotXs.f:3

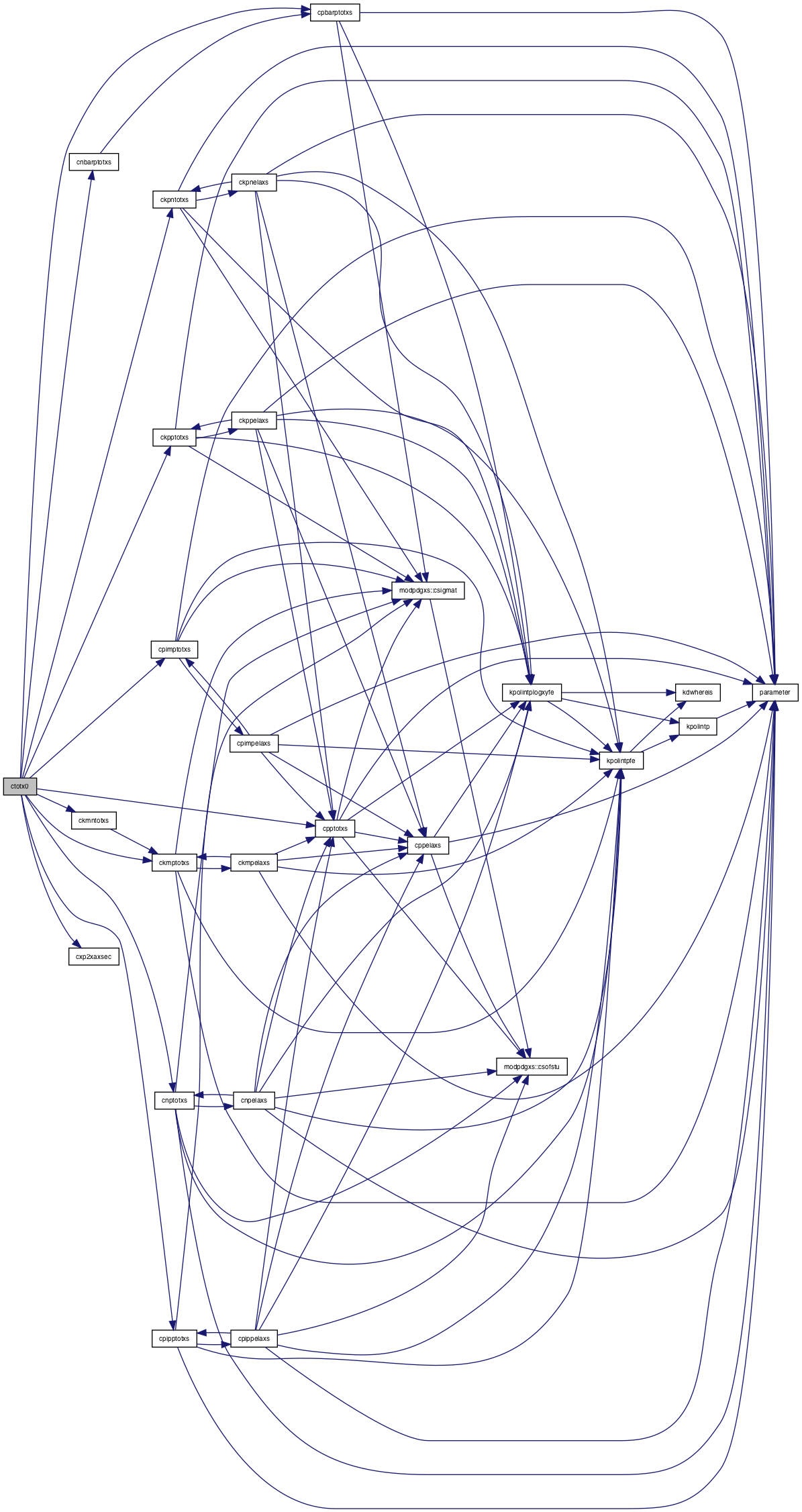

Here is the call graph for this function:
