chookFlesh.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	chookbgrun
subroutine	chookbgevent
subroutine	cbegin1ev (nomore)
subroutine	chookobs (aTrack, id)
subroutine	chookenevent
subroutine	chookenrun
subroutine	chooktrace
subroutine	chookeint (never)
subroutine	chookgint (never)
subroutine	chooknepint (never)
subroutine	cgethes (from)
subroutine	cobshes
subroutine	c1by1
subroutine	embedas
subroutine	cmove_c_stack

Function/Subroutine Documentation

c1by1()

subroutine c1by1

(

)

Definition at line 372 of file chookFlesh.f.

References asflag, c, cinitstack(), cmove_c_stack(), embedas(), false, p, and true.

      implicit none
#include "Zprivate.h"
#include "Ztrack.h"
#include "Ztrackv.h"

      character*100 msg

      call cinitstack  ! empty the stack

      if( topofnode ) then
         read(mdev)  nooflowe,  p
         if( p.asflag .eq. -1 .and. observeas
     *      .and. howflesh .ne. 0 )  then
            call embedas
         endif
         nlowcounter = 0
         if( nooflowe .eq. -1 ) then
            realend = .true.
            realbegin = .true.
            return    ! ************
         endif
      endif

      realbegin = .false.
      realend = .false.


      if( nlowcounter .eq. nooflowe ) then
         topofnode =.true.
         return   ! **************
      endif

      topofnode = .false.
!         still not the  end of 1 event

      read(mdev)  c

      nlowcounter = nlowcounter + 1
      call cmove_c_stack   ! move c into stack

Here is the call graph for this function:

cbegin1ev()

subroutine cbegin1ev

(

integer

nomore

)

Definition at line 74 of file chookFlesh.f.

References cgethes(), charge, cinitracking(), cmkincident(), cobshes(), code, cqincident(), cresettimer(), e, false, p, r, subcode, and x.

      implicit none
#include "Zprivate.h"
#include "Ztrack.h"
#include "Ztrackv.h"
#include "Ztrackp.h"
#include "Zobs.h"
#include "Zobsp.h"
#include "Zobsv.h"
#include "Zcode.h"
#include "Zmanager.h"
#include "Zmanagerp.h"

      integer nomore       !  output. 0 still there  are showers
                           !          1 no more skeleton showers to be fleshed
!          event number, primary

      type(track)::incident
      type(track)::zsave
      type(coord)::angle

      integer i
      integer seed(2)
      integer cumnum, num, jeof, fin
      read( mdev, end=1000 ) cumnum, num, seedsave, zfirst

      eventsintherun = eventsintherun + 1
      eventno = eventno + 1
!          get random seed at skelton making; this can work
!          if seed file is supplied
!      call creadSeed(SeedSave, EventNo, jeof)
!      if( jeof .ne. 0 ) goto 1000

!                 reset the seed.
      call rnd1r(seedsave)

!         next incident; confirmed to be the same one as preserved one
      call cmkincident(incident, fin)

      if(fin .ne. 0 ) goto 1000
      zsave = zfirst    ! save;  this is reset in next
      call cinitracking( incident )
!          set first interaction pos
      zfirst = zsave
      call cresettimer(zfirst)

      realbegin = .false.

!          do your own init for a one event here
!      ==========================================================
         call cqincident( incident, angle)
      write(*,999)
     *    eventno,
     *    incident.p.code,
     *    incident.p.subcode,
     *    incident.p.charge,
     *    incident.p.fm.e,
     *    -angle.r(1),
     *    -angle.r(2),
     *    -angle.r(3)
 999      format(i9,3i4,e15.5,3(1x,f12.8))


!      ==========================================================
!

      call cgethes(mdev)  ! get high energy ptlcs
      call cobshes        ! imitate their observation
      nomore = 0
      return

 1000 continue
      nomore = 1

Here is the call graph for this function:

cgethes()

subroutine cgethes

(

integer

from

)

Definition at line 327 of file chookFlesh.f.

References o.

      implicit none
#include "Zprivate.h"
      integer from

      integer i

      read(from)  np
      do i = 1, np
         read(from) o(i)
      enddo

chookbgevent()

subroutine chookbgevent

(

)

Definition at line 56 of file chookFlesh.f.

References c1by1(), cbegin1ev(), cerrormsg(), and true.

      implicit none
#include "Zprivate.h"


      integer nomore
      if( realbegin ) then
         call cbegin1ev( nomore )
         if( nomore .eq. 1) then
            call cerrormsg('all events are fleshed', 1)
            stop  !!!!!!!!!!!!
         endif
         topofnode = .true.
      endif
      call c1by1

Here is the call graph for this function:

chookbgrun()

subroutine chookbgrun

(

)

Definition at line 11 of file chookFlesh.f.

References cgetfname(), cprintobs(), cprintprim(), cquhookc(), cquhooki(), cwriteparam(), and true.

      implicit none
#include "Zmanagerp.h"
#include "Zprivate.h"

      real*8  temp
      character*100 msg
      integer klena
      integer i
!     ==================================================

      integer seed(2)
!     ==================================================

      eventno = 0
      realbegin = .true.
      topofnode = .true.

!            namelist output
      call cwriteparam(errorout, 0)
!            primary information
      call cprintprim(errorout)
!            observation level information
      call cprintobs(errorout)

      call cquhooki(1, mdev)      ! get skeleton memo dev #
      call cquhooki(6, howflesh)  ! how to flesh. non zero-->orthodox
      call cquhookc(1, msg)       ! get file name for sekelton memo
      call cgetfname(msg, mskel)  ! add host name etc if needed

!      do i = 1, NoOfSites
!         write(*, *) ' depth ',
!     *    sngl(ObsSites(i).pos.depth/10.)
!      enddo

      open(mdev, file=mskel(1:klena(mskel)), form='unformatted',
     *  status='old' )

Here is the call graph for this function:

chookeint()

subroutine chookeint

(

integer

never

)

Definition at line 302 of file chookFlesh.f.

      implicit none
      integer never             ! input & output
      never = 1

chookenevent()

subroutine chookenevent

(

)

Definition at line 211 of file chookFlesh.f.

References cfintracking().

      implicit none
#include "Zprivate.h"
#include "Ztrack.h"
#include "Ztrackv.h"
#include "Zobs.h"
#include "Zobsp.h"
#include "Zobsv.h"

      integer i

      if(realend) then
         call cfintracking
!           real end of 1 event; if you need to do some here is
!           the place
!         ========================================================

         if(observeas) then
!                   electron size in B approx.
            do i = 1, noofassites
               write(*, *) asobssites(i).age, asobssites(i).esize
            enddo
         endif



!        ========================================================
!
      else
!           there is still low energy skeleton ptcls
!           nothing to do here
      endif

Here is the call graph for this function:

chookenrun()

subroutine chookenrun

(

)

Definition at line 251 of file chookFlesh.f.

References cprintstatus().

      implicit none
#include "Zprivate.h"
!     =========================================================

!     =========================================================
      call  cprintstatus   ! if don't like,  comment out

Here is the call graph for this function:

chookgint()

subroutine chookgint

(

integer

never

)

Definition at line 311 of file chookFlesh.f.

      implicit none
      integer never   ! input & output
      never = 1

chooknepint()

subroutine chooknepint

(

integer

never

)

Definition at line 320 of file chookFlesh.f.

      implicit none
      integer never   ! input & output
      never = 1

chookobs()

subroutine chookobs	(	type(track)	aTrack,
		integer	id
	)

Definition at line 153 of file chookFlesh.f.

References code, kneue, kneumu, and p.

!
!     Note that every real variable is in double  precision so
!     that you may output it in sigle precision to save the memory.
!     In some cases it is essential to put it in sigle (say,
!     for gnuplot).
!
      implicit none
#include "Zcode.h"
#include "Ztrack.h"
#include "Zprivate.h"
      integer id  ! input.  2 ==> reached at an observation level
!                           1 ==> aTrack is going out from
!                                 outer boundery.
!                           2 ==> reached at an observation level
!                           3 ==> reached at inner boundery.
      type(track)::atrack
!
!     For id =2, you need not output the z value, because it is always
!     0 (within the computational accuracy).
!
      if(id .eq. 2 .and. atrack.p.code .ne. kneumu .and.
     *   atrack.p.code .ne. kneue) then

!     ===================================================

       if( atrack.p.code .le. 6 .and. atrack.p.code .ne. 3 ) then
!         write(*, 959)
!     *  aTrack.where,
!     *  aTrack.p.code,
!     *  aTrack.p.charge,
!     *  sngl( aTrack.p.fm.p(4) - aTrack.p.mass ),
!     *  sngl( aTrack.pos.xyz.r(1) ),
!     *  sngl( aTrack.pos.xyz.r(2) ) ,
!     *  sngl( aTrack.vec.w.r(1) ),
!     *  sngl( aTrack.vec.w.r(2) ),
!     *  sngl( aTrack.vec.w.r(3) ),
!     *  sngl( aTrack.vec.coszenith )
! 959      format(3i3,f12.3,2f16.6,4(1x,f12.8))
      endif

!     ===================================================

!         write(*,'(4i5, g15.4,g15.3)')
!     *   aTrack.where, aTrack.p.code, aTrack.p.subcode,
!     *   aTrack.p.charge, sngl( aTrack.t ),
!     *   sngl( aTrack.p.fm.p(4) - aTrack.p.mass)
!     *   sngl( aTrack.pos.xyz.r(1) ), sngl( aTrack.pos.xyz.r(2) ),
!     *   sngl( aTrack.vec.w.r(1) ), sngl(aTrack.vec.w.r(2) ),
!     *   sngl(aTrack.vec.w.r(3) ),
!     *   sngl(aTrack.vec.coszenith)

      endif

chooktrace()

subroutine chooktrace

(

)

Definition at line 267 of file chookFlesh.f.

References height.

            implicit none

#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"
#include  "Zobs.h"
#include  "Zobsv.h"

       real*4 h1,  h2
!
!    Every time a particle is moved in the atmosphere, this routine is called,
!    if trace > 100
!         For a one track segment,
!     TrackBefMove  has  track information at the beginning of the segment.
!     MoveTrack    has   track information at the end of the segment.
!
!     You can know the  information a track contains in the
!     chookObs routine. (Note however, no conversion of coordinate
!     has been done.  The values are in the Earth xyz system.)
!     Besides quantities explained there, you can use, for a  given 'track'
!
!     atrack.pos.xyz.x, atrack.pos.xyz.y, atrack.pos.xyz.z    (x,y.z)
!     atrack.pos.radiallen   (distance from the center of the earth)
!     atrack.pos.depth       (vertical depth)
!     atrack.pos.height      (vertical heigth from sea level)
!

      h1 = trackbefmove.pos.height- obssites(noofsites).pos.height
      h2 = movedtrack.pos.height - obssites(noofsites).pos.height

cmove_c_stack()

subroutine cmove_c_stack

(

)

Definition at line 435 of file chookFlesh.f.

References asflag, c, charge, code, colheight, cpush(), cresetdirec(), depth, height, mass, p, r, radiallen, subcode, sys, t, wgt, and xyz.

      implicit none

#include "Zprivate.h"
#include "Ztrack.h"
#include "Zearth.h"

      type(track)::atrack
!
!          a child of the current parent is moved to stack
!      as a track info.
!
      atrack.pos.xyz.r(1) = p.posx
      atrack.pos.xyz.r(2) = p.posy
      atrack.pos.xyz.r(3) = p.posz
      atrack.pos.depth = p.depth
      atrack.pos.height = p.height
      atrack.pos.colheight = p.colheight
      atrack.t = p.atime

      atrack.where = p.where

      atrack.p.code = c.code
      atrack.p.subcode = c.subcode
      atrack.p.charge  = c.charge
      atrack.p.fm.p(1) = c.fm(1)
      atrack.p.fm.p(2) = c.fm(2)
      atrack.p.fm.p(3) = c.fm(3)
      atrack.p.fm.p(4) = c.fm(4)
      atrack.p.mass = c.mass

!        --------------- next must be compute here

      atrack.pos.radiallen = eradius +atrack.pos.height
      atrack.pos.xyz.sys = 'xyz'
      atrack.vec.w.sys = 'xyz'
      atrack.wgt = 1.0
      if(p.asflag .ne. 0 .and. howflesh .ne. 0 ) then
!           asflag=   -1 or -2 may happen
         atrack.asflag = 1
      else
!           parent is made to be unconceivable, so
!           don't put flag for AS generation
         atrack.asflag =  0
      endif




      call cresetdirec( atrack )    ! set vec.w and coszenith

      call cpush(atrack)

Here is the call graph for this function:

cobshes()

subroutine cobshes

(

)

Definition at line 340 of file chookFlesh.f.

References charge, chookobs(), code, coszenith, erg, mass, o, p, r, subcode, t, x, xyz, and y.

      implicit none
#include "Zprivate.h"
#include "Ztrack.h"
!
!           memorized high energy showers at the skeleton making
!     time is put into the chookObs as if they are really observed
      type(track)::atrack

      integer i

      do i = 1, np
         atrack.where =  o(i).where
         atrack.p.code =  o(i).code
         atrack.p.subcode = o(i).subcode
         atrack.p.charge = o(i).charge
         atrack.t = o(i).atime
         atrack.p.fm.p(4) = o(i).erg
         atrack.p.mass = o(i).mass
         atrack.pos.xyz.r(1) = o(i).x
         atrack.pos.xyz.r(2) = o(i).y
         atrack.vec.w.r(1) = o(i).wx
         atrack.vec.w.r(2) = o(i).wy
         atrack.vec.w.r(3) = o(i).wz
         atrack.vec.coszenith = o(i).zenith
         call chookobs(atrack, 2)
      enddo

Here is the call graph for this function:

embedas()

subroutine embedas

(

)

Definition at line 415 of file chookFlesh.f.

References cobas(), coszenith, depth, erg, height, p, radiallen, and wgt.

      implicit none
#include "Zprivate.h"
#include "Ztrack.h"
#include "Zearth.h"

      type(track)::el

      el.pos.depth = p.depth
      el.vec.coszenith = p.coszenith
      el.pos.radiallen = p.height + eradius
      el.pos.height = p.height
      el.p.fm.p(4) = p.erg
      el.wgt = 1.0
      call cobas(el)

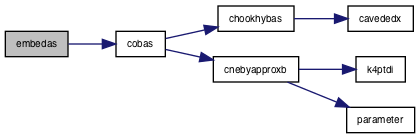

Here is the call graph for this function:
