chookSkel.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	chookbgrun
subroutine	chookbgevent
subroutine	chookobs (aTrack, id)
subroutine	chookenevent
subroutine	chookenrun
subroutine	chooktrace
subroutine	chookeint (never)
subroutine	chookgint (never)
subroutine	chooknepint (never)
subroutine	cmemonode (dev, flag)
subroutine	cmemorize (from, to)
subroutine	cputhes (to)
subroutine	cputnodinfo (from, to)

Function/Subroutine Documentation

chookbgevent()

subroutine chookbgevent

(

)

Definition at line 114 of file chookSkel.f.

References charge, code, cqincident(), csetemin(), depth, e, kgnuc, p, r, subcode, and x.

      implicit none
#include "Zprivate.h"
#include "Ztrack.h"
#include "Ztrackv.h"
#include "Ztrackp.h"
#include "Zobs.h"
#include "Zobsp.h"
#include "Zobsv.h"
#include "Zcode.h"



      type(track)::incident
      type(coord)::angle


      integer  eventno
      integer i, j
      integer seed(2)
      real*8 sveaswait, svethin(4), kepn


      np = 0
      call cqincident( incident, angle)
      kepn = incident.p.fm.p(4)
      if( incident.p.code .eq. kgnuc ) then
         kepn = kepn/ incident.p.subcode
      endif
      ethresh = kepn * waitratio

      sveaswait = easwait       ! for safety save
      svethin(1) = ethin(1)           ! //
      svethin(2) = ethin(2)           ! //
      svethin(3) = ethin(3)           ! //
      svethin(4) = ethin(4)           ! //
      call csetemin(generate2, keminobs2(1), cutneg, cuteg)
      easwait = sveaswait       ! restore
      ethin(1) = svethin(1)
      ethin(2) = svethin(2)
      ethin(3) = svethin(3)
      ethin(4) = svethin(4)

      rewind  wdev

!     ===================================================

      eventno = eventno + 1
      do i = 1, noofsites
         write(*, 1000)
     *    sngl(obssites(i).pos.depth),
     *    eventno,
     *    incident.p.code,
     *    incident.p.subcode,
     *    incident.p.charge,
     *    incident.p.fm.e,
     *    -angle.r(1),
     *    -angle.r(2),
     *    -angle.r(3)
 1000       format(f10.3,i9,3i4,e15.5,3(1x,f12.8))
      enddo


!     ===================================================

Here is the call graph for this function:

chookbgrun()

subroutine chookbgrun

(

)

Definition at line 14 of file chookSkel.f.

References cerrormsg(), cgetfname(), cprintobs(), cprintprim(), cquhookc(), cquhooki(), cquhookr(), cwriteparam(), mpirank, true, and where.

      implicit none
#include "Zmaxdef.h"
#include "Zmanagerp.h"
#include "Zprivate.h"
#include "Ztrack.h"
! #include "mpif.h"
! #include "Zmpi.h"
#if defined (DOMPI)
#include "mpif.h"
#include "Zmpi.h"
      real*8 etime1
      etime1 = mpi_wtime()
      write(0,*) 'rank=',mpirank, ' time start=',etime1
#else
      integer::mpirank=-1
#endif
      character*10  append
      character*100 msg
      logical  ex, opn
      integer klena
      if(mpirank .le. 0) then
!            namelist output
         call cwriteparam(errorout, 0)
!            primary information
         call cprintprim(errorout)
!            observation level information
         call cprintobs(errorout)
      endif



      call cquhooki(1, mdev)      ! get skeleton memo dev #
      call cquhooki(2, wdev)      ! get working disk dev #


      call cquhooki(3, ngmin)     ! get Nh min
      call cquhooki(4, nhmin)     ! get Ng min
      call cquhooki(5, where)     ! where to check

      call cquhookr(1, sumegmin)      ! sum E min
      call cquhookr(2, sumehmin)



      call cquhookc(1, msg)       ! get file name for sekelton memo
      call cgetfname(msg, mskel)  ! add host name etc if needed
      call cquhookc(2, msg)       ! get file name for working
      call cgetfname(msg, wskel)  ! add host name etc if neededn
      call cquhookc(3, append)    ! append data, if Mskel already exists

      write(msg, *) 'Skeleton is  judged at obs.pos=', Where
      call cerrormsg(msg, 1)
      write(msg, *) ' Ngmin=',ngmin,
     *     ' SumEGmin=',sumegmin/1000.,'TeV'
      call cerrormsg(msg, 1)
      write(msg, *) ' Nhmin=',nhmin,
     *    ' SumEHmin=',sumehmin/1000.,'TeV'
      call cerrormsg(msg, 1)

!
      inquire(file=mskel(1:klena(mskel)), opened=opn, exist=ex)
      if(opn) then
         call cerrormsg(mskel, 1)
         call cerrormsg(' already opened: starange', 0)
      elseif(ex .and.
     *      append(1:klena(append)) .eq. 'append' ) then
         open(mdev, file=mskel, form='unformatted',status='old')
         call cerrormsg('skeleton node info. will be appended', 1)
!           skip to the end of file
         do while( .true. )
            read(mdev, end=100)
         enddo
      else
         if(ex .and.
     *      append(1:klena(append)) .ne. 'append' ) then
            call cerrormsg(
     *           'Old skeleton node info. file exists', 1)
            call cerrormsg(
     *           'but node info. will NOT be appended', 1)
         endif
         open(mdev, file=mskel(1:klena(mskel)), form='unformatted',
     *       status='unknown')
      endif

 100  continue

      open(wdev, file=wskel(1:klena(wskel)), form='unformatted',
     *      status='unknown' )

      accepted = 0   ! counter;  accepted as skeleton
!

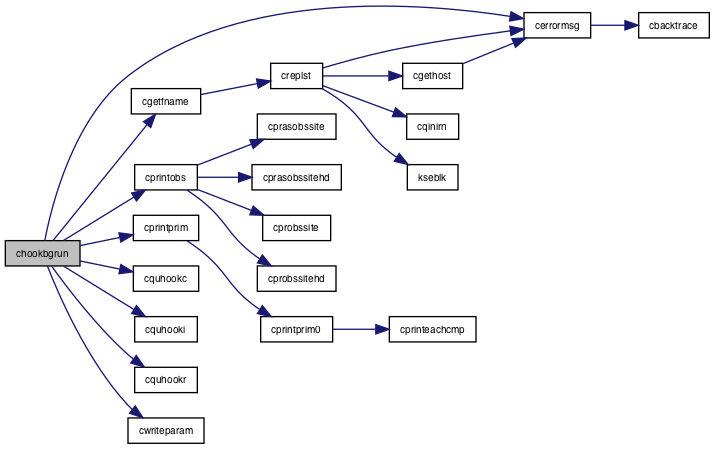

Here is the call graph for this function:

chookeint()

subroutine chookeint

(

integer

never

)

Definition at line 382 of file chookSkel.f.

References asflag, cmemonode(), code, kelec, and p.

      implicit none
#include  "Zprivate.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Zcode.h"
!  #include  "Ztrackp.h"
      integer never             ! input & output
      integer nlow
!
!    If Job = 'newskel', input  "never" may be < 0,  and MovedTrack
!    may not be an electron.
!      never = -1 :  MovedTrack K.E becomes < KEminObs due to
!                    energy loss during traveling.
!      never = -2 :  The same as above, but the particle crosses an
!                    observation depth, so the calling point to this
!                    routine is different from the never = -1 case.
!      never = -3 :  K.E >= KEminiObs.  The ptcl is observed at the
!                    current deepest Obs. level. but at the flesh time
!                    the deepest level will be more deep so that
!                    this must be memorized.
!
!         For above cases, the product is only MovedTrack and
!         no particle is in PWork.
!  Otherwise,
!   MovedTrack is the electron that made interaction
!   Pwork contains produced particles (normally gamma, but mayb  e).
!   Nproduced has the number of particles in Pwork (normally 1)
!   IntInfArray(ProcessNo) contains the type of interaction
!        IntInfArray(ProcessNo).process will have one of
!       'brems', 'mscat', 'bscat'  'anihi' or 'mbrem'
!
      if(never .lt. 0) then
         nproduced = 1
!           IBM user must modify next
         pwork(1) = movedtrack.p
      endif

!         high energy parent at node might be used
!        for hybrid AS generation if it is in some
!        energy region.
      if( movedtrack.p.code .eq. kelec ) then
         if( movedtrack.asflag .eq. 0 ) then
            if( movedtrack.p.fm.p(4) .lt. ethresh ) then
               movedtrack.asflag = -1
            endif
         endif
      endif

      call cmemonode(wdev, never)
      if(movedtrack.asflag .eq. -1) then
!          decendent should not be used to  generae A.S
         movedtrack.asflag  = -2
      endif

 10   continue
      never = 0

Here is the call graph for this function:

chookenevent()

subroutine chookenevent

(

)

Definition at line 257 of file chookSkel.f.

References cmemorize(), code, erg, kelec, kgnuc, knuc, kpion, o, p, and where.

      implicit none
#include "Ztrack.h"
#include "Zcode.h"
#include "Ztrackv.h"
#include "Zobs.h"
#include "Zobsp.h"
#include "Zobsv.h"
#include "Zmanagerp.h"
#include "Zprivate.h"

      integer i
      integer seed(2)
      real  sumeg, sumeh
      logical memorize

      integer ng, nh

      ng = 0
      nh = 0

      sumeg = 0
      sumeh =0
!         count sum Eg etc
      do i = 1, np
         if(o(i).where .eq. where) then
            if(o(i).code .le. kelec) then
               ng = ng + 1
               sumeg = sumeg + o(i).erg
            elseif( ( o(i).code .ge. kpion .and.
     *                o(i).code .le. knuc )
     *             .or.
     *               o(i).code .eq. kgnuc) then
               nh = nh + 1
               sumeh = sumeh + o(i).erg
            endif
         endif
      enddo

!     ===================================================
      memorize =(ng .ge. ngmin .and. sumeg .ge. sumegmin) .or.
     *  ( nh .ge. nhmin .and. sumeh .ge. sumehmin)

!/////
      write(0,*) ' memo=', memorize,
     *   ' ng=',ng, ' seg=',sumeg, ' nh=',nh,' seh=',sumeh
!//////


!     ===================================================
      if(memorize) then
         accepted = accepted + 1
!c         call cwriteSeed
!             !  SeedFile  (seed will be written by cmemorize)
!          flag for end of 1 event on working disk
         write(wdev)  -1, p
         call cmemorize(wdev, mdev)     !  reocord this event
      endif

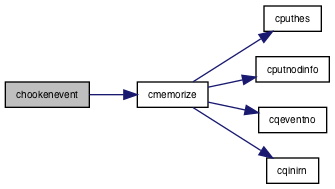

Here is the call graph for this function:

chookenrun()

subroutine chookenrun

(

)

Definition at line 322 of file chookSkel.f.

References cerrormsg(), and cprintstatus().

      implicit none
#include "Zprivate.h"
      character*100 msg
!     =========================================


!     =========================================
      call cerrormsg('++++++++++++', 1)
      write(msg, '(i8, a)') accepted,
     *       ' events are memorized as skeleton'
      call cerrormsg(msg, 1)
      call cerrormsg('their  seeds are also memorized', 1)
      call cerrormsg('-----------',1)
      close(mdev)
      call  cprintstatus   ! if don't like,  comment out

Here is the call graph for this function:

chookgint()

subroutine chookgint

(

integer

never

)

Definition at line 444 of file chookSkel.f.

References cmemonode().

      implicit none
#include  "Zprivate.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
!  #include  "Ztrackp.h"

      integer never   ! input & output

!         don't make never = 1, if you want to get
!         information after a gamma ray made interaction
!         if this is made non zero, this routine will never be called.
!
!   MovedTrack is the gamma that made interaction
!   Pwork contains produced particles.
!   Nproduced has the number of particles in Pwork
!   IntInfArray(ProcessNo) contains the type of interaction
!         IntInfArray(ProcessNo).process will have one of
!        'pair', 'comp', 'photoe' 'photop' 'mpair'
      call cmemonode(wdev, 1)
      never = 0

Here is the call graph for this function:

chooknepint()

subroutine chooknepint

(

integer

never

)

Definition at line 470 of file chookSkel.f.

References cmemonode().

      implicit none
#include  "Zprivate.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"

      integer never   ! input & output


!         don't make never = 1, if you want to get
!         information after a non-e-g particle  made interaction
!         if this is made non zero, this routine will never be called.
!
!   MovedTrack is the particle that made interaction
!   Pwork contains produced particles.
!   Nproduced has the number of particles in Pwork
!   IntInfArray(ProcessNo) contains the type of interaction
!

      call cmemonode(wdev, 1)
      never = 0

Here is the call graph for this function:

chookobs()

subroutine chookobs	(	type(track)	aTrack,
		integer	id
	)

Definition at line 185 of file chookSkel.f.

References cerrormsg(), charge, code, coszenith, erg, kneue, kneumu, mass, ng, nth, o, p, r, subcode, t, x, xyz, and y.

!
!     Note that every real variable is in double  precision so
!     that you may output it in sigle precision to save the memory.
!     In some cases it is essential to put it in sigle (say,
!     for gnuplot).
!
      implicit none
#include "Zcode.h"
#include "Ztrack.h"
#include "Zprivate.h"
      integer id  ! input.  2 ==> reached at an observation level
!                           1 ==> aTrack is going out from
!                                 outer boundery.
!                           2 ==> reached at an observation level
!                           3 ==> reached at inner boundery.
      type(track)::atrack
!
!     For id =2, you need not output the z value, because it is always
!     0 (within the computational accuracy).
!
!     ===================================================
      common /testcos/sumg, ng(20), nth, eventno
      real*8 sumg
      integer ng, nth, eventno

!     ===================================================
      if( id .eq. 2 .and. atrack.p.code .ne. kneumu .and.
     *   atrack.p.code .ne. kneue) then
         np = np + 1
         if( np .gt. npmax) then
            call cerrormsg(
     *   '# of particles >NpMax in observation', 0)
         endif
         o(np).where = atrack.where
         o(np).code = atrack.p.code
         o(np).subcode = atrack.p.subcode
         o(np).charge = atrack.p.charge
         o(np).atime = atrack.t
         o(np).erg = atrack.p.fm.p(4)
         o(np).mass = atrack.p.mass
         o(np).x = atrack.pos.xyz.r(1)
         o(np).y = atrack.pos.xyz.r(2)
         o(np).wx =atrack.vec.w.r(1)
         o(np).wy =atrack.vec.w.r(2)
         o(np).wz =atrack.vec.w.r(3)
         o(np).zenith = atrack.vec.coszenith
!     ===================================================
       if( o(np).code .le. 6 .and. o(np).code .ne. 3 ) then
         write(*, 959)
     *  o(np).where,
     *  o(np).code,
     *  o(np).charge,
     *  ( o(np).erg - o(np).mass ),
     *  ( o(np).x ), ( o(np).y ) ,
     *  ( o(np).wx ),
     *  ( o(np).wy ),
     *  ( o(np).wz ),
     *  ( o(np).zenith )
 959    format(3i3, g14.3,2f16.6,4(1x,f12.8))
      endif

!     ===================================================
      endif
!     ===================================================

!     ===================================================

Here is the call graph for this function:

chooktrace()

subroutine chooktrace

(

)

Definition at line 347 of file chookSkel.f.

References height.

            implicit none

#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"
#include  "Zobs.h"
#include  "Zobsv.h"

       real*4 h1,  h2
!
!    Every time a particle is moved in the atmosphere, this routine is called,
!    if trace > 100
!         For a one track segment,
!     TrackBefMove  has  track information at the beginning of the segment.
!     MoveTrack    has   track information at the end of the segment.
!
!     You can know the  information a track contains in the
!     chookObs routine. (Note however, no conversion of coordinate
!     has been done.  The values are in the Earth xyz system.)
!     Besides quantities explained there, you can use, for a  given 'track'
!
!     atrack.pos.xyz.x, atrack.pos.xyz.y, atrack.pos.xyz.z    (x,y.z)
!     atrack.pos.radiallen   (distance from the center of the earth)
!     atrack.pos.depth       (vertical depth)
!     atrack.pos.height      (vertical heigth from sea level)
!

      h1 = trackbefmove.pos.height- obssites(noofsites).pos.height
      h2 = movedtrack.pos.height - obssites(noofsites).pos.height

cmemonode()

subroutine cmemonode	(	integer	dev,
		integer	flag
	)

Definition at line 494 of file chookSkel.f.

References asflag, c, charge, code, colheight, coszenith, depth, erg, height, kelec, mass, p, r, subcode, t, and xyz.

      implicit none
#include  "Zcode.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
#include  "Ztrackp.h"
#include  "Zprivate.h"
!
      integer dev  ! input. fortran logical dev. number for data write
      integer flag ! input. If this is -3, high energy particles must
                   !       also be memorized.
!
!
!       memorize nodal information at interaction.
!
!        \
!         \  projectile    = MovedTrack
!         /|\  produced particles.: Pwork(i), i=1~Nproduced
!        / | \
!
!   From projectile, the track information is extracted
!   From produced particles, only those of K.E< KEminObs is
!   extracted and information needed for further tracking is
!   obtaned and memorized. The position information is common
!   to all the children.
!
!   Track   information;   pos =
!                                xyz = r(1~3), sys
!                                radiallen, depth, height, colheight
!                            t
!                          vec  =
!                                 w = r(1~3), sys
!                                 coszenith
!                          wgt
!                         where
!                        asflag
!
!      Among these, we don't memorize
!         sys which is always 'xyz'
!       radiallen: can be computed from height
!         vec; children knows  their direction
!         wgt: normally not needed, it should be 1 for skeleton making
!              So thinsamping must not be used when making skeleton.
!      asflag: should be always F, (assume for skeleton making, hybrid
!              air shower is not requested)
!
!   write  track info. of projectile
!
      integer i, nlow
      real*8 ke

!
!
      nlow = 0
      do i = 1, nproduced
         ke = pwork(i).fm.p(4) - pwork(i).mass
         if( ( pwork(i).code .le. kelec .and.
     *       ke .ge.  cuteg ) .or.
     *       ( pwork(i).code .gt. kelec .and.
     *       ke .ge.  cutneg ) ) then
!              count low energy ptcls
            if(flag .ne. -3) then
               if( ke .lt.  keminobs(1)) then
                  nlow = nlow + 1
               endif
            else
!               all ptcl must be memorized
               nlow = nlow + 1
            endif
         endif
      enddo
!         next is harmful for B-approx air shower
!         because, parent is not memorized and cannot
!         generate AS at flesh time at proper positon
!         asflag == -1 must apear in flesh
!      if(nlow .eq. 0 )  return !  *************
!       if there is no return here, the size of skeleton data
!       becomes 3.2 times larger
      if(nlow .eq. 0  .and. movedtrack.asflag .ne. -1) return


      p.posx = movedtrack.pos.xyz.r(1)
      p.posy = movedtrack.pos.xyz.r(2)
      p.posz = movedtrack.pos.xyz.r(3)
      p.depth = movedtrack.pos.depth
      p.height = movedtrack.pos.height
      if( movedtrack.pos.colheight .gt. 1.e36) then
         p.colheight = 1.e36    ! no col. yet.
      else
         p.colheight =  movedtrack.pos.colheight
      endif
      p.atime = movedtrack.t
      p.where = movedtrack.where
      p.coszenith = movedtrack.vec.coszenith
      p.code = movedtrack.p.code
      p.erg  = movedtrack.p.fm.p(4)
      p.asflag = movedtrack.asflag


!c
!c     *           p.posx, p.posy, p.posz, p.depth, p.height,
!c     *           p.colHeight, p.atime, p.where
!c
!       write particle info
!           p(1~4)
!           mass
!           code
!           subcode
!           charge
!


      write(dev) nlow, p


      do i = 1, nproduced
         ke = pwork(i).fm.p(4) - pwork(i).mass
         if( ( pwork(i).code .le. kelec .and.
     *       ke .ge.  cuteg ) .or.
     *       ( pwork(i).code .gt. kelec .and.
     *       ke .ge.  cutneg ) ) then

            if(flag .eq. -3 .or.  ke .lt. keminobs(1)) then
               c.code = pwork(i).code
               c.subcode =  pwork(i).subcode
               c.charge =  pwork(i).charge
               c.fm(1) = pwork(i).fm.p(1)
               c.fm(2) = pwork(i).fm.p(2)
               c.fm(3) = pwork(i).fm.p(3)
               c.fm(4) = pwork(i).fm.p(4)
               c.mass = pwork(i).mass

               write(dev) c
            endif
         endif
      enddo

cmemorize()

subroutine cmemorize	(	integer	from,
		integer	to
	)

Definition at line 633 of file chookSkel.f.

References cputhes(), cputnodinfo(), cqeventno(), cqinirn(), depth, and height.

      implicit none
#include "Zmaxdef.h"
#include  "Ztrack.h"
#include  "Ztrackv.h"
#ifdef  DOMPI
#include "mpif.h"
#include  "Zmpi.h"
#else
       integer::mpirank = -1
#endif
      integer from      !  working disk file
      integer to        !  permanent disk file where skeleton is sotered




      integer num, cumnum, irevent(2)
!      record /track/ incident
!      record /coord/ angle


      rewind from
!          need not memorize, can be generated at flesh
!      call cqIncident(incident, angle)

      call cqeventno(num, cumnum)

      call cqinirn(irevent)   ! seed of the event

      write(to) cumnum, num, irevent,
#if defined (KEKB) || defined (KEKA)
#include "ZavoidUnionMap.h"
#else
     *  zfirst
#endif
      call cputhes(to)   ! put high energy showers.
      write(0,*) 'rank=',mpirank,
     * ' first Z=',zfirst.pos.depth*0.1, ' g/cm2',
     *  zfirst.pos.height, ' m ir=', irevent

      call cputnodinfo(from, to)  ! put nordal info.

Here is the call graph for this function:

cputhes()

subroutine cputhes

(

integer

to

)

Definition at line 678 of file chookSkel.f.

References o.

      implicit none
#include "Zprivate.h"
      integer to
!
!        write high energy sekeleton data into 'to'
!
      integer i

      write(to) np

      do i = 1, np
         write(to) o(i)
      enddo

cputnodinfo()

subroutine cputnodinfo	(	integer	from,
		integer	to
	)

Definition at line 695 of file chookSkel.f.

References c, and p.

      implicit none
#include "Zprivate.h"

      integer from, to

      integer i, nlow

      nlow = 1
      do while ( nlow .ge. 0 )
         read(from) nlow,  p
         write(to)  nlow,  p
         do i = 1, nlow
            read(from) c
            write(to) c
         enddo
      enddo
