cgeomag.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	cgeomag (yearin, llh, h, icon)
	Subroutine for calculating Geomagnetic field at a position. More...
subroutine	crdgeomag (filepath, yearin)
	Subroutine to read Field Model parameter from a file in $COSMOSTOP/Data/Geomag/. More...
subroutine	cgmgigrf (devn, filepath, yearin)
	Read igrf data from COSMOSTOP/Data/Geomag/ Read coefficient of IGRF datafile called at subroutine cgeomag. More...
subroutine	cprgeomag
	Print out Geomag model coeff data. More...

Function/Subroutine Documentation

cgeomag()

subroutine cgeomag	(	real*8	yearin,
		type(coord)	llh,
		type(magfield)	h,
		integer	icon
	)

Subroutine for calculating Geomagnetic field at a position.

Parameters

[in]	yearin	such as 1990.5
[in]	llh	position around the earth. 'llh' form. conversion will be taken care. data type /coord/
[out]	h	north east down (T) data type /magfield/
[out]	icon	0/1 0: OK 1: input param wrong

Definition at line 33 of file cgeomag.f.

References cerrormsg(), cos, csetmagfield(), ctranscoord2(), d0, d3, and parameter().

       implicit none
#include  "Zglobalc.h"
#include  "Zcoord.h"
#include  "Zmagfield.h"
#include  "Zearth.h"
       real*8 yearin
       type(coord)::llh
       type(magfield)::h
       integer icon

!     ************************************
      integer nmax
      parameter(nmax = 13)
      real*4 gnm(nmax, 0:nmax), hnm(nmax, nmax), year
      real*4 gnmd(nmax, 0:nmax), hnmd(nmax, nmax)
      integer nmx
      common /zmagcoef/  gnm, gnmd, hnm, hnmd, year, nmx
!     ************************************

!
!
       real*4 r, sumn, sume, sumd, t, cost, sint, x, tlonr, gmnc,
     *       cosml, sinml, hmnc, temp
       real*8 gn, ge, gd
       real*4 ssumd, ssumn, ssume
       integer m, n
       type(coord)::cdata
       real*4 kdpmnxsinn, kpmnxn, kpmnxisinn

!
!         check data type
       if(llh%sys .eq. 'llh') then
          cdata = llh
       else     ! convet to llh
          call ctranscoord2('llh', llh, cdata)
       endif
!
       icon =  0
       if( abs(yearin-year) .gt. 7.) then
           icon=1
           call cerrormsg(
     *     ' Year spec. for geomag data is invalid.', 1)
!       elseif(abs(cdata.lat) .gt. 90.) then
       elseif(abs(cdata%r(1)) .gt. 90.5d0) then
           icon=2
!       elseif(abs(cdata.long) .gt. 360.) then
       elseif(abs(cdata%r(2)) .gt. 360.5d0) then
           icon=2
!       elseif(cdata.h .gt. 5000.d3) then
       elseif(cdata%r(3) .gt. 100000.d3) then
           icon=1
!       elseif(cdata.h .lt. -3000.d3) then
       elseif(cdata%r(3) .lt. -3000.d3) then
           icon=1
       endif
       if(icon .ne. 2) then
!           r=1./( 1.+cdata.h/Eradius )
           r=1./( 1.+cdata%r(3)/eradius )
           sumn=0.
           sume=0.
           sumd=0.
!           t=(90.-cdata.lat)*Torad
           t=(90.-cdata%r(1))*torad
           cost=cos(t)
           sint=sin(t)
           x=cost
!           tlonr=cdata.long*Torad
           tlonr=cdata%r(2)*torad
           do   n=1, nmx
              ssumn = 0.
              ssume = 0.
              ssumd = 0.
              do   m=0, n
                 gmnc= gnm(n, m)
                 cosml=cos(m*tlonr)
                 sinml=sin(m*tlonr)
                 if(m .gt. 0) then
                    hmnc=hnm(n,m)
                    ssumn = ssumn+  (gmnc*cosml+hmnc*sinml)*
     *                kdpmnxsinn(m, n, sint, x)
                    ssume = ssume+  m *(-gmnc*sinml + hmnc*cosml)
     *                  *  kpmnxisinn(m, n, sint, x)
                    ssumd = ssumd + (gmnc*cosml+ hmnc*sinml)
     *                 * kpmnxn(m, n, sint, x)
                 else
                    ssumn = ssumn + gmnc*kdpmnxsinn(m, n, sint, x)
                    ssumd = ssumd + gmnc*kpmnxn(m, n, sint, x)
                 endif
              enddo
              temp = r**(n+2)
              sumn = sumn + ssumn*temp
              sume = sume + ssume*temp
              sumd = sumd + ssumd*temp *(n + 1)
          enddo
!              original formula gives  data in nT.
!              north component
          gn = -sumn /1.e9  ! to T.
!              east  component
          ge = -sume /1.e9
!              down
          gd = -sumd /1.e9
          call csetmagfield('ned', gn, ge, gd, h)
       endif
       if(icon .eq. 2) then
          call cerrormsg('Geometrical input data wrong', 0)
       endif

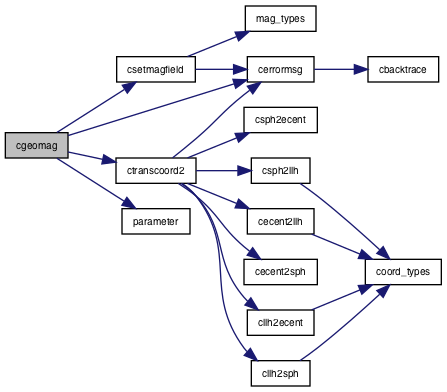

Here is the call graph for this function:

cgmgigrf()

subroutine cgmgigrf	(	integer	devn,
		character*(*)	filepath,
		real*8	yearin
	)

Read igrf data from COSMOSTOP/Data/Geomag/ Read coefficient of IGRF datafile called at subroutine cgeomag.

Parameters

[in]	devn	(Opened file's device number?)
[in]	filepath	filename which is scanned.
[in]	yearin	input year. such as 1990.5

Definition at line 195 of file cgeomag.f.

References parameter(), and true.

      implicit none
!            assume at least two year data is included.
      integer devn              ! input file dev. no.
      character*(*) filepath
      real*8  yearin ! input. year of geomag.

      integer i
      character*1024  msg


!     ************************************
      integer nmax
      parameter(nmax = 13)
      real*4 gnm(nmax, 0:nmax), hnm(nmax, nmax), year
      real*4 yearmin, yearmax
      real*4 gnmd(nmax, 0:nmax), hnmd(nmax, nmax)
      integer nmx
      common /zmagcoef/  gnm, gnmd, hnm, hnmd, year, nmx
!     ************************************
!           format from vesion Cosmos 7.55 is diff. from
!       old one;  the data format for old one cannot be
!       found in the web site of igrf. The format found
!       in the web site is
!   g/h n m 1900.0 1905.0  ...   2005     2010      SV
!   g  1  0 -31543 -3146   ... -29554.63 -29496.5   11.4
!   g  1  1  -2298  -2298  ... -1669.05  -1585.9    16.7
!   h  1  1   5922   5909  ...  5077.99   4945.1  -28.8
!   g  2  0   -677   -728  ... -2337.24  -2396.6  -11.3
!   ....
!   g 13 13      0      0  ...  -0.18     -0.3    0.0
!   h 13 13      0      0  ..   -0.82     -0.8    0.0
!
      integer klena, msglen

      integer nf ! # of  fields in the data
      integer n1, n2
      integer:: n11, n12, n21, n22, n, m
      integer:: targetf1, targetf2

      real(4):: year1, year2, sv, dy,  yearx

      rewind  devn


!       first find the appropriate year
      year = yearin
      msg = ' '
!     format changed from igrf12:  skip if first col. is # or c/s
      do
         read(devn, '(a)' ) msg
         if( msg(1:1) /= "#" .and. msg(1:3) /= "c/s") exit
      enddo
!     chagne for igrf12 ended.  igrf10 can be read also.


!         now msg should start with "g/h"
      call kcountfields(msg, nf)
      if(nf < 5) then
         write(0,*) ' input igrf data is invalid'
         write(0,*) ' the first line is ', msg
         write(0,*) ' detected in cgmgIgrf '
         stop 9999
      endif
      call kcgetafield(msg, 4, n1, n2)
      if(n1 <= 0) then
         write(0,*) ' strange in cgmgIgrf'
         stop 9999
      endif
      read( msg(n1:n2), *)  year1
      yearmin = year1

      call kcgetafield(msg, nf-1, n1, n2)
      read( msg(n1:n2), *)  yearmax
      targetf2 = 5
      if(year < year1 ) then
         targetf1 = 4
         targetf2 = 5
         dy = year - year1
      else
         do i = 5, nf-1
            call kcgetafield(msg, i, n1, n2) ! 2nd year  to last year
            read(msg(n1:n2), *) year2
            if( year < year2 .and. year >= year1 ) then
               targetf1 = i - 1
               targetf2 = i
               dy = year - year1
               exit
            else
               year1 = year2
               if( i == nf-1 ) then
                  targetf1 = nf -1
                  targetf2 = nf -1
                  dy = year - year1
                  year2 = year1+5
               endif
            endif
         enddo
      endif
      if( abs(dy) > 11. ) then
         write(0,*) 'yearin to cgmgIgrf is out of range'
         write(0,*) 'yearin=', yearin
         stop 8888
      endif
!              read coeff.
      nmx = 0
      do while (.true.)
         read(devn, '(a)', end=1000) msg
         call kcgetafield(msg, 2, n1, n2)
         read( msg(n1:n2), *)  n
         call kcgetafield(msg, 3, n1, n2)
         read( msg(n1:n2), *)  m
         if( n > nmax .or.  m > nmax ) then
            write(0,*) ' too large m or n; m=', m, ' n=',n
            write(0,*) ' max should be ', nmax
            write(0,*) ' cgmgIgrf '
            stop 1111
         endif
         nmx = max(n,m,nmx)
         call kcgetafield(msg, 1, n1, n2)    !  g/h
         call kcgetafield(msg, targetf1, n11, n12)  ! coef. for year1
         call kcgetafield(msg, targetf2, n21, n22)  ! //            2


         if( msg(n1:n2) == 'g' ) then
            read( msg(n11:n12), *) gnm(n,m)
            read( msg(n21:n22), *) gnmd(n,m)
            if( year2 <= yearmax) then
               gnmd(n,m) = ( gnmd(n,m) - gnm(n,m) )/ (year2-year1)
            else
               call kcgetafield(msg, nf, n1, n2)
               read(msg(n1:n2), *) sv
               gnmd(n,m) = sv
            endif
         elseif(msg(n1:n2) == 'h' ) then
            read( msg(n11:n12), *)  hnm(n,m)
            read( msg(n21:n22), *) hnmd(n,m)
            if( year2 <= yearmax ) then
               hnmd(n,m) = ( hnmd(n,m) - hnm(n,m) )/ (year2-year1)
            else
               call kcgetafield(msg, nf, n1, n2)
               read(msg(n1:n2), *) sv
               hnmd(n,m) = sv
            endif
         else
            write(0,*) ' igff data strange the line is'
            write(0,*) msg
            stop 12345
         endif
      enddo
 1000 continue
      do n = 1, nmx
         do m=0,  n
            gnm(n, m) = gnm(n, m) + dy*gnmd(n, m)
            if(m .gt. 0) then
               hnm(n, m) = hnm(n,m) + dy*hnmd(n, m)
            endif
         enddo
      enddo


      write(0, *) 'Geomagnetic data has been read from', filepath
      write(0, *) ' year=',yearin, ' # of expansion terms=', nmx

Here is the call graph for this function:

cprgeomag()

subroutine cprgeomag

(

)

Print out Geomag model coeff data.

Definition at line 363 of file cgeomag.f.

References parameter().

      implicit none
!        print current geomag coeff.


      integer m, n


!     ************************************
      integer nmax
      parameter(nmax = 13)
      real*4 gnm(nmax, 0:nmax), hnm(nmax, nmax), year
      real*4 gnmd(nmax, 0:nmax), hnmd(nmax, nmax)
      integer nmx
      common /zmagcoef/  gnm, gnmd, hnm, hnmd, year, nmx
!     ************************************

      write(*,*) 'year=',year, ' nmax=', nmx
      write(*,'("  m  n    gnm      hnm    dgnm    dhnm")')
      do n = 1, nmx
         do m =0, n
            if(m .eq. 0) then
               write(*,'(2i3,2f7.0,2f7.1)') m, n,
     *          gnm(n, m), 0., gnmd(n, m), 0.
            else
               write(*,'(2i3,2f7.0,2f7.1)') m, n,
     *                gnm(n, m), hnm(n,m), gnmd(n,m), hnmd(n,m)
            endif
         enddo
      enddo

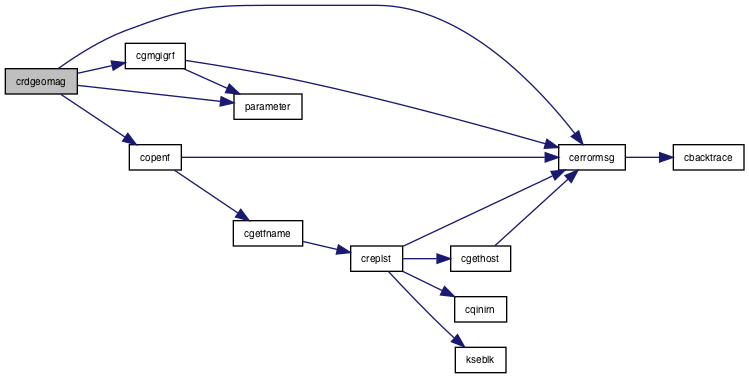

Here is the call graph for this function:

crdgeomag()

subroutine crdgeomag	(	character*(*)	filepath,
		real*8	yearin
	)

Subroutine to read Field Model parameter from a file in $COSMOSTOP/Data/Geomag/.

Parameters

[in]	filepath	File contain geomagnetic fileld model parameter
[in]	yearin	calculation year

Definition at line 144 of file cgeomag.f.

References cerrormsg(), cgmgigrf(), copenf(), and parameter().

      implicit none
!    #include "Zmanagerp.h"
      character*(*) filepath
      real*8 yearin
      integer klena
      character*65 msg


!     ************************************
      integer nmax
      parameter(nmax = 13)
      real*4 gnm(nmax, 0:nmax), hnm(nmax, nmax), year
      real*4 gnmd(nmax, 0:nmax), hnmd(nmax, nmax)
      integer nmx
      common /zmagcoef/  gnm, gnmd, hnm, hnmd, year, nmx
!     ************************************

      character*128 path
      character*1 null
      integer devn, icon, leng, kgetenv
      save devn
      data devn /12/
      null = char(0)

      if(filepath .eq. ' ') then
!        assume it is  Cosmos/Data/Geomag/igrf
!          get $COSMOSTOP
         leng = kgetenv("COSMOSTOP"//null, path)
         if(leng .eq. 0) then
            call cerrormsg(
     *      'Env. variable "COSMOSTOP" cannot be found', 0)
         endif
         path = path(1:leng)//"/Data/Geomag/igrf"
      else
         path = filepath
      endif
      call copenf(devn, path(1:klena(path)), icon)
      if(icon .eq. 1) then
         call cerrormsg(path, 1)
         call cerrormsg(
     *        'above file cannot be opened for geomagnetic data', 0)
      endif
      call cgmgigrf(devn, path, yearin)

Here is the call graph for this function:
