crot3vec.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	crot3vec (zax, vec1, vec2)
subroutine	cirot3vec (init, p1, p2, po)

Function/Subroutine Documentation

cirot3vec()

subroutine cirot3vec	(	integer	init,
		type(fmom)	p1,
		type(fmom)	p2,
		type(fmom)	po
	)

Definition at line 97 of file crot3vec.f.

Referenced by chooknepint(), and cmemonode().

      implicit none
#include "Zptcl.h"
!    ***************************************
!
!         suppose p1 and p2 are given in the same system.
!      This program rotate the  z-axis so that
!      it coinsides with p1 and transform p2 as seen from p1.
!      The result is put in po.
!      Note that the x and y are arbitrary chosen.
!      the 4-th  comp. is not used and unchanged.
!
      integer init  ! input. give 1 if p1 is diff. from prev. call.
      type(fmom)::p1  ! input.
      type(fmom)::p2  ! input.
      type(fmom)::po  ! output. po may be p2
!
      type(fmom)::x, y, px
      real*8 xnorm, ynorm, pnorm, sum, ax, ay, az

!c #ifdef   USESAVE
      save x, y, xnorm, ynorm, pnorm
!c #endif

!
!        form x and y with  p1 being z.
!
      if(init .eq. 1) then
         pnorm = sqrt(p1%p(1)**2 + p1%p(2)**2 + p1%p(3)**2)
      endif
      if( pnorm .eq. 0.0 ) then
         po = p2
      else
         if(init .eq. 1) then
            ax = abs(p1%p(1))
            ay = abs(p1%p(2))
            az = abs(p1%p(3))

            if(az .gt. ay) then
               if(az .gt. ax) then
                  sum = -(p1%p(1) + p1%p(2))
                  x%p(1) = 1.
                  x%p(2) = 1.
                  x%p(3) = sum/p1%p(3)
               else
                  sum = -(p1%p(2) + p1%p(3))
                  x%p(2) = 1.
                  x%p(3) = 1.
                  x%p(1) = sum/p1%p(1)
               endif
            elseif(ay .gt. ax ) then
               sum = -(p1%p(1) + p1%p(3))
               x%p(1) = 1.
               x%p(3) = 1.
               x%p(2) = sum/p1%p(2)
            else
               sum = -(p1%p(2) + p1%p(3))
               x%p(2) = 1.
               x%p(3) = 1.
               x%p(1) = sum/p1%p(1)
            endif
!             form y
            y%p(1) = p1%p(2)* x%p(3) - p1%p(3) * x%p(2)
            y%p(2) = p1%p(3)* x%p(1) - p1%p(1) * x%p(3)
            y%p(3) = p1%p(1)* x%p(2) - p1%p(2) * x%p(1)
!
!            since p1, x, y are not unit vector, we have to normalize
!
            xnorm = sqrt(x%p(1)**2 + x%p(2)**2 + x%p(3)**2)
            ynorm = sqrt(y%p(1)**2 + y%p(2)**2 + y%p(3)**2)
         endif
!
!          if init != 1, we come here directly
!
!          get projection of p2 on to x, y, p1
!
         px%p(1) = (p2%p(1)* x%p(1) + p2%p(2)* x%p(2) +
     *        p2%p(3) * x%p(3))/xnorm
         px%p(2) = (p2%p(1)* y%p(1) + p2%p(2)* y%p(2) +
     *        p2%p(3) * y%p(3))/ynorm
         px%p(3) = (p2%p(1)* p1%p(1) + p2%p(2)* p1%p(2) +
     *        p2%p(3) * p1%p(3))/pnorm
!
         po%p(1:3) = px%p(1:3)
         po%p(4) = p2%p(4)
      endif

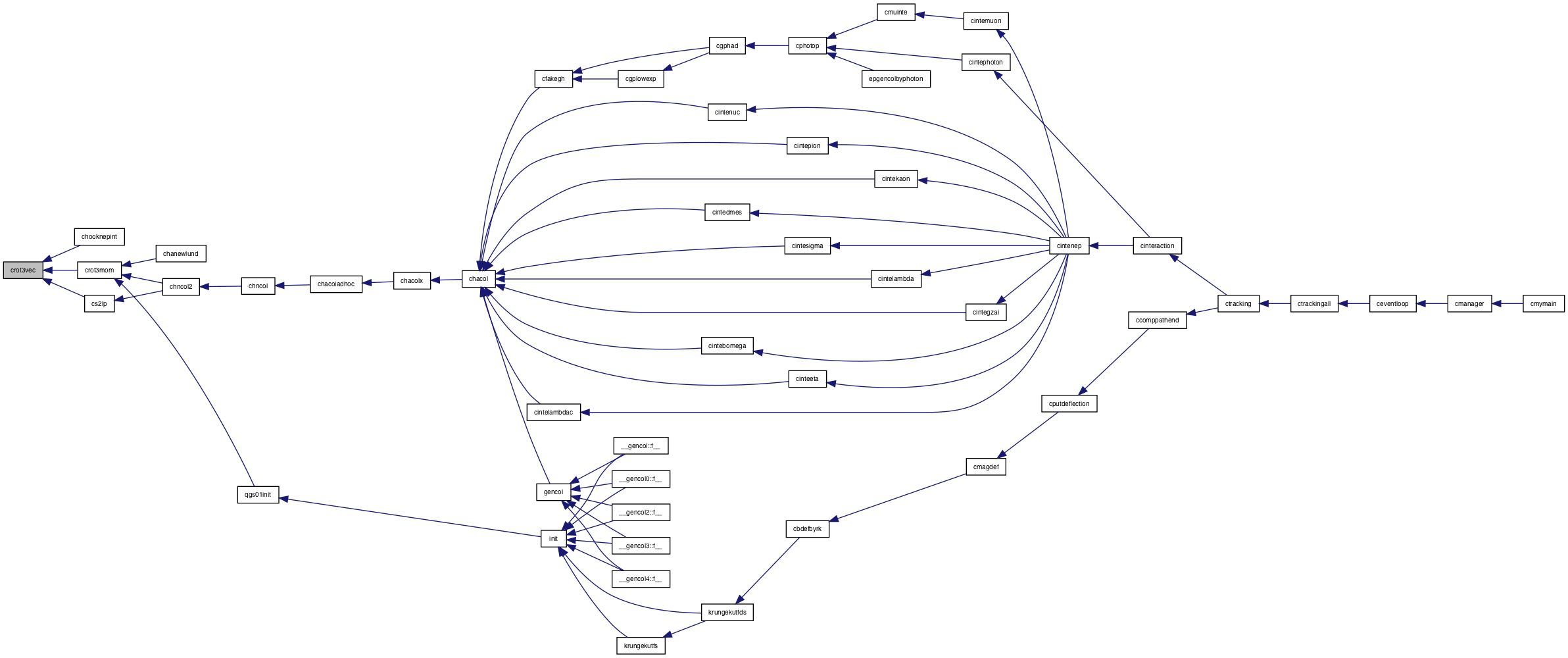

Here is the caller graph for this function:

crot3vec()

subroutine crot3vec	(	type(fmom)	zax,
		type(fmom)	vec1,
		type(fmom)	vec2
	)

Definition at line 33 of file crot3vec.f.

References e, and parameter().

Referenced by chooknepint(), crot3mom(), and cs2lp().

!      ************************************
       implicit none
#include "Zptcl.h"
       type(fmom):: zax, vec1, vec2
!   dangerous.  vec2 dose not recieve 4th coponent !!!
       real*8  sml, epsx, av

       parameter(sml=0.001,  epsx=1.e-4, av=.985)

!
!   /usage/ call crot3vec(zax, vec1, vec2)
!         4 momentum  vec1 are given in a system
!         (=R) whose z-axis has pallarel to 4 momentum (zax) in
!         a certain system(=B).
!         This subroutine transform the angles so that (vec1)
!         be the 4 momeuntum in the B-system,
!         and put the result into vec2.
!   (Note 4th component is acutally not needed and not changed)
!         The x and y
!         axes of the R-system are chosen so that the transformation
!         becomes simplest. This does not guarantee that the vec2
!         have the same sing as the original one when xax(1) is
!         1.0 or close to 1.0.
!      vec2 can be the same one as vec1, or zax.
!   This is essentially the same as ctransVectZ.
!
       real*8  el2, em2, d, a, b, c
       real*8 tmpa, tmpb, tmpc, pabs
       type(fmom):: zaxdir
!
!           get direction cos from zax
       pabs = sqrt(zax%p(1)**2 + zax%p(2)**2 + zax%p(3)**2)
       if(pabs .eq. 0.) then
          zaxdir%p(1) = 0.
          zaxdir%p(2) = 0.
          zaxdir%p(3) = 1.
       else
          zaxdir%p(1) = zax%p(1)/pabs
          zaxdir%p(2) = zax%p(2)/pabs
          zaxdir%p(3) = zax%p(3)/pabs
       endif
!
       el2=zaxdir%p(1)**2
       em2=zaxdir%p(2)**2
       d=1.+zaxdir%p(3)
       if(abs(d) .gt. epsx) then
          a=el2/d - 1.
          b=zaxdir%p(1)*zaxdir%p(2)/d
          c=em2/d - 1.
          tmpa=a*vec1%p(1) + b*vec1%p(2) + zaxdir%p(1)*vec1%p(3)
          tmpb=b*vec1%p(1) + c*vec1%p(2) + zaxdir%p(2)*vec1%p(3)
       else
          tmpa= vec1%p(2)
          tmpb= vec1%p(1)
       endif
       tmpc=zaxdir%p(1)*vec1%p(1) + zaxdir%p(2)*vec1%p(2) +
     *     zaxdir%p(3)*vec1%p(3)
       vec2%p(1) = tmpa
       vec2%p(2) = tmpb
       vec2%p(3) = tmpc

Here is the call graph for this function:

Here is the caller graph for this function:
