cs2lp.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	cs2lp (proj, trgt, icon)
subroutine	cgextx (xpmin, xpmax, xtmin, xtmax)
subroutine	cslp (p, akmin, akmax, a)
subroutine	cxtuln (x, ux)
subroutine	cxtulnpi (x, ux)
subroutine	cfclp (pj, xp, p)
subroutine	cslpx (pj, tmsq, akmin, akmax, x, notfirst, icon)
subroutine	cslppt (pj, avpt, ptn)

Function/Subroutine Documentation

cfclp()

subroutine cfclp	(	type(ptcl)	pj,
		real*8	xp,
		type(ptcl)	p
	)

Definition at line 373 of file cs2lp.f.

References keta, kkaon, knuc, komega, kphi, kpion, krho, regptcl, and rndc().

Referenced by cslp().

!
        implicit none
!
!----        include  '../../Zptcl.h'
#include  "Zptcl.h"
!----        include  '../../Zcode.h'
#include  "Zcode.h"
!----        include  '../Zevhnp.h'
#include  "Zevhnp.h"
!
      logical pnchgex
      common /zchgex/ pnchgex
        type(ptcl):: pj, p
        real*8 xp
!
        real*8 rf, u
        integer k0
!c        character*70  msg
!
        k0=pj%code
        call rndc(u)
!            branch by ptcl kind
        if(k0 .eq. kpion) then
!                      pion; more inelastic one is
!                           more likely chargeexchanged
           rf=sqrt(1.-xp)
!            if(u .gt. Cepic0*rf) then
!          if(u .gt. 0.3* sqrt(rf) ) then
          if(u .gt. 0.35* rf ) then
!                no charge exc.
             p%charge = pj%charge
          else
             if(pj%charge .eq. 0) then
!                   0--> + or -
                call rndc(u)
                if(u .lt. .5) then
                   p%charge = 1
                else
                   p%charge = -1
                endif
             else
!                 charge-->0 or opposite charge
                call rndc(u)
                if(u .lt. rf*0.30) then
                   p%charge = -pj%charge
                else
                   p%charge = 0
                endif
             endif
          endif
      elseif(k0 .eq. kkaon) then
!                                         kaon
         rf=sqrt(1.-xp)
         if(u .gt. 0.35*rf) then
              p%charge = pj%charge
         else
              p%charge = 0
              call rndc(u)
              p%subcode = pj%subcode
         endif
      elseif(k0 .eq. knuc) then
!                                        nucleon
         if( .not. pnchgex )  then
!              same charge
              p%charge = pj%charge
         else
              if(pj%charge .eq. 0) then
                  if(pj%subcode .eq. regptcl) then
                      p%charge = 1
                  else
                      p%charge = -1
                  endif
              else
                  p%charge = 0
                  p%subcode = pj%subcode
              endif
         endif
      elseif(k0 .eq. krho) then
         p%charge = 0
      elseif(k0 .eq. komega)then
         p%charge = 0
      elseif(k0 .eq. kphi) then
         p%charge = 0
      elseif(k0 .eq. keta) then
         p%charge = 0
      else
!         write(msg,*) ' code=',k0,' undef. in cfclp'
!         call cerrorMsg(msg, 1)
!           same charge as input
      endif

Here is the call graph for this function:

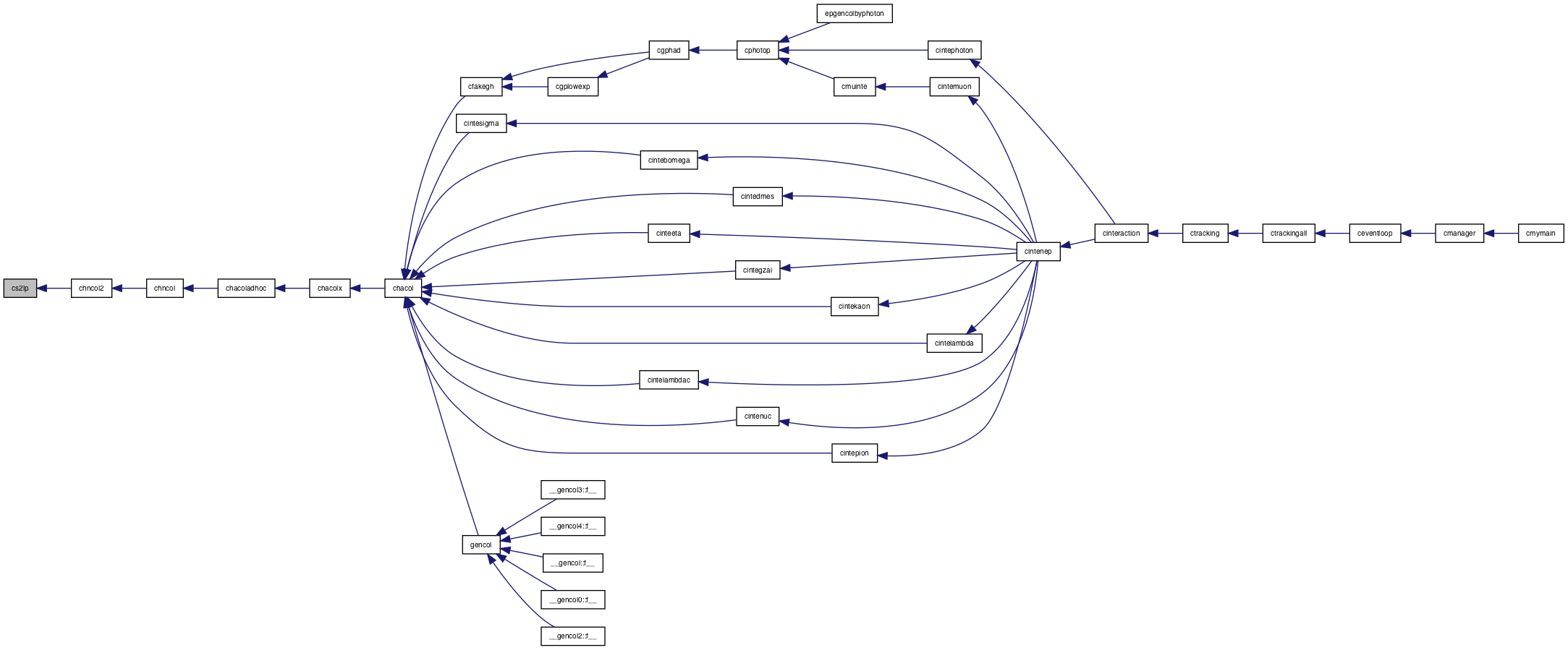

Here is the caller graph for this function:

cgextx()

subroutine cgextx	(	real *8	xpmin,
		real *8	xpmax,
		real *8	xtmin,
		real *8	xtmax
	)

Definition at line 173 of file cs2lp.f.

References cadjm(), cbst1(), cibst1(), and maspic.

Referenced by cs2lp().

!        get extream of recoil x, defined as the ratio
!        of incoming and outgoing leading partilce,
!        where the counter  particle is at rest.
!  xpmin:  real*8. Output. minimum x of projectile.
!  xpmax:   //             maximum //
!  xtmin:  real*8. Output. minimum x of target
!  xtmax:   //             maximum //
!
!        min is when projectile after coll. is at rest in cms.
!        max is when projectile after coll. loses mass of 1 pion
!
       implicit none
!

#include  "Zptcl.h"
#include  "Zmass.h"
#include  "Zevhnv.h"
!
       real *8  xpmin, xpmax, xtmin, xtmax
!
       type(ptcl):: rest   ! resting particle

       type(ptcl):: temp, temp2, temp3
!
       rest%fm%p(1)=0.
       rest%fm%p(2)=0.
       rest%fm%p(3)=0.
       rest%mass=pjlab%mass
       rest%fm%p(4) = rest%mass
!        min of projectile.
!           boost stopped proj in cms into lab.
       call cibst1(1, cmsp, rest, temp)
       temp%mass = rest%mass
!         boost it to target rest system
       call cbst1(1, tglab, temp, temp2)
       xpmin= temp2%fm%p(4)/pjtatr%fm%p(4)
!        max
!         get proj. cms energy - mass of pion
       temp=pjcms
       temp%fm%p(4) =max(temp%fm%p(4) - maspic, pjlab%mass)
       call cadjm(temp, temp)  ! adjust momentum along with E
!         boost it into lab
       call cibst1(1, cmsp, temp, temp2)
       temp2%mass=pjlab%mass
!         boost to target rest system
       call cbst1(1, tglab, temp2, temp3)
       xpmax= temp3%fm%p(4)/pjtatr%fm%p(4)
!                       ............
!        max and min x  of target
!            min
!          boost stopped  target in cms into lab system
       rest%mass = tglab%mass
       rest%fm%p(4) = rest%mass
       call cibst1(1, cmsp, rest, temp)
       temp%mass = tglab%mass
!          boost to projectile rest system
       call cbst1(1, pjlab, temp, temp2)
       xtmin = temp2%fm%p(4)/tgpatr%fm%p(4)
!            max
!          get cms energy - mass of pion
       temp = tgcms
       temp%fm%p(4) = max(temp%fm%p(4) - maspic, tglab%mass)
!          boost it in cms  into lab
       call cibst1(1, cmsp, temp,  temp2)
       temp2%mass = tglab%mass
!          boost it to projectile rest system.
       call cbst1(1, pjlab, temp2, temp3)
       xtmax =  temp3%fm%p(4)/tgpatr%fm%p(4)

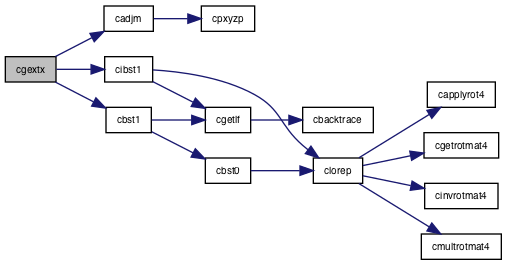

Here is the call graph for this function:

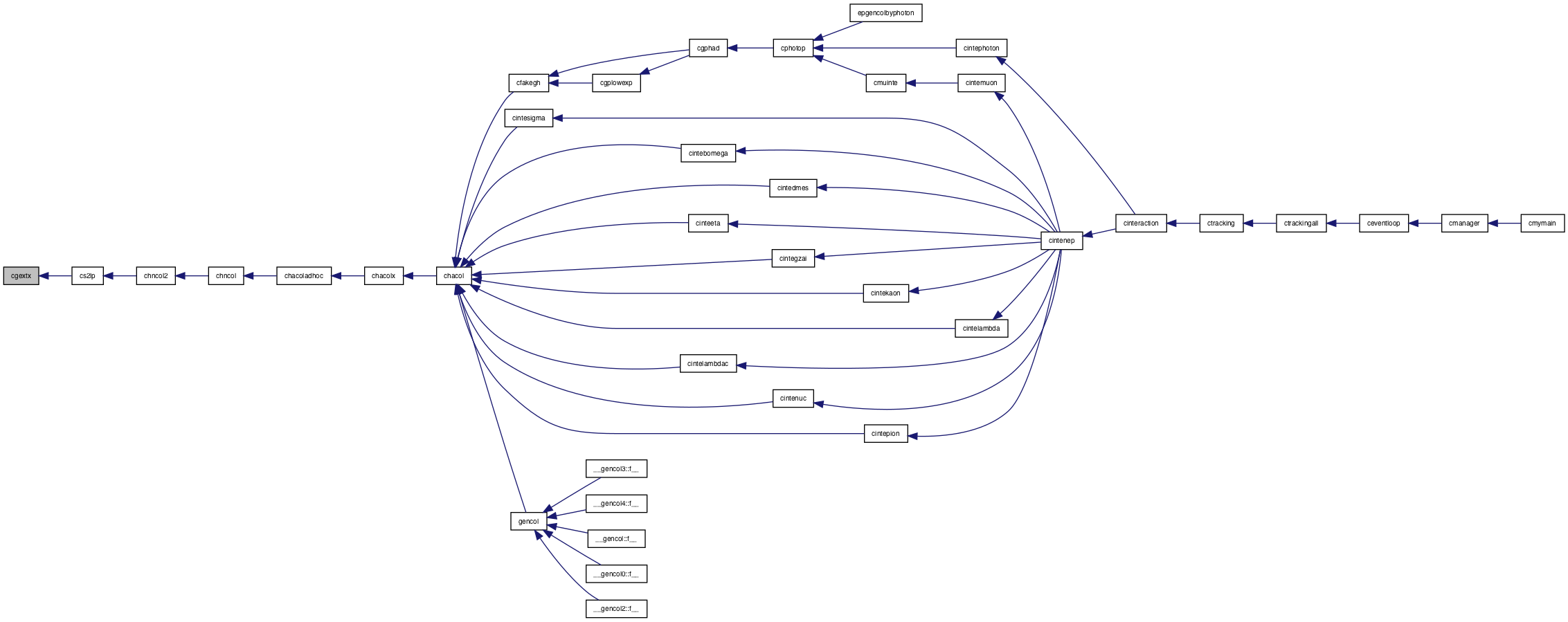

Here is the caller graph for this function:

cs2lp()

subroutine cs2lp	(	type(ptcl)	proj,
		type(ptcl)	trgt,
		integer	icon
	)

Definition at line 5 of file cs2lp.f.

References cbst0(), cbst1(), cerrormsg(), cgeqm(), cgetlf(), cgextx(), cibst1(), cinipipx(), cinippx(), cinippxn(), cprptc(), crot3vec(), cslp(), false, maspic, and parameter().

Referenced by chncol2().

!           proj: /ptcl/ Input. projectile in lab
!
!           trgt: /ptcl/ Input. target in lab
!           icon :   integer. Output. if 0, ok.
!                             if non 0, sampling failed after
!                             20 trials. or energy is too low
!      *** Note ***
!    After this call, leading particle infomation is set in
!    variables in ../Zevhnv.h.
!  Projectile
       implicit none

#include  "Zptcl.h"
#include  "Zmass.h"
#include  "Zevhnv.h"

       logical first/.true./
       save first



!      ***************
       external cblkevhnp           ! block common name
!      ****************
       type(ptcl):: proj, trgt
       integer icon
!
       type(fmom):: gc
       real*8 xpmin, xpmax, xtmin, xtmax, c2, dest1,
     *        dest2, den

       real*8 maslimit2   ! missing mass is too small or not
       integer maxtry, count
       parameter(maxtry = 20, maslimit2 =(maspic*1.1)**2 )
       character*70 msg
       logical noferm    ! if target is at rest, no Fermi momentum.

       if(first) then
          call cinippx  ! make sampling table for pp->p+x
          call cinippxn  !  pp->n+x
          call cinipipx
          first = .false.
       endif
!
       count = 0
       icon = 0
       pjlab = proj
       tglab = trgt
       noferm = trgt%fm%p(4) .eq. trgt%mass


!          get cms equivlent mass and 4 momentum
       call cgeqm(pjlab, tglab, cmsp, icon)
       if(icon .ne. 0) then
          write(msg, *) ' cms cannot be formed in cs2lp; proj and ',
     *                'target are '
          call cerrormsg(msg, 1)
          call cprptc(pjlab, 1)
          call cprptc(tglab, 1)
          stop 9999
       endif
!          get Lorentz factor of cms
       call cgetlf(cmsp,  gc)
!          boost pj into cms.
       call cbst0(1, gc, pjlab, pjcms)
!            boost target into cms
       call cbst0(2, gc, tglab, tgcms)
!          boost proj into target rest system
       if(noferm) then
           pjtatr = pjlab
       else
           call cbst1(1, tglab, pjlab, pjtatr)
       endif
!            boost target into projectile rest system
       call cbst1(1, pjlab, tglab, tgpatr )
!            get possible max and min x of leading particles
       call cgextx(xpmin, xpmax, xtmin, xtmax)
       if(xpmin .ge. xpmax .or. xtmin .ge. xtmax) then
          icon = 1
          return
       endif

!      ----------------------------------------------
!      *** until loop*** until virtual ptcl that balances
!                              two outgoing leadings become
!                              timelike.
      do while (.true.)
!          *** until loop***  generation of projectile and target leading
!             ptcls.
          do while (.true.)
!               sample 1 leading ptcl and set it in
!                  Rpjtatr(target at rest).  Note Rpjtatr is
!                  should be rotated later
              call cslp(pjtatr, xpmin, xpmax, rpjtatr)
!               sample recoil target  and set it in Rtgpatr
!               the same note as above.
              call cslp(tgpatr, xtmin, xtmax, rtgpatr)
!                       next should not be used.
!                    some dirty trick to make the strange evnet less
!                    (may not be needed)
!                  make target pt colinear with projectile Pt
!                  while keeping the magnitude as it is
!              c2=Rtgpatr.fm.p(1)**2 + Rtgpatr.fm.p(2)**2
!              den=sqrt(( Rpjtatr.fm.p(1)**2 +  Rpjtatr.fm.p(2)**2)/c2 )
!              Rtgpatr.fm.p(1) = Rpjtatr.fm.p(1)/den
!              Rtgpatr.fm.p(2) = Rpjtatr.fm.p(2)/den
!     If the following two call's were omitted and equivalent ones
!     were placed inside 'cslp',
!         Absoft compile fials to compile it; it shows
!/home01/kasahara/f/cosmos/sun/Particle/Event/Hncol/cs2lp.f -o cs2lp.o
! error on line 256 of /tmp/temp10493.f: synch error in intermediate code
!         This is not an  ordinary error.  Resolution is give by
!         putting a dummy line relating to rcord /ptcl/Rtgpart
!                rotate   recoils so that they are seen in
!                in a frame where Pjatr or Tgpatr is seen.
             call crot3vec(pjtatr%fm, rpjtatr%fm, rpjtatr%fm)
             call crot3vec(tgpatr%fm, rtgpatr%fm, rtgpatr%fm)
!               next is a dummy substitution to avoid stupid Absoft
!               compiler error.
! **          Rpjtatr = Rpjtatr
!                boost it to lab
             if(noferm) then
                rpjlab = rpjtatr
             else
                call cibst1(1, tglab, rpjtatr, rpjlab)
             endif
!                   boost to cms
             call cbst1(1, cmsp, rpjlab, rpjcms)
!                  energy libarated by projectile in cms
             dest1= pjcms%fm%p(4) - rpjcms%fm%p(4)
!
!                boost to lab
             call cibst1(1, pjlab, rtgpatr, rtglab)
!                   boost to cms
             call cbst1(1, cmsp, rtglab, rtgcms)
!                  energy libarated by target in cms
             dest2=tgcms%fm%p(4) - rtgcms%fm%p(4)
             if(dest1 .gt. maspic .or. dest2 .gt. maspic)  goto 5
             count = count + 1
             if( count .gt. maxtry) then
                icon =1
                goto 5
             endif
          enddo
    5     continue
!           form a missing mass particle
          missingp%fm%p(1) = - (rpjcms%fm%p(1) + rtgcms%fm%p(1))
          missingp%fm%p(2) = - (rpjcms%fm%p(2) + rtgcms%fm%p(2))
          missingp%fm%p(3) = - (rpjcms%fm%p(3) + rtgcms%fm%p(3))
          missingp%fm%p(4) = cmsp%mass - rpjcms%fm%p(4) - rtgcms%fm%p(4)
          missingp%mass = missingp%fm%p(4)**2
     *     -(missingp%fm%p(1)**2 + missingp%fm%p(2)**2 +
     *       missingp%fm%p(3)**2)
          if(missingp%mass .lt. maslimit2 ) then
               count = count + 1
               if(count .gt. maxtry)then
                  icon = 1
                  goto 10
               endif
          else
               missingp%mass = sqrt(missingp%mass)
               goto 10
          endif
      enddo
   10 continue

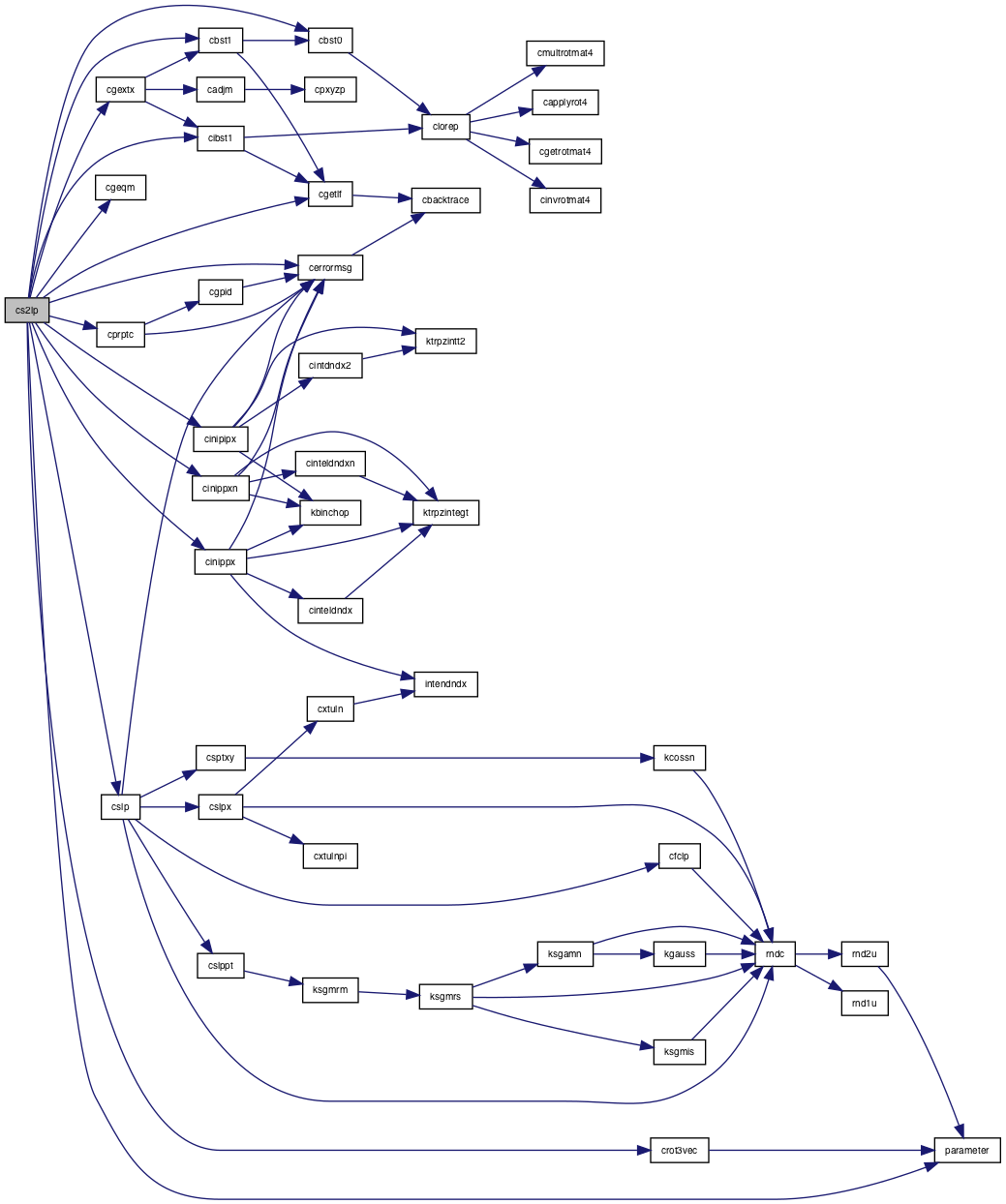

Here is the call graph for this function:

Here is the caller graph for this function:

cslp()

subroutine cslp	(	type(ptcl)	p,
		real*8	akmin,
		real*8	akmax,
		type(ptcl)	a
	)

Definition at line 252 of file cs2lp.f.

References cerrormsg(), cfclp(), cslppt(), cslpx(), csptxy(), rndc(), and true.

Referenced by cs2lp().

!           p:  type ptcl. Input.  Particle
!               given at the rest system of the counter ptcl.
!        akmin:  real*8. Input. min of x of the leading ptcl
!        akmax:  real*8. Input. max of x o//
!            a:  type ptcl. Output.  sampled leading ptcl.
!          Note that the momentum of "a" is defined in
!          a system whose z-axis is the direction of p.fm
!          so that you have to rotate it after calling this,
!          if p has non-zero x, y component of momentum.
!
        implicit none


#include  "Zptcl.h"
        type(ptcl):: p, a
        integer nc, icon
        real*8 xp, avpt, ptn, tmsq, u, akmin, akmax
        logical notfirst
!


        a = p
!
        nc=0
!       *** until loop***
        do while (.true.)
!            sample leading ptcl pt: avpt. output <pt>
!                                    ptn.  output sampled pt

           call cslppt(p, avpt,  ptn)


!            sample leading particle xp with  pt
           tmsq=ptn**2 + p%mass**2
           call cslpx(p, tmsq, akmin, akmax,  xp, notfirst, icon)


           if(icon .eq. 0 .and.  xp-akmin .lt. .2 ) then
!                  xp is small; reject some large pt
               if(ptn .gt. avpt) then
                   call rndc(u)
                   if(u .gt. avpt/ptn) then
                       icon=1
                   endif
               endif
           endif
           nc=nc+1
           if(icon .eq. 0 .or. nc .gt. 20) goto 5
        enddo
    5   continue
        if(nc .gt. 20) then
           call cerrormsg(' nc>20 in cslp', 0)
        endif
        a%fm%p(4)=p%fm%p(4)*xp
!           set pt tentatively in pt
        a%fm%p(3) = ptn
!           convert it to ptx, pty
        call csptxy(a,  1)
!               set pz
        a%fm%p(3) = sqrt(a%fm%p(4)**2 - a%mass**2 - ptn**2)
!         fix chacge after collision
        if(notfirst) then
!           keep the same charge if the 2nd,3rd coll. inside A.
!           a.charge = p.charge  ! not needed since a = p
        else
           call cfclp(p, xp, a)
        endif
!          this may be needed if crot3vec is not called
!          after cslp;
!        call crot3vec(p.fm, a.fm, a.fm)

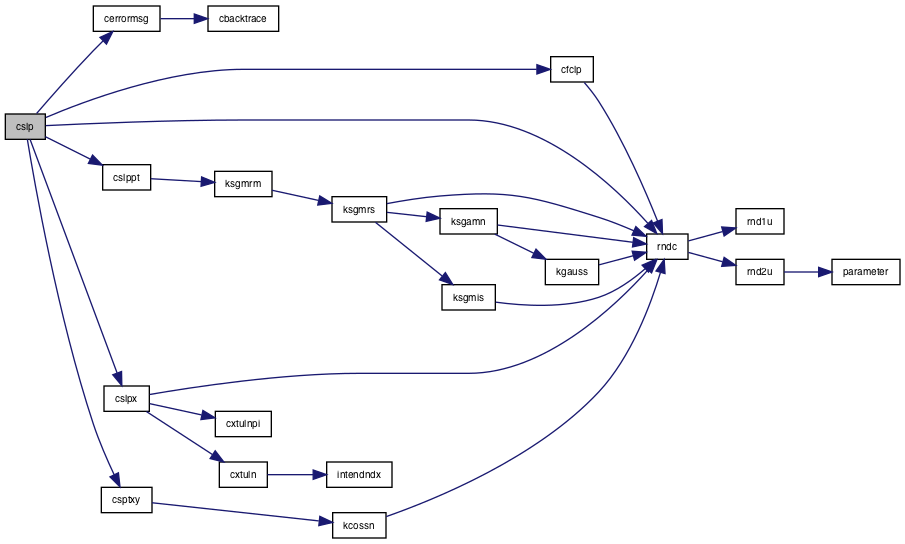

Here is the call graph for this function:

Here is the caller graph for this function:

cslppt()

subroutine cslppt	(	type(ptcl)	pj,
		real*8	avpt,
		real*8	ptn
	)

Definition at line 567 of file cs2lp.f.

References d, d0, and ksgmrm().

Referenced by cslp().

        implicit none
!
!       pj: strucutre /ptcl/. Input. Projectile particle at
!                                    the rest system of target.
!     avpt: real*8.  Output.  average pt at this energy.
!      ptn: real*8.  Output.  sampled pt in GeV.
!
!----       include  '../../Zptcl.h'
#include  "Zptcl.h"
!
       type(ptcl):: pj
       real*8 avpt, ptn, pw
!
      avpt=226.d-3* pj%fm%p(4)**0.1d0         ! energy is GeV

      pw=2.59d0/pj%fm%p(4)**0.1d0
!          pt**pw * epx(-pt)dpt  type
      call ksgmrm(pw, avpt,  ptn)

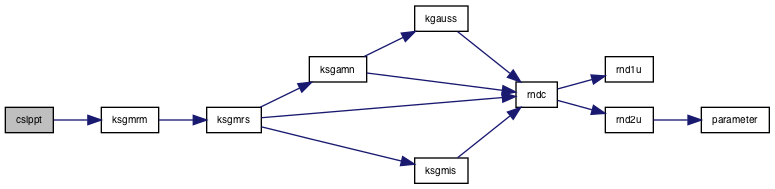

Here is the call graph for this function:

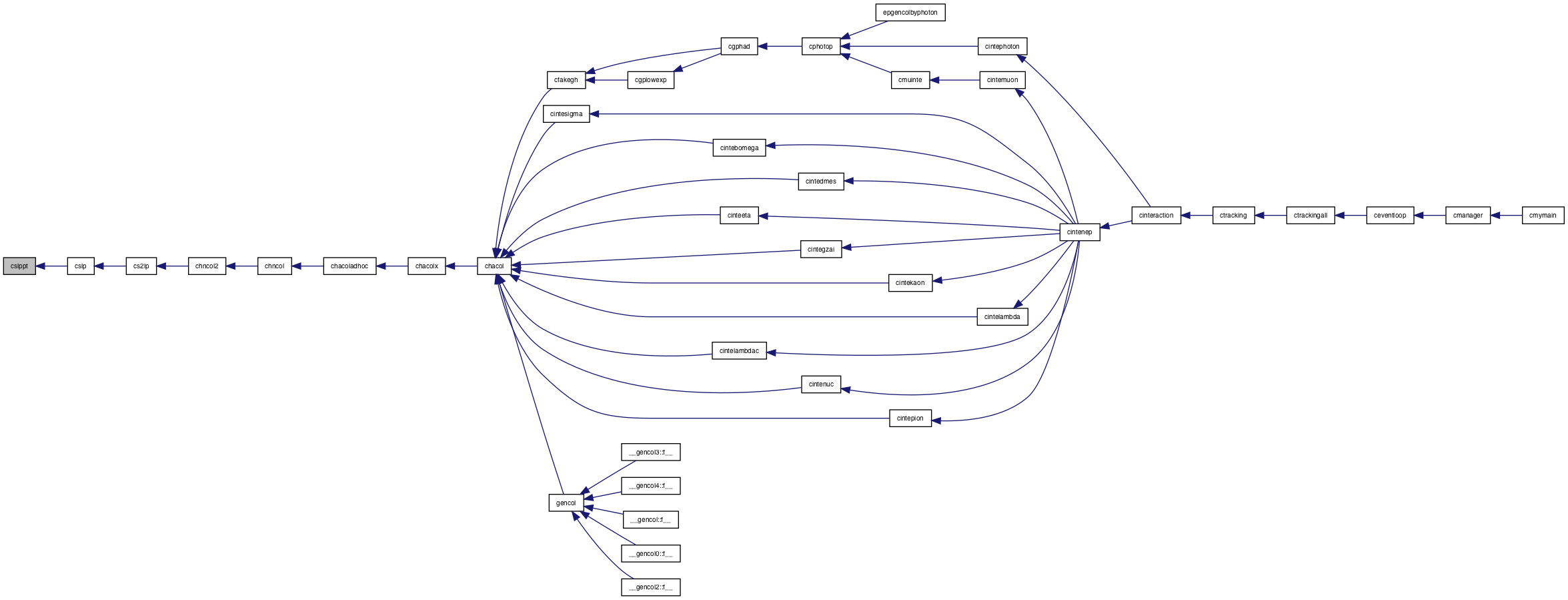

Here is the caller graph for this function:

cslpx()

subroutine cslpx	(	type(ptcl)	pj,
		real*8	tmsq,
		real*8	akmin,
		real*8	akmax,
		real*8	x,
		logical	notfirst,
		integer	icon
	)

Definition at line 465 of file cs2lp.f.

References cxtuln(), cxtulnpi(), dx, knuc, pipsx, ppsx, rndc(), and true.

Referenced by cslp().

!           sampling of x
!            pj: type ptcl. Input.
!          tmsq: input.incident transverse mass square after collision.
!         akmin: input. min x allowed
!         akmax: input. max x allowedn
!             x: output.  sampled x
!       notfirst: output.   becomes t if this is 2nd, 3rd coll. in A
!          icon:  0  x sampled
!                 1  x not sampled. kinematically impossible.
!    **** note ***  If the target is a nucleus and the collision is
!    2nd, 3rd , ...  times inside the nucleus, the x distribution is
!    changed to  x**SucPw dx to have smaller inelasticity.
!    (SucPw=1.5 is default;
!     this corressponds to alfa=2.5 to Date et al's paper.
!    (PRD1985,vol.32. 619)  This should be
!    managed by calling cslpx2
!
      implicit none
#include "Zcode.h"
#include  "Zptcl.h"
#include  "Zmass.h"
#include "Zcinippxc.h"
#include "Zevhnp.h"

       logical pnchgex
       common /zchgex/ pnchgex

       type(ptcl):: pj
       real*8 tmsq, x,  akmin, akmax
       real*8 umin, umax, temp1, temp2
       integer i, icon
       real*8 u, uc
       logical lessinela/.false./, makeless, notfirst
       save lessinela
!

         if(pj%fm%p(4)**2 .le. tmsq) then
             icon=1
         elseif(.not. lessinela) then
!             cxtuln(x0, ans) ; ans= integral of dn/dx from 0, x0
            if(pj%code .ne. knuc) then
               call cxtulnpi(akmin, umin)
               call cxtulnpi(akmax, umax)
            else
               call cxtuln(akmin, umin)
               call cxtuln(akmax, umax)
            endif
!                  uniform random number should be between
!                  umin and umax

            call rndc(u)
            u=(umax-umin)*u + umin
            i=u*nx +1
            if(pj%code .eq. knuc) then
!
               call rndc(uc)
               if(uc .lt. ceneuc) then
                  pnchgex= .true.
                  x=(ppsxn(i+1) - ppsxn(i))*nx*(u- (i-1)*dx)
     *              + ppsxn(i)
               else
                  x=(ppsx(i+1) - ppsx(i))*nx*(u- (i-1)*dx)
     *              + ppsx(i)
                  pnchgex= .false.
               endif
            else
               x=(pipsx(i+1) - pipsx(i))*nx*(u- (i-1)*dx)
     *              + pipsx(i)
            endif
         else
            call rndc(u)
            if(pj%code .ne. knuc) then
!                for mesons, make more inelastic
               temp1 = sucpw + 0.5
            else
               temp1 = sucpw + 1.
            endif
            temp2 = akmin**temp1
            x = ( (akmax**temp1 - temp2 )*u + temp2 )**(1./temp1)
         endif
         if((pj%fm%p(4)*x)**2 .le. tmsq) then
            icon=1
         else
            icon=0
         endif
         notfirst = lessinela
         return
!     ************ call this before 2nd, 3rd coll. inside nucleus
!                  with .true.  and  after that, call with .false.
      entry  cslpx2(makeless)
!     *************
         lessinela = makeless

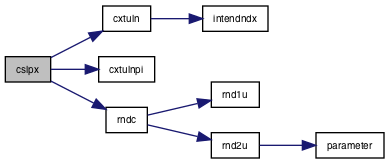

Here is the call graph for this function:

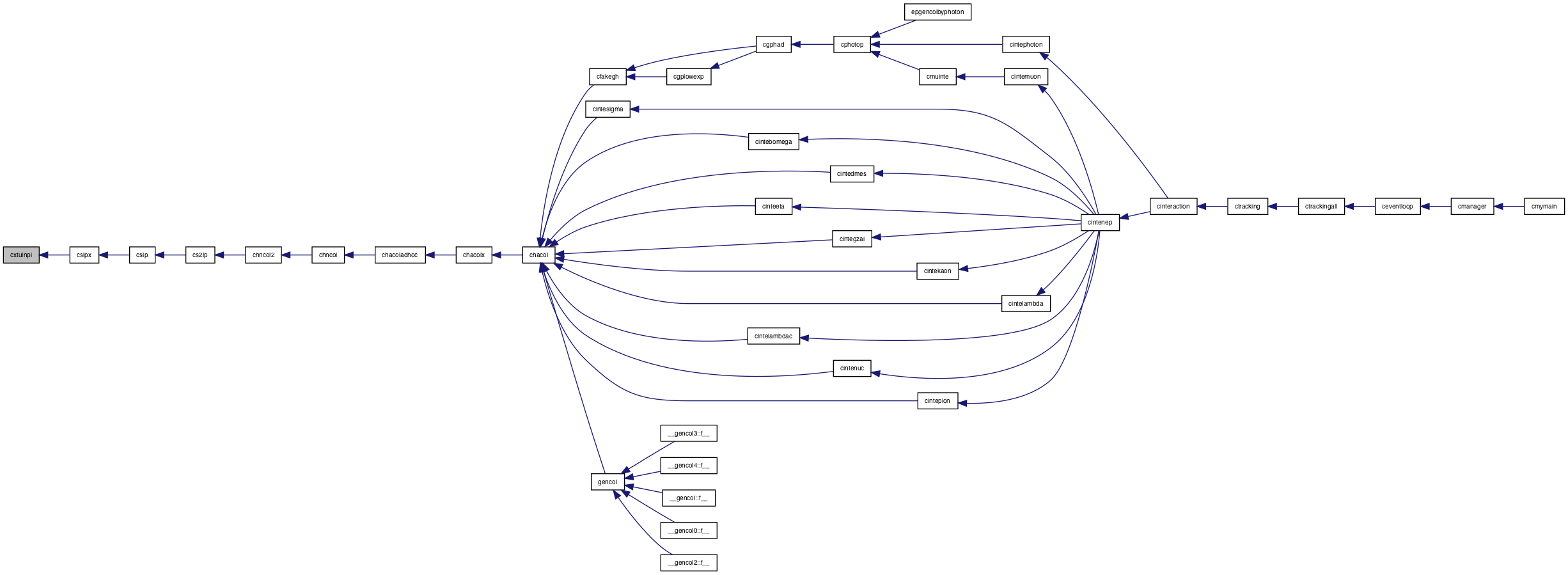

Here is the caller graph for this function:

cxtuln()

subroutine cxtuln	(	real*8	x,
		real*8	ux
	)

Definition at line 324 of file cs2lp.f.

References intendndx(), and n.

Referenced by cslpx().

!           get normalized integral (from 0 to x) for given x
!           of leading ptcl (pp-->p)
!           u for x=0 to 1 step .01
         implicit none
         integer i
         real*8 x, ux

#include "Zcinippxc.h"

!
         i=x*nx+1.

         if(i .eq. n) then
             ux=1.
         else
!            ux=(intendndx(i+1)-intendndx(i))*nx * (x - (i-1)*dx)
!             + intedndx(i)
             ux=(intendndx(i+1)-intendndx(i))* (x*nx - i+1) +
     *           intendndx(i)
         endif

Here is the call graph for this function:

Here is the caller graph for this function:

cxtulnpi()

subroutine cxtulnpi	(	real*8	x,
		real*8	ux
	)

Definition at line 346 of file cs2lp.f.

References intendndx2, and n.

Referenced by cslpx().

!           get normalized integral (from 0 to x) for given x
!           of leading pi (pp-->p)
!           u for x=0 to 1 step .01
         implicit none
         integer i
         real*8 x, ux

#include "Zcinippxc.h"

!
         i=x*nx+1.

         if(i .eq. n) then
             ux=1.
         else
             ux=(intendndx2(i+1)-intendndx2(i))* (x*nx - i+1) +
     *           intendndx2(i)
         endif

Here is the caller graph for this function:
